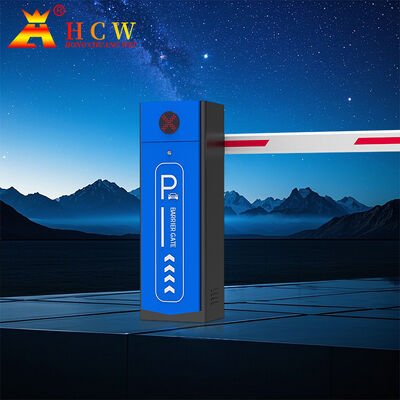

HCW 24V Adjustable Arm Speed Pole Barrier Gate with 2-6m Boom Length for High Safety Parking Control
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE/ISO 9001 |
| Model Number | CW238 |
| Minimum Order Quantity | 2 pieces |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 200 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DC Barrier Gate | Motor | Brushless |
|---|---|---|---|
| Working Voltage | 24V | Arm Speed | 1.5-6s |
| Boom Length | 2-6m | Arm Direction | Left,right |

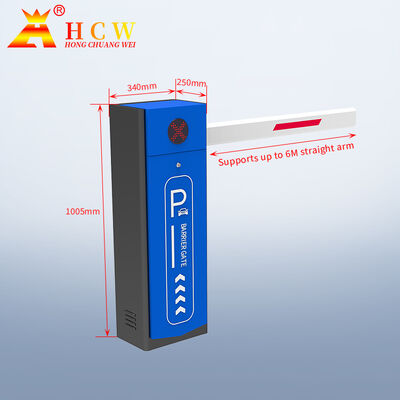

| IP Grade | IP54 | Size Of Housing | 340*250*1005mm |
| Highlight | Adjustable Arm Speed Pole Barrier Gate,24V Barrier Gate,2-6m Boom Length Parking Barrier Gate |
||
Product Description
HCW High Safety Pole Barrier Gate with DC Brushless Motor and Wireless Remote Control
Product Introduction
The fifth-generation DC brushless movement barrier gate (CW238-1) features advanced digital control technology for intelligent operation management. This high-performance gate offers wireless remote control functionality for lifting, lowering, and stopping operations, along with manual button control options.

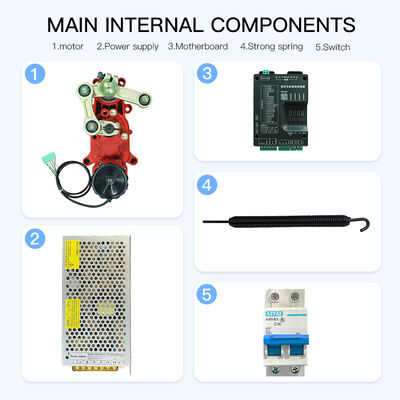

The innovative one-piece movement design integrates the frame, reducer, and transmission mechanism, minimizing vibration and enhancing operational precision. The system supports extension spring adjustment for rod length adaptation, delivering high safety, intelligence, and user-friendly operation.

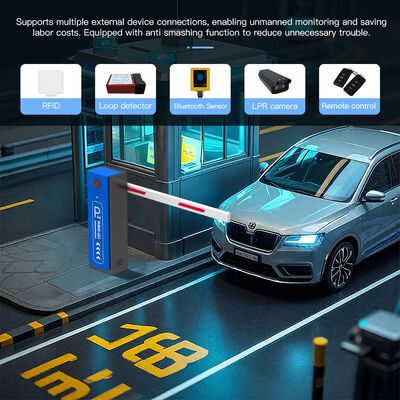

The chassis features an electrostatic dust high-temperature baked paint finish (180°C-250°C) for superior corrosion resistance, color retention, and durability. The gate can be equipped with multiple anti-smashing systems including ground sensing, pressure waves, and infrared protection.
Key Features
- 5 million cycle lifetime DC brushless motor with adjustable arm speed
- Digital control technology for intelligent operation monitoring
- Wireless remote control for easy operation
- One-piece movement design for reduced vibration
- High-temperature baked paint finish for durability
- Multiple anti-smashing protection options available
- Adaptable to various pole lengths and configurations
Technical Specifications
| Product model | CW238 |
|---|---|
| Input voltage | AC220V, 110V±10%, 50Hz±10% |
| Working humidity | 5%-95% |
| Operating temperature | -40℃ to +80℃ |
| Fixed direction | Interchangeable left and right |

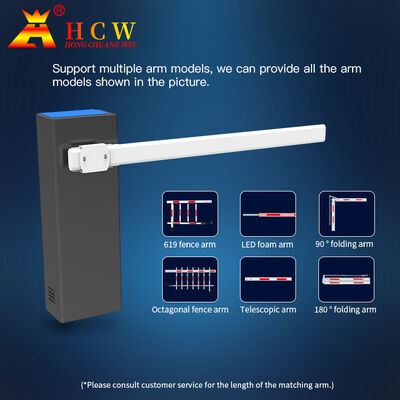

| Length of pole | ≤ 6m straight pole, ≤ 6m curved pole, ≤ 5.0m two fences, ≤ 4.0m three fences |
| Motor | Brushless |
| Motor Power | 150W |

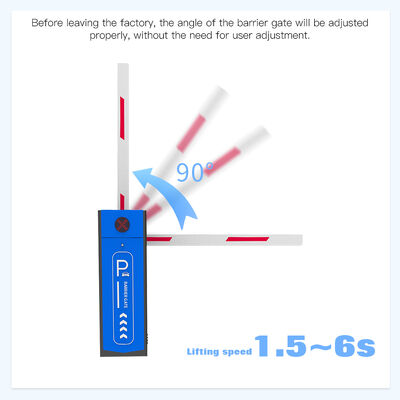

| Rise and fall time | 1.5 seconds movement (1.5-3 seconds adjustable), 3 seconds movement (4-6 seconds adjustable) |
| Anti-smashing function | Rebound to open the gate in case of resistance |
Frequently Asked Questions
What are the electrical requirements for your barrier gate?
We use 110-240V automatic switching power supply, making it suitable for worldwide use.
What type of base is required for installation?
Barrier gates require concrete or a strong base for installation. Complete installation information including basic specifications is provided for each model.
Can you provide a detailed floor plan of the gate model?
We can send detailed drawings of all gate models by email or fax upon request.
What is the warranty of your product?
All products come with at least one year warranty and long-term maintenance support.
What is your packaging method?
Products are protected with film or pearl cotton, packed in neutral cartons, then secured in standard export wooden boxes.
What are your delivery terms?
We offer EXW, FOB, CFR, and CIF delivery options.
What if I need customized items?
We provide OEM and ODM services, including sample production and technical drawings.
What is your sample policy?
Samples are available when in stock, with customers responsible for sample and courier fees.
Do you test all the goods before shipping?
Yes, we conduct 100% testing before delivery and provide test videos for customer confirmation.
