HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
150W Motor Power Parking Barrier Gate
,Fast Lifting Speed Boom Barrier Gate
,Stable Barrier Movement Automatic Barrier Gate
- Digital control technology monitors the entire operation process
- Wireless remote control for gate operation (lift, drop, stop)
- Manual button operation available
- Supports brand OEM processing
- Exported to international markets
| Parameter | Value |
|---|---|
| Product Name | CW219 |
| Motor | DC brushless |
| Power Supply | DC24V 150w |
| Material | Cold Rolled Steel |
| Surface Treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

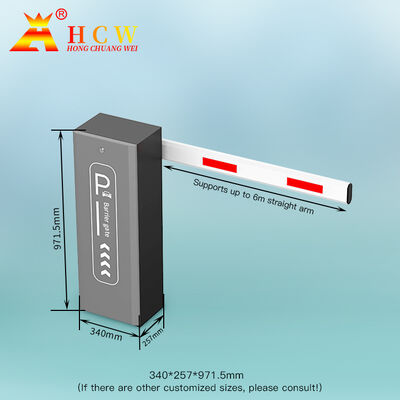

| Size | 340*245*971.5mm |
| Working Environment | -40℃~+80℃ |
| Available Poles | Straight arm, folding arm, fence boom, Foam rod |
| Support Length | Straight arm≤6m, fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift/Drop Time | 1~6s (Adjustable) |
| Noise Level | <50db |
| Protection Features | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection |
- Wireless remote control operation (rise, drop, stop)
- Operates reliably in extreme temperatures (-40℃ to +80℃)

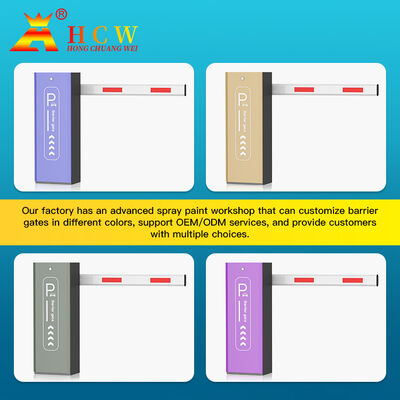

- Customizable colors and sizes available
- Anti-collision function protects the pole from damage

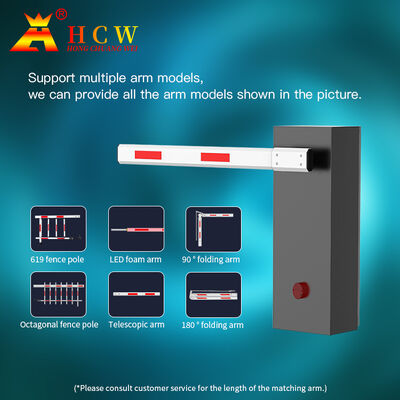

- Four pole options: Straight, fence, telescopic, and 90° folding

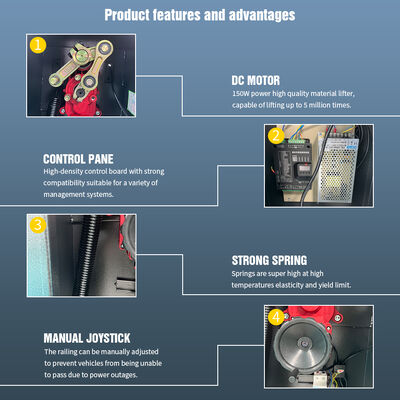

- High-quality material lifter with 5 million cycle capability
- High-temperature resistant springs with superior elasticity

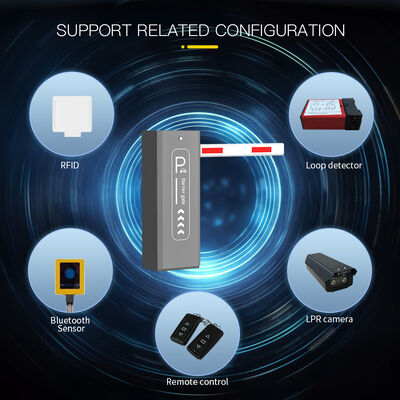

- High-density control board compatible with various management systems
- Adjustable operating speed (1.5s to 6s) based on boom length
- Manual adjustment capability for power outage situations
