HCW Full Automatic Parking System Straight Boom Barrier , 1-6m Arm RFID Boom Barrier Gate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Arm Length | 1-6M |
|---|---|---|---|
| Material | Cold Rolled Plate | Size | 340*257*971.5mm |
| Supply Voltage | AC 220V ±10% 50/60Hz | Motor Type | DC Brushless Motor |
| Speed | 3-6S Adjustable | Rated/peak Current | 8A / 30A |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared | Type Of Arm | Straight/Folding/Fence/LED Foam/Telescopic Arms |
| Highlight | RFID Boom Barrier Gate,Straight Boom Barrier Gate,Parking System Straight Boom Barrier |
||
Product Description
HCW Full Automatic Parking System Straight Boom Barrier With 1-6m Arm RFID Boom Barrier Gate
Product Introduction
This boom barrier ensures robust performance in diverse environments. With a compact base size of 340*257*971.5mm and adjustable arm lengths ranging from 1 to 6 meters, the HCW barrier gate adapts seamlessly to parking lots, toll stations, or restricted entry points. Powered by an energy-efficient DC brushless motor and AC 220V ±10% voltage compatibility.The boom barrier integrates advanced safety features including anti-collision rebound, loop detectors, and infrared sensors to prevent accidents and ensure uninterrupted traffic flow. Available in multiple arm configurations – straight, folding, fence-style, LED foam, or telescopic arms – this barrier gate combines versatility with visibility. Operating reliably in 5%-95% humidity conditions, the HCW boom barrier redefines security and efficiency for modern access management systems.
Specification
| Brand name | HCW |
| Material | Cold rolled plate |
| Size | 340*257*971.5mm |
| Arm Length | 1-6M |
| Supply voltage | AC 220V ±10% 50/60Hz |
| Motor Type | DC Brushless Motor |
| Speed | 3-6S adjustable |
| Rated/peak current | 8A / 30A |
| Humidity | 5%-95% |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared |

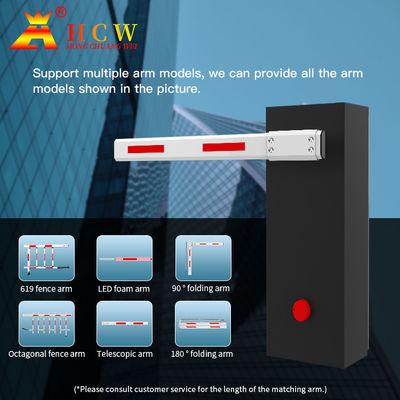

| Type of arm | Straight/Folding/Fence/LED Foam/Telescopic arms |
Advantages
1.Enhanced Stability & Precision: The boom barrier utilizes DC brushless control technology, enabling adjustable switching speeds (3-6S) and minimizing jitter for ultra-smooth arm movement, ensuring reliable operation in high-traffic environments.
2.Voltage-Independent Durability: With a 24V DC brushless motor, this barrier gate remains unaffected by unstable local voltages, while its aluminum alloy die-casting design ensures robust mechanical strength, superior heat dissipation, and millions of maintenance-free cycles.
3.Intelligent Control Integration: Featuring an industrial-grade controller, the boom barrier supports multi-functional inputs (open/close/stop/loop detector/anti-smash) and dry contact outputs, along with a user-friendly digital display for simplified debugging and parameter adjustments.
4.Advanced Safety & Automation: Equipped with infrared detection and radar compatibility, the barrier gate delivers anti-smash protection (with external power) and supports unattended auto-operation, switch counting, and remote control via RS232/RS485 (customizable).
5.Versatile Adaptability: The boom barrier’s modular design allows seamless integration with remote controls, programmable digital menus, and optional accessories (e.g., LED foam arms), making it ideal for diverse applications like parking systems or secure facilities.
