HCW Boom Barrier Gate Arm Straight Automatic Access Control For Outdoor Underground Parking Lots
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Product Model | CW203 |
|---|---|---|---|
| Chassis Material | Cold Rolled Plate | Arm Length | 1-6 Meters |
| Arm Material | Aluminum/foam | Motor Type | DC Brushless Motor |
| Speed | 3-6S Adjustable | Product Size | 340*280*1045mm |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared | Arm Type | Straight/Folding/Fence/LED Foam/Telescopic Arms |
| Highlight | Automatic Access Control Boom Barrier Gate,Arm Straight Boom Barrier Gate,Underground Parking Lots Barrier Gate |
||
Product Description

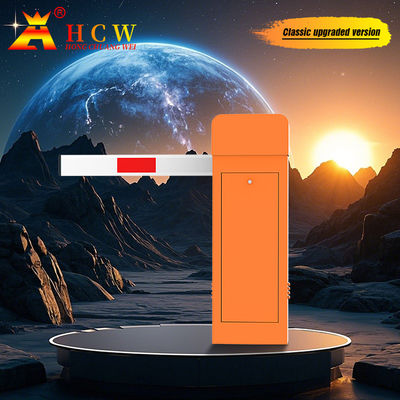

HCW Boom Barrier Gate Arm Straight Automatic Access Control For Outdoor Underground Parking Lots
Product Introduction
The CW203 barrier gate is a durable boom barrier designed for efficient traffic control. Operating on AC220V±10% (50Hz), it withstands -25℃ to 70℃ and 5%-95% humidity, ensuring reliability in harsh conditions. Its bidirectional design allows flexible installation.Equipped with a brushless DC motor (80W/120W), this boom barrier offers fast 3-second or steady 6-second lifting cycles. It supports multiple arm types for versatile applications.The barrier gate features anti-crush protection, reversing instantly upon resistance to prevent accidents. Compact yet powerful, the CW203 boom barrier is ideal for parking, tolls, and secure zones.
Parameter
| Brand name | HCW |
| Product model | CW 203 |
| Chassis material | Cold rolled plate |
| Arm length | 1-6 meters |
| Arm material | Aluminum/foam |
| Motor type | DC Brushless Motor |
| Speed | 3-6S adjustable |

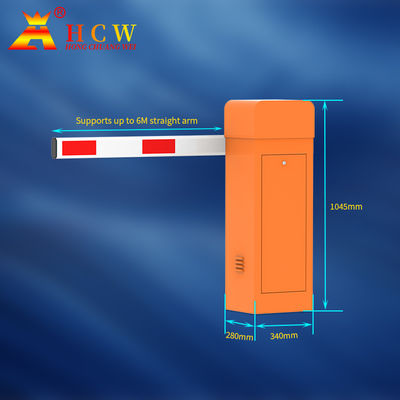

| Product size | 340*280*1045mm |
| Warranty | 1 Year |
| Humidity | 5% - 95% |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared |

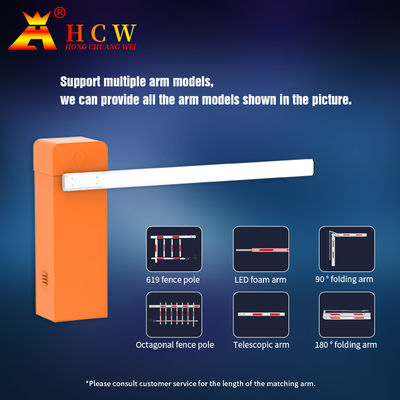

| Arm type | Straight/Folding/Fence/LED Foam/Telescopic arms |
Advantages
1.Smart & Simplified Operation
The CW203 barrier gate supports intelligent management via wireless remote control (lift, lower, stop) or manual buttons, enabling effortless user interaction and seamless integration into modern access systems.
2.Patented Integrated Core Mechanism
Its one-piece design combines the frame, reducer, and transmission system, minimizing vibration and enhancing operational precision. This ensures stable, reliable performance and extends the boom barrier’s lifespan.
3.Adaptable & Secure Arm Adjustment
Equipped with a tension spring system, it safely adapts to varying arm lengths, delivering high safety, flexibility, and user-centric customization.
4.Durable & Aesthetic Housing
Featuring electrostatic high-temperature powder coating (180°C–250°C), the housing resists corrosion, fading, and peeling while maintaining a sleek, modern appearance for years with minimal maintenance.
5.Multi-Layered Anti-Crash Protection

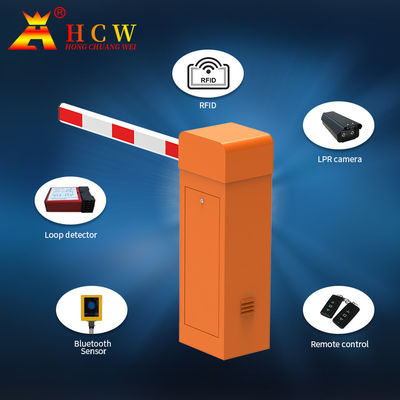

The barrier gate supports customizable safety systems, including ground loops, pressure sensors, and infrared detectors, ensuring 360° vehicle and pedestrian protection during operation.
