HCW Automatic Security Electric Gate Lpr Parking Gate System Flood Barrier With Led Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Material | Cold Rolled Plate |
|---|---|---|---|
| Product Size | 340*240*952mm | Working Environment | -40℃~+80℃ |
| Motor | Servo Motor | Supply Voltage | AC 220V ±10% 50Hz |
| Input Voltage | 24V | Weight | 38kg |
| Rated/peak Current | 10A / 30A | Warranty | 1 Year |
| Highlight | Lpr Parking Gate System Flood Barrier,Automatic Security Electric Gate,Led Light Lpr Parking Gate System |
||
Product Description

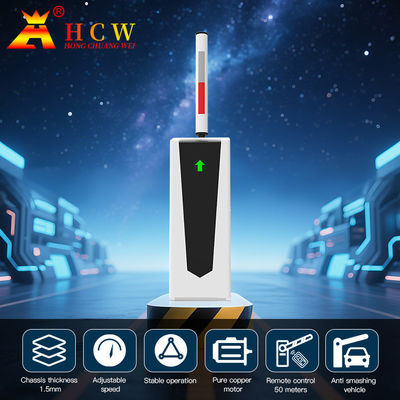

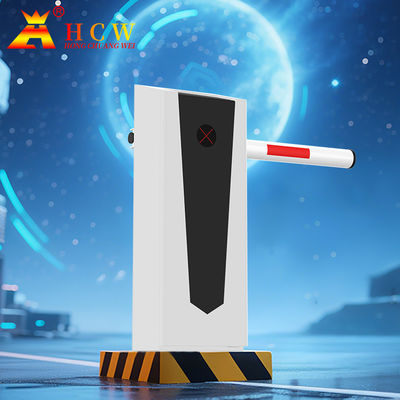

HCW Automatic Security Electric Gate Lpr Parking Gate System Flood Barrier With Led Light
Product Introduction
The CW248 servo motor barrier gate is a seventh-generation model designed for rapid, stable vehicle access control. Combining market-leading speed and reliability, this barrier gate features a sleek design with electrostatic dust-proof coating and high-temperature baking paint (180°C–250°C), ensuring corrosion resistance, fade resistance, durability, and low maintenance.
Utilizing digital control technology, barrier gate enables intelligent monitoring and simplified operation via wireless remote control or manual buttons. Automatic barrier gate integrated motor-reducer-transmission structure minimizes vibrations and enhances precision. The system supports multiple safety mechanisms, including ground loop sensors, pressure wave detectors, and infrared anti-crash systems.
Parameter
| Supply voltage | AC 220V ±10% 50Hz |
| Card reading signal | Switch |
| Motor | Servo motor |
| Input voltage | 24V |
| Rated/peak current | 10A / 30A |

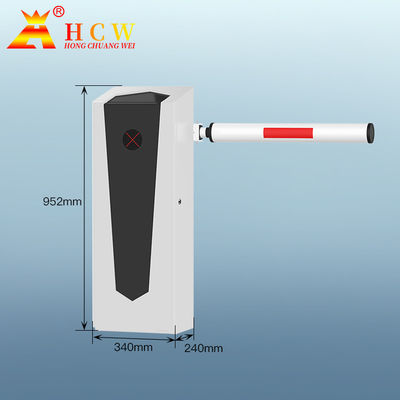

| Product Size | 340*240*952mm |
| Material | Cold rolled plate |
| Working environment | -40℃~+80℃ |
| Lift and drop time | 1S~3S / 3S~6S |
| Anti-smashing car function | Rebound when encountering resistance and open the gate |
Advantages
1. High-Efficiency DC Servo Motor
-
Compact size with high torque for rapid, smooth (lifting/lowering).
-
24V low-voltage operation unaffected by unstable power supply.
-
Acceleration/deceleration buffering ensures vibration-free movement.
-
2. Compact & Durable Design
-
Small footprint with sleek, modern aesthetics.
-
Aluminum alloy die-cast structure for heat dissipation, mechanical strength, and corrosion resistance.
-
Electrostatic coating and high-temperature baking ensure fade-proof, maintenance-friendly durability.
-
-
3. Intelligent Digital Control:
-
Adjustable switch speed and reduced jitter via servo technology.
-
User-friendly digital menu for easy parameter adjustments and maintenance.
-
Industrial-grade controller supports multiple input/output signals (open/close/stop, anti-crash).
-
-
4. Multi-Layer Safety Protection
-
Infrared and radar anti-crash detection (requires external power).
-
Pressure wave and ground loop sensors for collision prevention.
-
Color-coded indicator lights (red/green) for clear operational status.
-
5. Versatile Integration & Automation
- Supports RS232/RS485 communication for remote management (customizable).
-
Auto-closing and gate-opening count functions for unmanned operation.
-
Compatible with wireless remote control for manual override.
-
