Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW423
Minimum Order Quantity 2
Price USD300~500 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Passing Speed 20 Person/minute Protection Class IP55
Weight 65KG Motor Brushless Motor
Dimension 1200 * 280 * 990mm IP Protection Level 42
Net Weight 50kg Passing Direction Single Directional / Bi-directional
High Light

20 person/minute Swing Turnstile Gate


IP55 swing Turnstile gate


Bidirectional turnstile swing gate

Leave a Message
Product Description

Intelligent brushless anti-collision swing gate Non-motor vehicle anti-collision


product description:
◇ The shell frame is made of high-quality stainless steel, and all internal components are treated with anti-rust and anti-corrosion, which is durable;
◇ Using high-quality brushless DC motor to drive the swing arm, it runs smoothly, without shaking and with low noise;
◇ The standard model can accurately detect illegal passage, anti-pinch, anti-collision and direction discrimination through more than 2 pairs of military-grade high-performance infrared detectors (deluxe 4 pairs and above).
◇ By default, Baowei intelligent swing gate consists of two single movements and one double movement to form a group of double channels, and can also be customized as two single movements to form a group of single channels, or two single movements and several double movements. A set of multiple channels.
◇ The device organically integrates mechanical, electronic, microprocessor control and various identification technologies, which is convenient for the use of IC cards, ID cards, barcode cards, fingerprints and other card-reading and identification devices. Or various identification system equipment and the use of reliable safety protection devices, alarm devices, direction indicators, etc., to coordinate the realization of intelligent control and management of channels.

Structural parameters:
◇ Box material: 304 stainless steel (default) / 316 stainless steel (optional)
◇ Box size: 1200×280×1000(mm) (can be customized)

◇ Standard appearance: 3 against strong light infrared
◇ Steel plate thickness: cover 1.5mm body 1.2mm (default) / 2.0mm (optional)
◇ Surface treatment: brushed (default) // paint (optional, color can be customized)
◇ Swing arm material: stainless steel (default) / plexiglass (optional)
◇ Channel width (split): 1150mm (default) / 1650mm (maximum)

technical parameter:
◇ Power supply voltage: AC 220V
◇ Working voltage: DC 24V
◇ Operating power consumption: 60W
◇ Standby power consumption: 15W
◇ Mechanical movement: non-destructive silent anti-collision movement
◇ Drive motor: DC brushless motor
◇ Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
◇ Communication interface: RS485 standard
◇ Passing speed: 30-40 people/min
◇ Working temperature: -30℃~ 80℃
◇ Relative humidity: 0 ~ 95% (non-condensing)
◇ Working environment: indoor/outdoor (recommended to add awning)
◇ Average trouble-free operation times: 5 million times
◇ Gate opening and closing time: 0.5 seconds
◇ Time required to enter the traffic state after power on: 3 seconds
◇ Automatic reset time after failure: 5 seconds
◇ Waterproof, sunscreen and dustproof design: system level IP41 / electrical part IP54


Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA

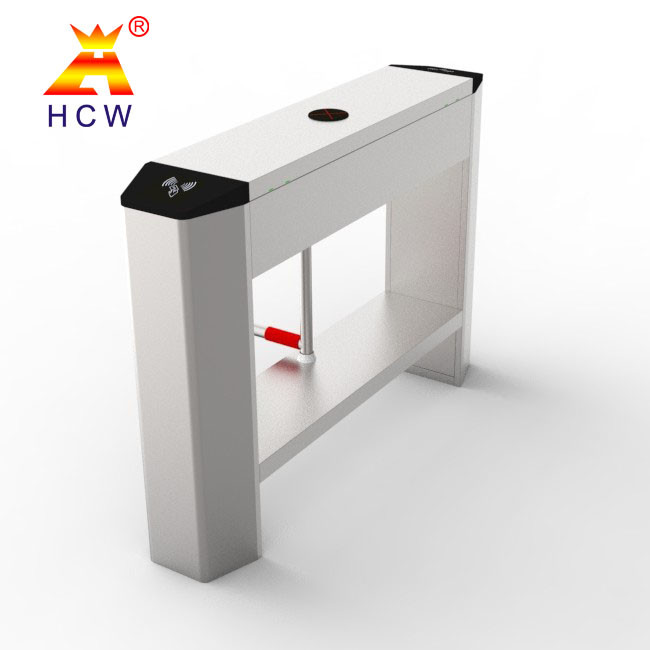

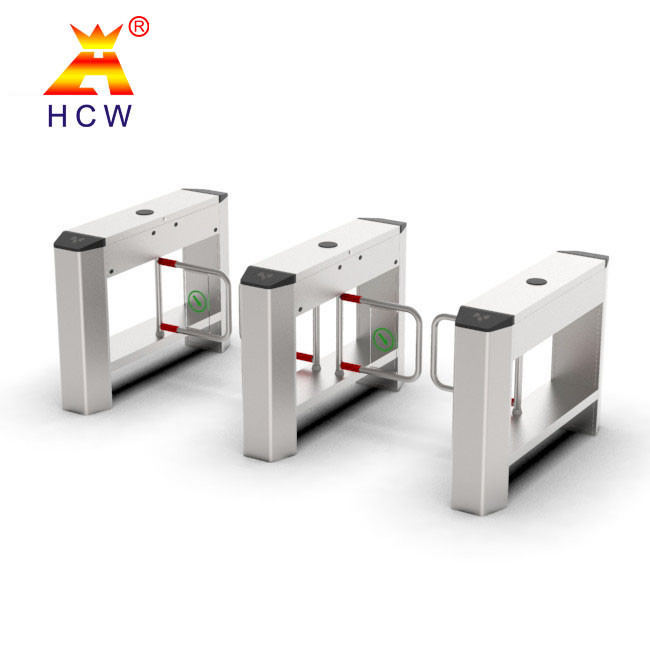

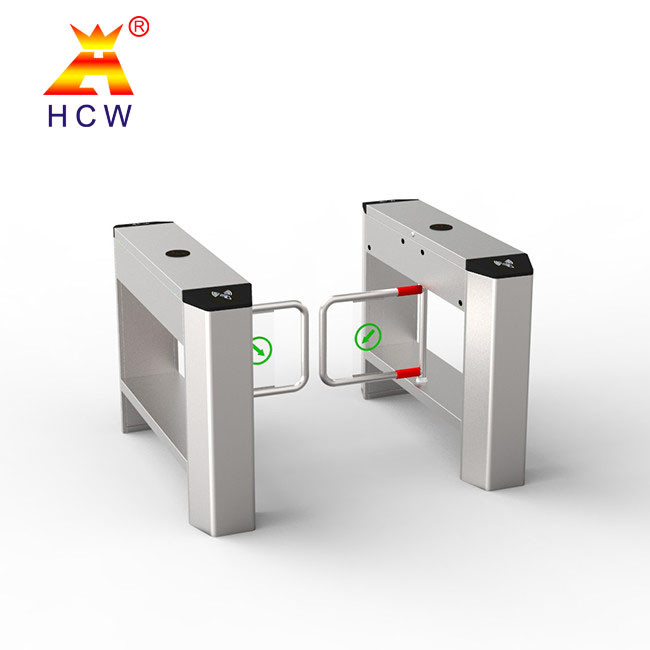

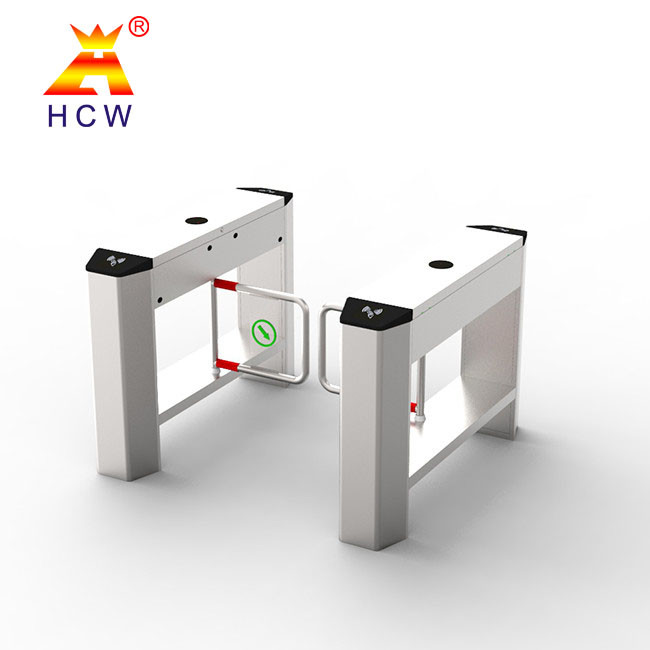

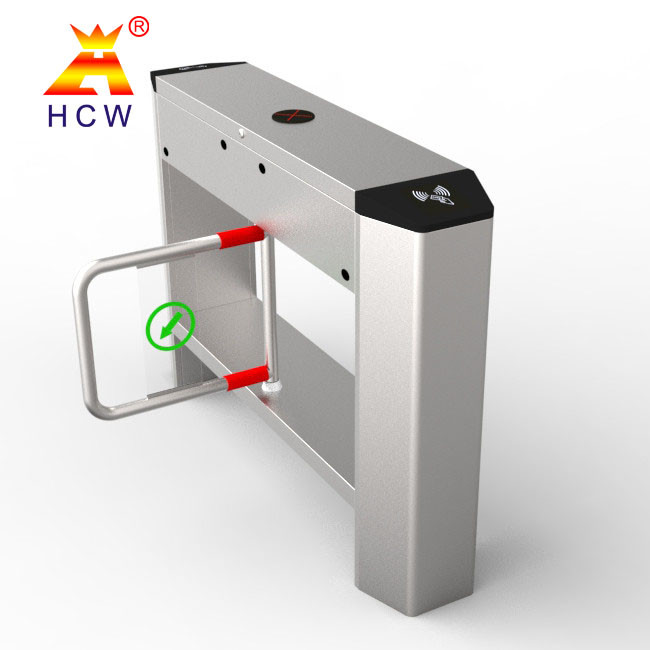

Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional 0Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional 1Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional 2Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional 3Intelligent Brushless Motor Swing Turnstile Gate Anti Collision Bidirectional 4
