SS304 Entrance Face Recognition Turnstile Pedestrian Security Turnstiles

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW423
Minimum Order Quantity 2
Price USD280~480 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Life Time 5 Millions Operating Weight 45kg
Communication Port RS485/RS232 Communication Dimension 1500*100*1000
Thickness 1.5mm Usage Subway Station Mall
Power Supply AC100-240V Passing Direction Single Directional / Bi-directional
High Light

SS304 Entrance Face Recognition Turnstile


RS232 Face Recognition Turnstile


Face Recognition Pedestrian Security Turnstiles

Leave a Message
Product Description

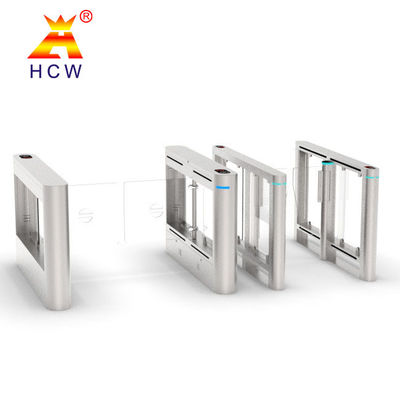

Face recognition system at the entrance of pedestrian passage turnstile


Intelligent swing gate is an intelligent channel management equipment that has been carefully developed, developed and produced for many years. It is a high-tech product mainly for intelligent management of personnel channels. The equipment organically integrates mechanical, electronic, microprocessor control and various identification technologies. The LED counting display interface, coordinated to realize the intelligent control and management of the channel, etc.
Standard product technical parameters
○Structure: frame structure/stainless steel housing
○ Chassis material: domestic standard 304 stainless steel
○Working voltage: AC220±10%V 50±10%HZ
○Drive motor: DC24V DC brush motor
○ Dimensions: 1550 length * 190 width * 980 height (MM)
○ Swing arm length: 300-530mm outside the chassis
○ Swing arm transmission angle: 180 degrees
○ Swing direction: one-way or two-way
○Working environment: indoor and outdoor (shade) -10℃~70℃ Relative humidity: ≤90%, no condensation
○Gate opening and closing time: 1 second
○Passing speed: 40 people/min (normally open), 25-30 people/min (normally closed)
○The time required to enter the traffic state after power on: 3 seconds
○Auto reset time after failure: 10 seconds
○Normal service life: 3 million times
○ Communication interface: standard RS485 interface, distance ≤1200 meters
○Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
●Standard product features
1. Through the built-in small button on the main control board, the running status of the programmable device.
2. Anti-pinch and anti-collision functions, when the swing arm encounters resistance during the reset process, the motor will automatically stop working within the specified time, the default
Reset again after a delay (until reset), with a small force (≤2Kg).
3. Illegal intrusion, tailgating alarm, reverse intrusion gate will automatically close.
4. With anti-shock function, the swing arm will be automatically locked when no signal to open the gate is received.
5. The swing arm has an anti-collision protection function. When the gate is closed, if the swing arm is collided by an external force, the swing arm will open to prevent the mechanical
The transmission part is damaged.
6. The swing arm can be adjusted synchronously (for double swing).
7. It has an automatic reset function. After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's current pass.
The reset time is adjustable from 1S to 60S (the default time of the system is 10S), and the channel is automatically opened after power failure (in line with fire protection requirements)
request), the power-on channel is automatically closed.
8. Infrared induction reset function (optional 4 pairs or 6 pairs of infrared).
9. Infrared induction anti-pinch function (4 pairs of infrared).
10. It can be connected with various equipment such as access control system, consumption system, electronic ticket system, biometric identification system, electrostatic tester and so on.
11. One-way, two-way pendulum function, one-way or two-way control personnel entry and exit, infrared sensor entry and exit channels.
12. Remote control and management can be realized directly through the management computer.
13. Strobe alarm light prompts, which can facilitate the on-site management personnel to quickly and accurately find abnormal channels.
●Extensible function
1. LED count display function.
2. The chassis is lengthened, the swing arm is lengthened, etc.
3. Infrared logic judgment function (optional 8 pairs or 10 pairs of infrared).
4. Pedestrian passage can be voice prompt function.
5. Normally open or normally closed channel adjustment to meet the requirements of different venues.
6. Sound and light alarm prompt function.


Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA
