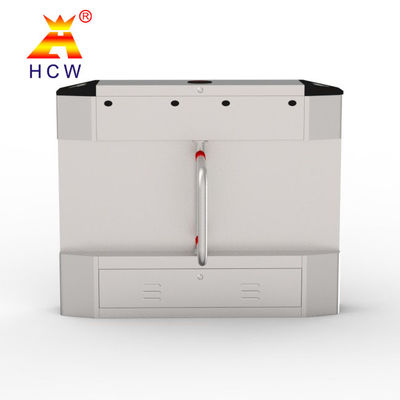

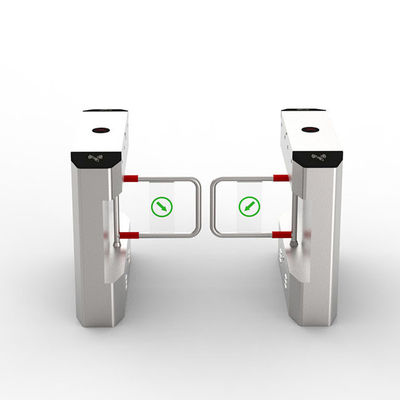

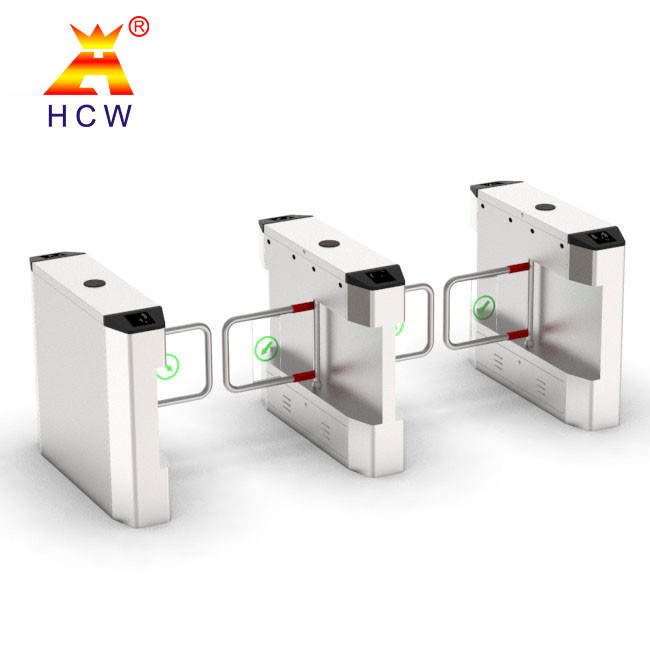

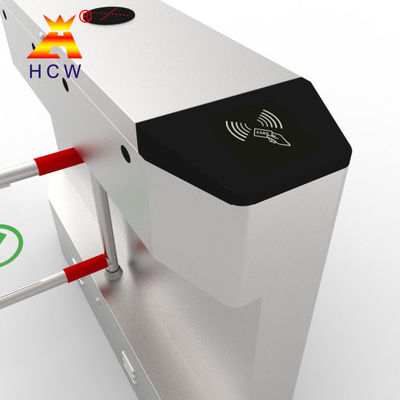

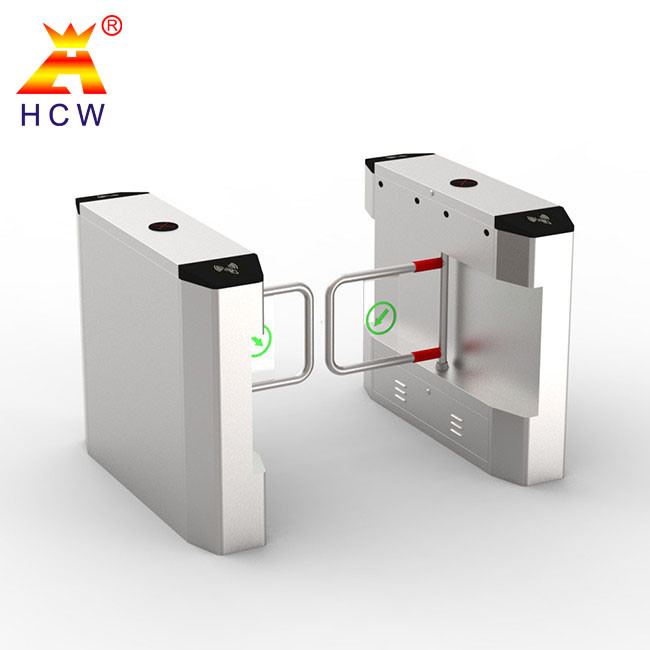

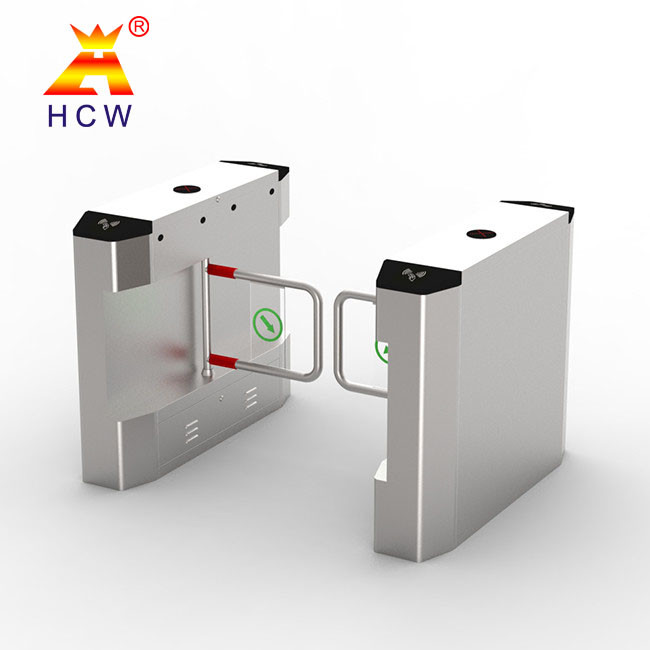

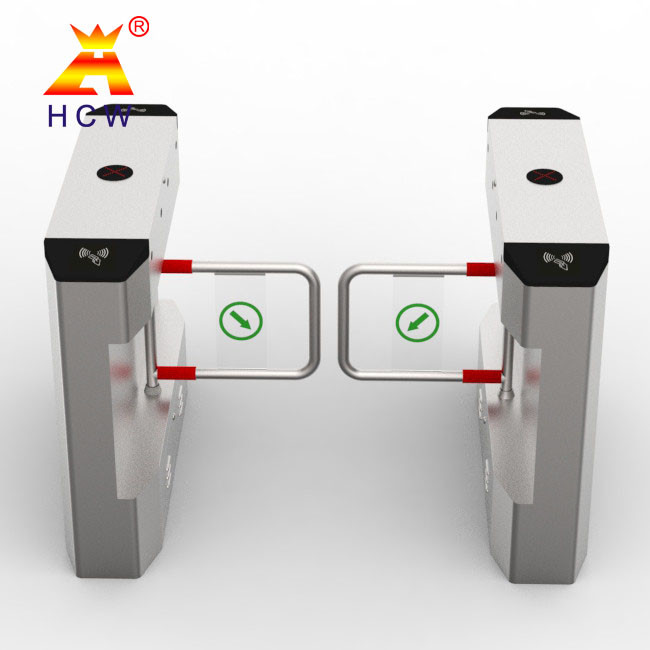

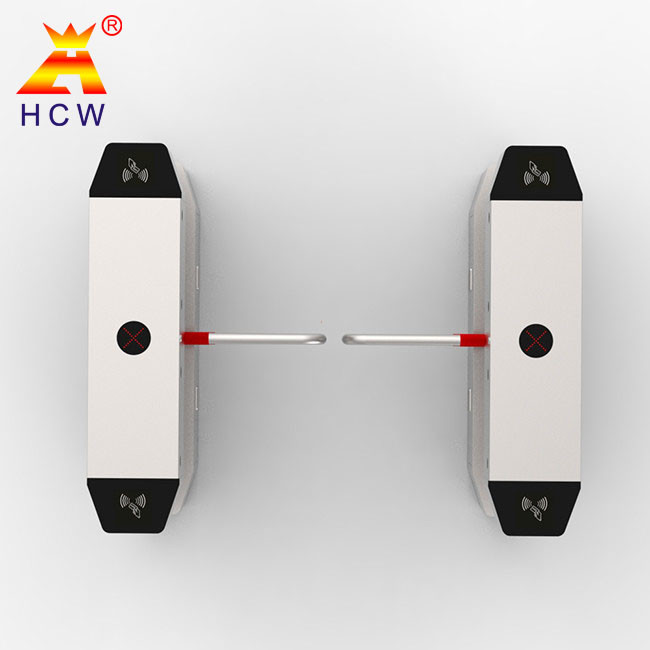

Swiping Card Speed Gate Turnstile Two Way Face Recognition Small Swing Turnstile Gate

Speed gate swiping card two-way face recognition small swing turnstile

Specifications:
1. Chassis size: 1200L*280W*980H/380L*280W*980H (MM) can be customized
2. Swing arm length: 600mm (standard), which can be lengthened or shortened appropriately
3. Read and write methods: ID card, IC card, magnetic card, bar code meter, etc.
4. Swing arm transmission angle: 180 degrees
5. Chassis material: SUS304 stainless steel / paint
6. Access voltage: AC220±10V, 50HZ
7. Drive motor: DC motor 30W/24V
8. LED indicator: 1-3
9. Card reading window: 1-2
10. Traffic speed: 40 people/min (normally open)
11. Gate opening and closing time: 1-2 seconds
12. Time required to enter the traffic state after power on: 3 seconds
13. Automatic reset time after failure: 10 seconds
14. Working environment: indoor and outdoor
15. Working temperature: -40℃—80℃
16. Adapt to humidity: 5%-90%

function:
1. Embedded motherboard design, a variety of functional modules are perfect
2.can be offline, network operation
3. Self-reported fault prompt, easy to maintain and use
4. Traffic indication, channel indication (outdoor ultra-high brightness)
5. Normally open button (pressing the button the gate is always open or closed)
6. Automatically open when power off, automatically close when power on
7. Automatic closing/opening (time adjustable)
8. Control entry and exit/infrared induction free entry and exit, arbitrary adjustment
9. Card permission single/multiple access
10. Prompt for abnormal intrusion
11. Four-fold anti-pinch protection for mechanical, electronic and slip
12. Line self-test
13. Remote control switch to meet special needs and safety requirements
14. External electrical interface, which can be connected to a variety of reading and writing devices, which is convenient for system integration
15. Counting function (optional)
16. Lightbox advertising (optional)
17. Various styles of baffles are optional
