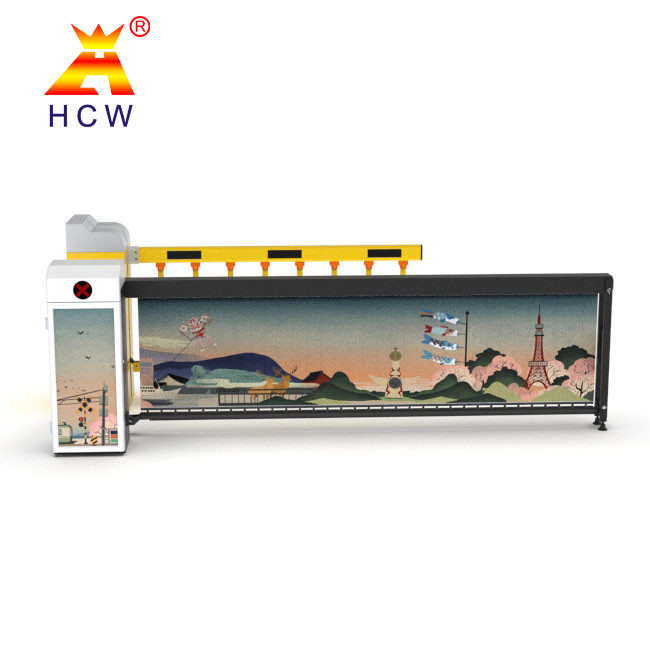

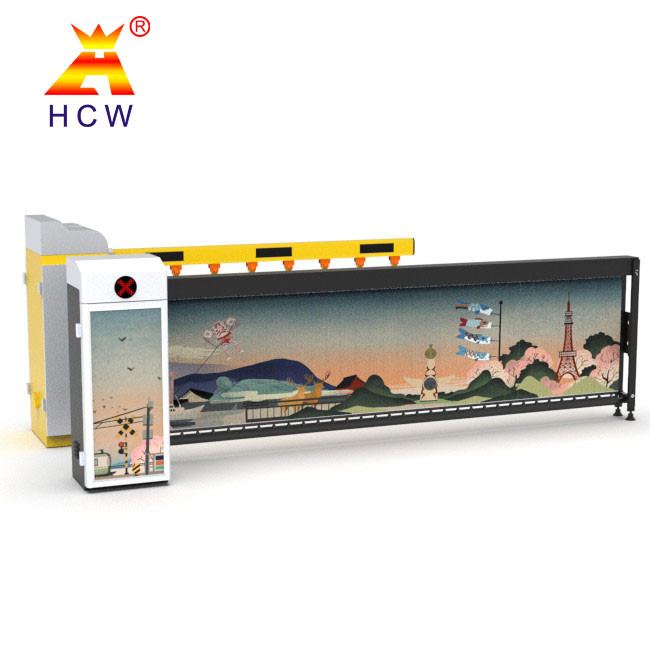

Advertising Parking Lot Barrier Gate Automatic With License Plate Recognition
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Advertising Parking Barrier | Barrier Arm | 1-4m |
|---|---|---|---|
| Operating Voltage | 220V+10%/50HZ | Arm Gate Material | Aluminum Alloy |
| Opening Time | 3s,6s. Customized | Arm Length | 1 ~ 5 Meters |
| Size Of Housing | 850 * 420 * 1300 Mm | OEM/ODM | OK |
| Working Temperature | -30℃~80℃ | ||
| High Light | Advertising Parking lot Barrier gate,Plate Recognition Parking lot Barrier gate,4m automatic parking gate barrier |
||
Product Description
Parking lot equipment advertising gate license plate recognition integrated machine
The chassis is waterproof, strong and durable, and can be used in outdoor environments. The enclosed fence gate prevents people from casually passing through.
The chassis is processed by pickling, phosphating, electrostatic spraying of polyester powder, etc., and after high temperature hot melt baking, scrub resistance and anti-ultraviolet quality, ensure no fading within 3 years
Simple and elegant appearance, advertising light box and copy advertising space with good viewing angle, the copy can be disassembled separately, easy to change the screen and easy to operate
The system can choose soft rubber hose to prevent smashing, and other protective equipment such as air pressure wave, so that the system has the function of preventing smashing cars and people.
1. Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
2. Advertising Parking Gate Barrier is independent motor and control system,When encountered strong winds,the remote control can open the Advertising board to avoid damage.
3. The multiple protection measures (wind protection, motor thermal protection, anti-surge protection, anti-lightning protection, etc.),so that the operation of the barrier safety and reliability has been greatly improved.
4. Customize boom lengths
5. Easy to integrate with other systems.
6. Working voltage: 220VAC ±20% / 50HZ.
7. Motherboard static power consumption: < 2W.
8. Maximum output load power: 1000W.
9. Remote control frequency point: 433.92MHz, remote control distance not less than 45m (open area).
7. Motherboard static power consumption: < 2W.
8. Maximum output load power: 1000W.
9. Remote control frequency point: 433.92MHz, remote control distance not less than 45m (open area).
| Windproof (anemometer required), foolproof and antifreeze functions can be set. |
| Innovative DC speed-adjusting advertising barriers, with traffic lights, beautiful and practical. 3. The speed of raising and lowering the rod can be adjusted independently, the speed of raising the rod is fast, and the speed of lowering the rod is slow. Within 3 meters, 4～5 seconds; 3～4 meters 5～6 seconds adjustable. |
| It has the shielding function of the descending angle, and the ground coil can be installed under the gate rod without a safety island. |
| Independent combined advertising blades are more convenient to replace. |
| It is convenient to shorten the length of the brake lever on site. The floor support rod is adjustable in 5 levels. |
| One-key remote control to set the fleet traffic mode, which can speed up the traffic. Large-capacity remote control, group remote control is possible. |
| It can be set on-site whether the gate will memorize the input signal. |
| The standard rubber strip has the function of rebounding when the falling rod meets resistance, and there is no need to install pressure electric waves. |
| It can be set to automatically release the gate when there is no car for a long time, and the function of delaying the gate-off time after passing a vehicle can be set. |
| Flexible selection of electric frequency and switch signal, and can be connected to a variety of control systems. Multiple relay output modes available |
| Wide voltage input: AC220V or AC110V can be used for power supply. The temperature rise of the DC brushless motor is small, and the motor will never be overheated. |
| Electrostatic dust high-temperature baking varnish (180 degrees ~ 250 degrees) is anti-corrosion, anti-fading, anti-shedding, easy to maintain, fine surface texture, smooth shape and atmosphere, and it will last forever. |
| A controller with RS485 communication can be added and upgraded to support remote control function. |
