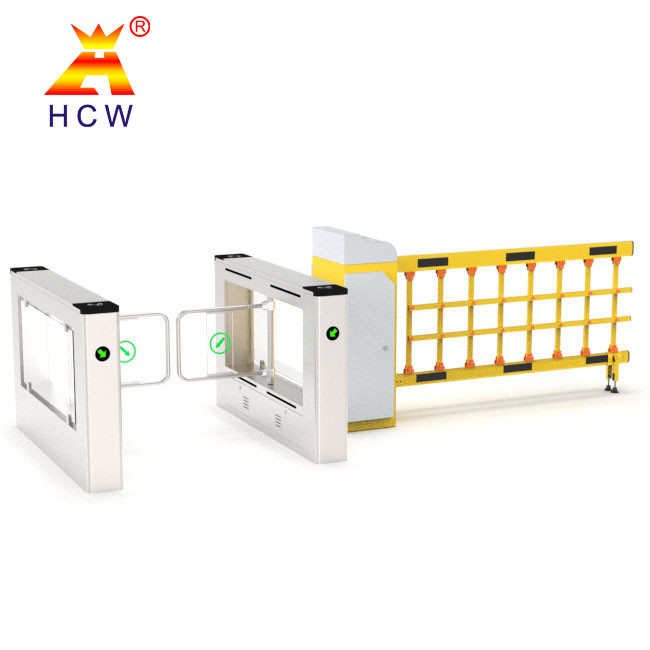

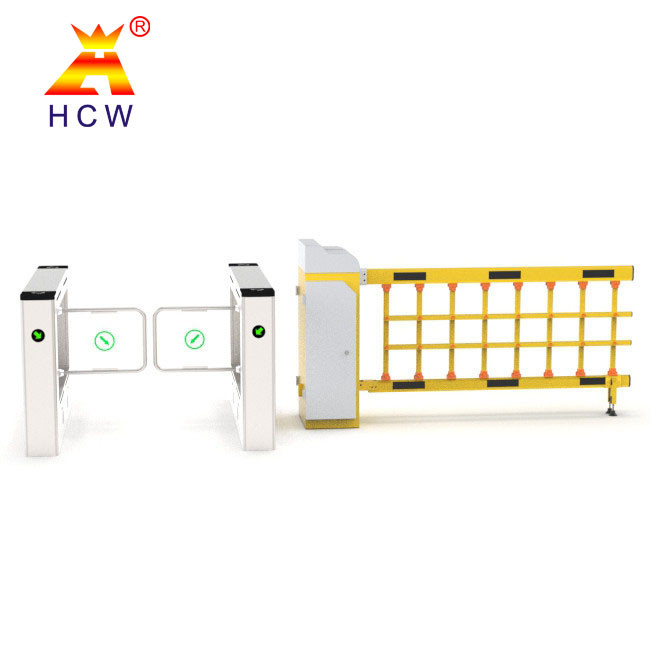

Pedestrian 0.5 Seconds Swing Barrier Turnstile SS304 With Face Recognition
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cabinet Material | SS304 | Arm Length | 530 To 730mm |
|---|---|---|---|
| Direction | Single Or Bi-direction (can Be Set) | Package | Carton Or Wooden Box |
| Certificates | CE | Power Supply | AC100-240V |
| Passing Direction | Single Directional / Bi-directional | ||
| High Light | Pedestrian Swing Barrier Turnstile,0.5 seconds Swing Barrier Turnstile,SS304 pedestrian security turnstiles |
||
Product Description
Swing turnstile Pedestrian passage gate scan face recognition all-in-one machine
Swing tursntile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies. By configuring a variety of different reading and writing equipment, adopting reliable safety protection devices, real-time alarm system and direction indicating interface, the intelligent control and management of the channel can be realized together in coordination.
The fuselage is made of stainless steel, which is solid and stable. There is an indicator reading and writing device on the chassis.
Powerful and intelligent mainboard, which can read the card in both directions, or read the card while the other direction is prohibited, or read the card while reading the card and pass freely in the other direction, and the working mode of the gate can be set through the mainboard menu
The gate movement, after the gate is released from the control, the gate needs to be manually pushed and released
Card-reading with memory improves efficiency, with card-reading memory and without memory function, the user needs to set the card after swiping N times, pass through N people continuously, and then close the door, suitable for places with high traffic
When there is illegal intrusion, the infrared detector will detect it and automatically turn on the alarm
| Channel width | 600mm-1100mm |
| Swing arm length outside the chassis | ≤51cm |
| Opening speed | 0.5 seconds |
| Number of people passing | 40 people/minute |
| Working environment | -40°C~80°C |
| Relative humidity | ≤90%, no condensation |
| Gate opening signal | relay |
| Cabinet material | 304 stainless steel |
| Box thickness | 1.5mm |
| Drive current | >10mA |
