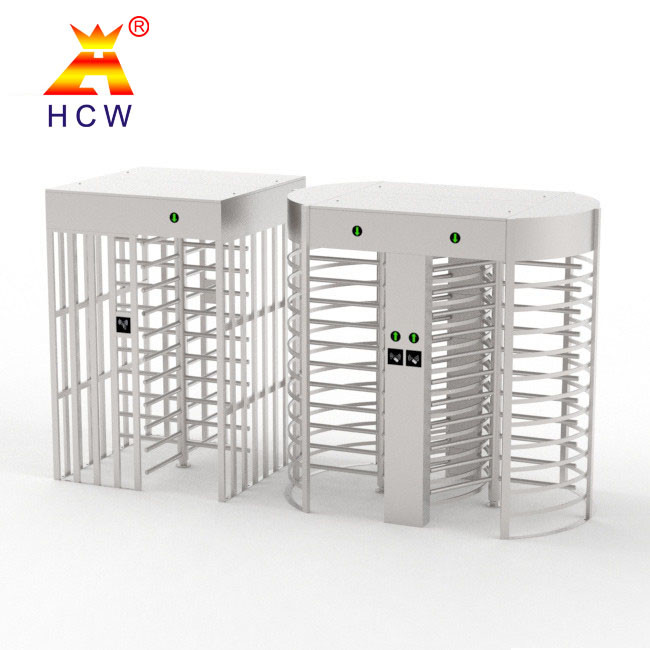

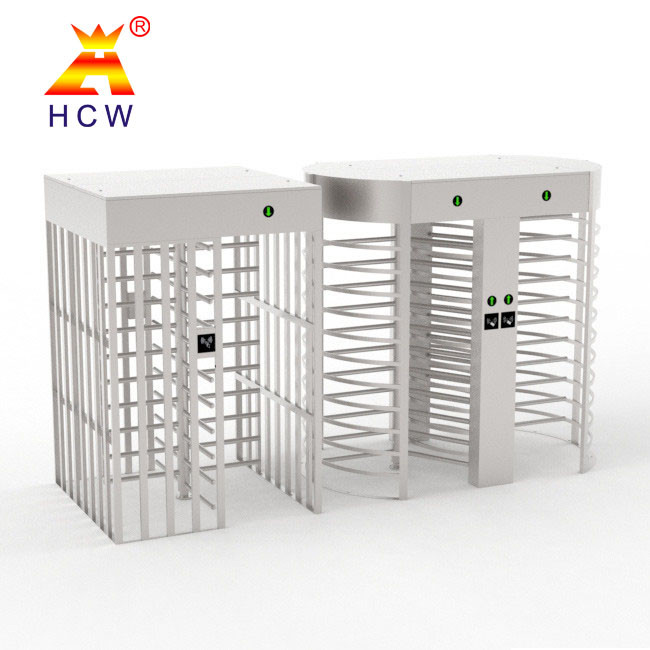

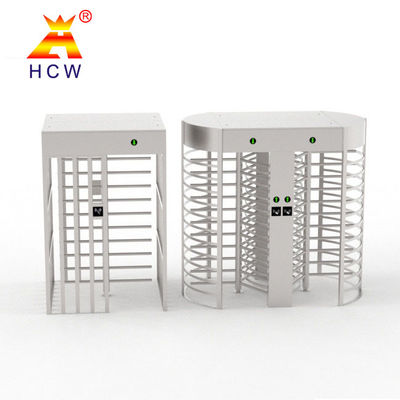

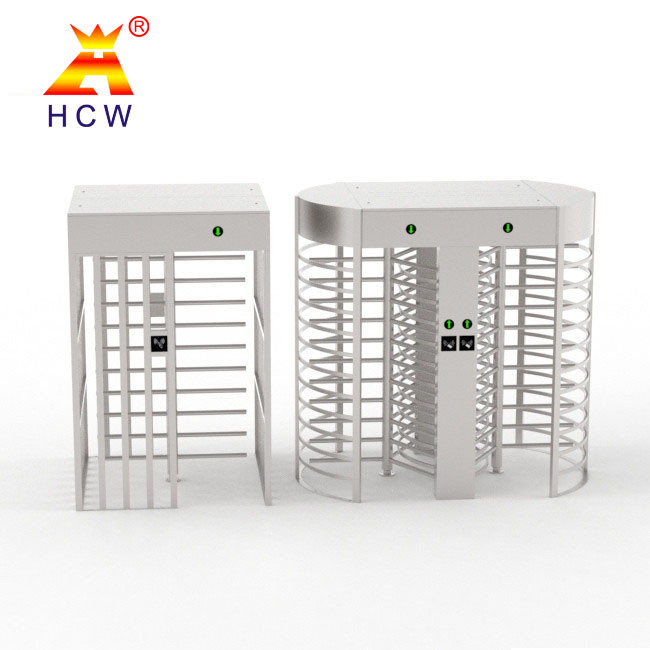

Biometrics Recognition RFID Full Height Turnstile Gate Rugged Revolving Tow Door

Place of Origin China
Brand Name Hongchuangwei
Model Number CW802
Minimum Order Quantity 2
Price USD 2019-2299 per piece
Packaging Details wood packing
Delivery Time 7-10 working days
Payment Terms T/T
Supply Ability 500 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE/UL/Rohs Relative Humidity ≤90%
Power Supply Voltage AC220+10% 50HZ Product Name Full Height Turnstile Gate Price
Dynamic Power Consumption 50W-100W Warranty 1 Year
Passing Speed 20-30 Persons/min Power Consumption 100W
Type Double Core Rotation Direction One-way Or Two-way
High Light

RFID Full Height Turnstile Gate

,

Rugged Full Height Turnstile Gate

,

Biometrics Recognition Full Height Turnstiles

Leave a Message
Product Description

Full Height Turnstile Double Lane Access Gate Rfid Entrance Door

Introduction:

Full Height Turnstiles are rugged low maintenance solutions for the harshest outdoor conditions. They act as a deterrent against tailgating and unauthorized entry at your fence line. We have two models, stainless steel or transparent for interior esthetics. full height turnstile with four arms, the most trusted and secure turnstiles available – fully welded construction suitable for indoor and outdoor applications. Dual-laneturnstile .requires a substantially smaller footprint than two individual turnstiles.



MAIN FUNCTIONS:
Automatic type
1. Being compatible with several control devices IC/ID card, magcard, bar code, fingerprint and etc.
2. Unlocking is quick and reliable
3. Direction: single direction, bi-direction(optional), several working modes are optional
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable.
5. The centre rotor will be set free (default) or locked (optional) automatically when power is off.
6. Emergency function:Turnstile gate rotate freely after power off
7. Counting Function , LED display
8. Memory Function
9. With standard input, output interface
Manual Type
1.The center rotor can only rotate by single direction,but the direction can be changed easily inside
2.The structure has no electric devices



Power-off opening: power-off unlocking and power-off locking. Under normal circumstances, the power is cut off and the lock is unlocked. When there is no power, the gate can pass through freely.
It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration
It has a clear passage indication function, prompting the passage status (passable "↙", prohibited passage "X")
Automatic reset function: After opening the gate, the system will be automatically locked if it is not passed within the specified time
Extended functions: technical functions, display screens, direction indicators, top lights, frame barriers
Anti-rotation function: After the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backwards





1.Power supply voltage: AC220+10% 50HZ
2.Power consumption: static power consumption <50W, dynamic power consumption <100W
3.Rotation direction: one-way or two-way
4.Communication interface: switch value, optional RS232/RS485
5.pass direction: one-way or two-way pass
6.Product components: 1 set of standard case, 1 set of 120-degree revolving door, 1 set of panel barriers, 1 set of arc barriers, 1 set of control panels, 1 set of movement
7.The fence length:600mm, and the door leaf is made up of 90 degrees of the fence
8.Swing arm length outside the chassis:≤430mm
9.Opening time: not adjustable
10.Number of passers:20 people/minute
11.working environment:-25℃ to 70℃
12.Relative humidity,≤90% no condensation
13.Automatic reset function: After opening the gate, the system will be automatically locked if it is not passed within the specified time, and the travel limit time is adjustable
14.Chassis material: standard 304 stainless steel. thickness:
15.The appearance of the chassis can be customized according to requirements



Biometrics Recognition RFID Full Height Turnstile Gate Rugged Revolving Tow Door 0Biometrics Recognition RFID Full Height Turnstile Gate Rugged Revolving Tow Door 1Biometrics Recognition RFID Full Height Turnstile Gate Rugged Revolving Tow Door 2
