AC220V±10% Tripod Turnstile Gate with QR Code Ticket and -25℃ to 70℃ Working Environment for Secure Access Control
| Place of Origin | China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE/ISO 9001 |
| Model Number | CW308 |
| Minimum Order Quantity | 2 |
| Price | Negotiable |
| Packaging Details | wooden packing |
| Delivery Time | 6-10 working days |
| Payment Terms | T/T |
| Supply Ability | 1000 pieces weekly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304/316 Stainless Steel | Number Of Passers | 20-30 Persons/minute |
|---|---|---|---|
| Normal Service Life | 3 Million Times | Name | Tripod Turnstile Gates |
| Standard Channel Width | 550mm | Input Voltage | 240V |
| Open/ Close Time | Not Adjustable | Working Environment | -25℃ To 70℃ |
| Highlight | Semi Automatic tripod security gates,QR Code tripod security gates,RFID Card Tripod Access Control System |
||
Product Description
HCW Security Access Control Tripod Turnstile Gate
Half Height with QR Code Ticket and RFID Card Reader
The CW308 intelligent bridge style tripod turnstile is designed for high-traffic areas including subways, airports, exhibition halls, commercial buildings, and government facilities. Featuring advanced access control technology with QR code and RFID card reader compatibility.
Key Features
- Silent operation with no mechanical noise or impact
- Dry contact signal input interface for universal controller compatibility
- Automatic closure if passage isn't completed within permitted time
- Emergency power-off release for safety compliance
- Optional external counter for passage tracking
- Configurable for single or bi-directional operation
- LED directional and status indicators
- Anti-tailing design with high-efficiency movement

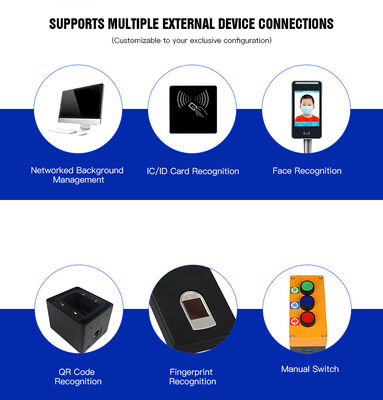

- Supports multiple reader types (IC/ID, barcode, ID card)
As industry leaders in turnstile manufacturing, we operate two factories covering over 50,000 square meters in Guangdong, maintaining the highest annual production capacity in China.
Technical Specifications
| Model | CW308 |
|---|---|
| Power Supply | AC220V±10%, 50±10Hz |
| Operating Temperature | -25℃ to 70℃ |
| Humidity Range | ≤90% (non-condensing) |
| Passage Rate | 20-30 persons/minute |
| Service Life | 3 million cycles |

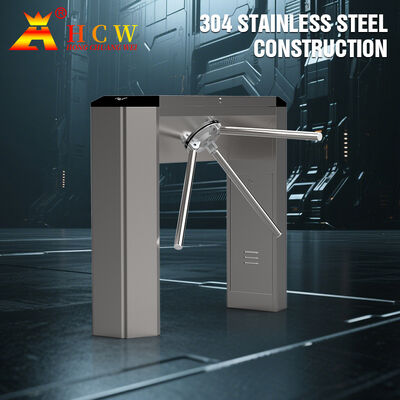

| Materials | 304 stainless steel chassis and boom |
| Channel Width | 550mm (customizable) |

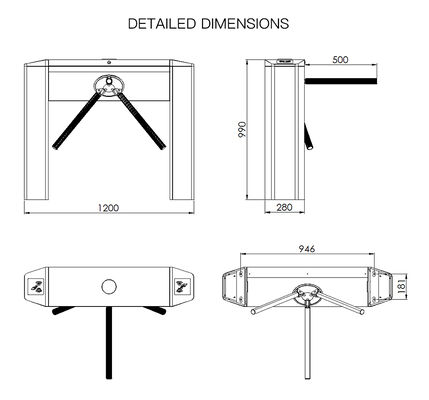

| Dimensions | 1200mm (L) × 280mm (W) × 990mm (H) |
| Weight | Approx. 45kg (single side) |
Product Images
