Automatic Swing Barrier Turnstile Auto reset Vertical Access Control Turnstile Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW401
Minimum Order Quantity 2
Price USD 249-299 per piece
Packaging Details wood cases/carton pacakge
Delivery Time 6-10 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Item Name Automatic Swing Turnstile Gate Size Of Product 1500*100*1000mm
Opening Time 0.5s Pass Speed 30-40 Ppl / Min
Electromagentic Duty Cycle 100% Passing Direction Single Directional / Bi-directional
Normal Service Life 4 Million Times Power-on System Startup Time 3 Second
High Light

Automatic Swing Barrier Turnstile


Auto Reset Swing Barrier Turnstile


Vertical Access Control Turnstile Gate

Leave a Message
Product Description

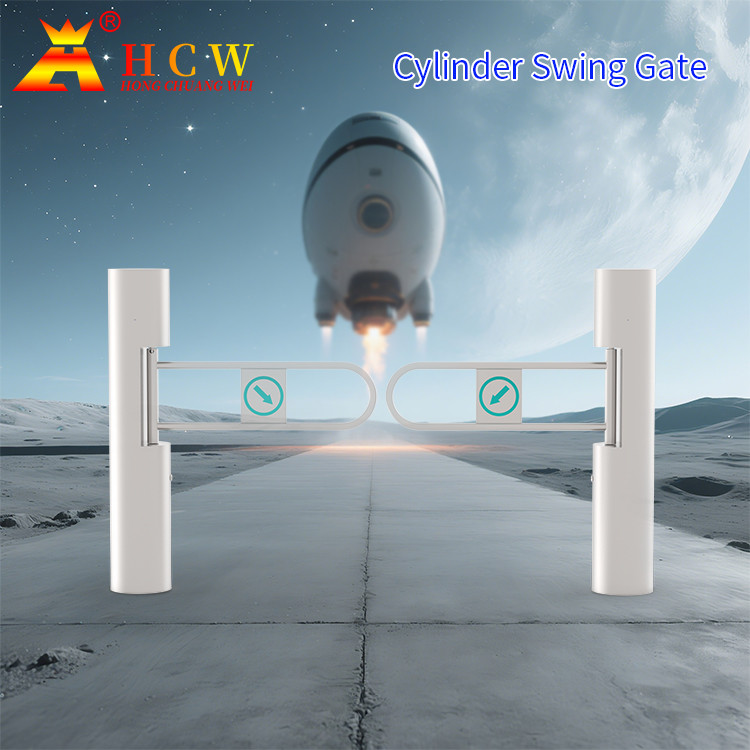

CW401 Access Control Automatic Swing Turnstile Barrier


brush-less vertical swing gate/ Swing Barrier Gate is for a variety of pedestrian, vehicle channel carefully developed an upgraded and innovative high-tech Access control product.
It adopts the new industrial-grade circuit and ARM control system and the unique mechanical design, combined with the characteristic of brush-less motor drive technology and accurate limit of technology, those make the product incomparable and revolutionary improved both in performance, lifespan, stability, and cost performance etc.
Vertical Swing Turnstile Unique Features:
Adopt Brush-less motor, it has a longer lifespan.
Non polar collision avoidance,it has strong resistance to destruction.
Superego protection, it is the preferred choice for non-motorized vehicle passageway.
Cutting edge new ARM technology, which has better expand-ability and high-cost performance.
Merits for smooth running, speed adjustable and low wear.
Adopt module structure design, it has an easier operation and less maintenance.
Lane size can be set and has the good anti-pinch performance to protect passengers.
Vertical Swing Turnstile Main Function:
Easy operation and convenient maintenance with functions of breakdown self-check and alarm.

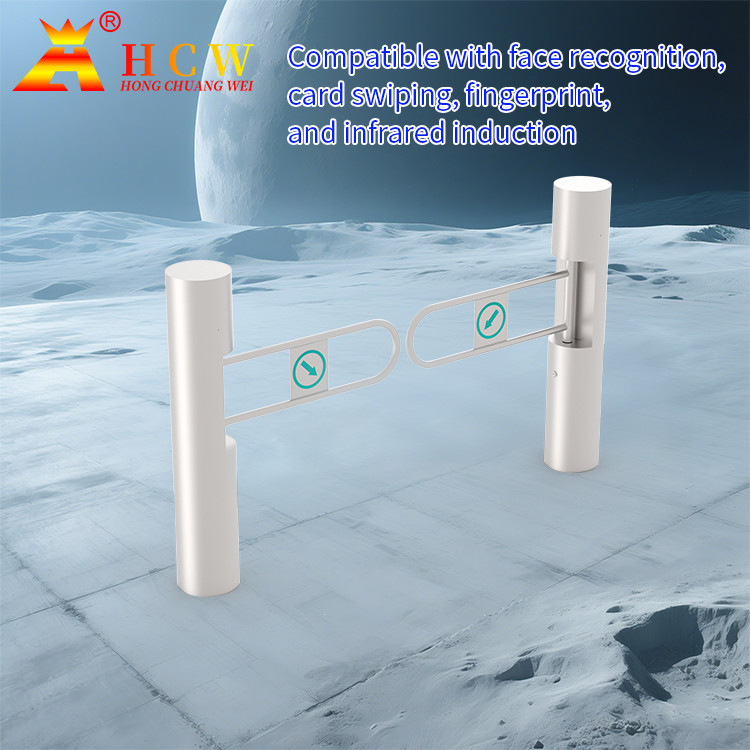

Can be linked to an external control device and receive the signal by the button or remote control, thus to realize one or bi-direction passing control.
Auto reset function: Arm rotates 90 degree and auto resets after detection of human/objects' passing, or auto cancels passing right and resets if there has no valid passing within the specified time.
Lighting indicator: High brightness passing indication.
Pedestrian passing and vehicle passing models are optional.
Can be connected to the fire alarm signal, to realize continuous electric pole normal open to evacuate people.
Alarm prompt function: Auto alarm for illegal passing or dash passing.
Speed adjustable: Multi-stage adjustable arm opening and closing speed, and can be set according to the actual demand.
A new generation of industrial-grade ARM control system, to establish multi-functional digital Settings, such as encryption and reset function.
Anti-reverse function: In the process of arm reset, if there has reverse force, the arm will start anti-reverse function automatically and send out alarm till external forces disappear, then back to zero for normal passing.
Auto self-protection function: when the arm is prevented by the external continuous force, the system will auto detect for about 20 seconds and enter into a dormant state. When receiving a legitimate signal input, the system will automatically return to normal.
Multi-stage anti-collision( buffer function): illegal traffic or blunt brake, brake lever buffer corresponding Angle and start immediately reverse thrust, start the alarm at the same time, in the realization of human injury prevention at the same time also greatly reduced because of the often or continuous collision caused by mechanical damage
Arm normal open when power is off(free passing), auto reset when power is on. (passing is controlled)




Technical parameter
Product Model CW401
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 40W
Input control signal Switch value (standard configuration does not include RS232, RS485)
Running speed 30~40 Person/minute
Infrared beam 1 Pair
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1600mm
Door wing material ¢25mm Stainless steel
Product Size ¢200mm x height 1050 mm

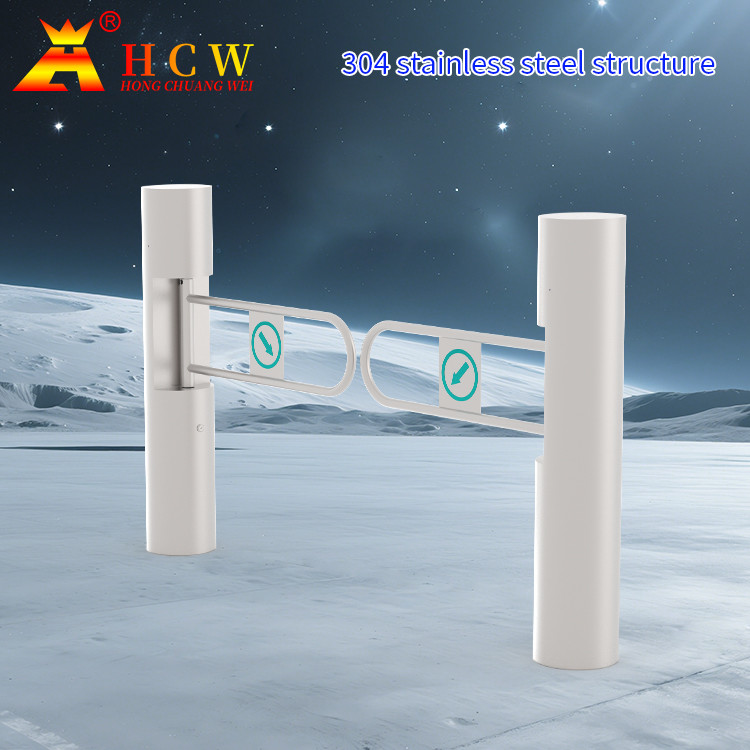

Channel frame National standard 1.5mm 304 stainless steel
Package weight About 25 KG (single side road)

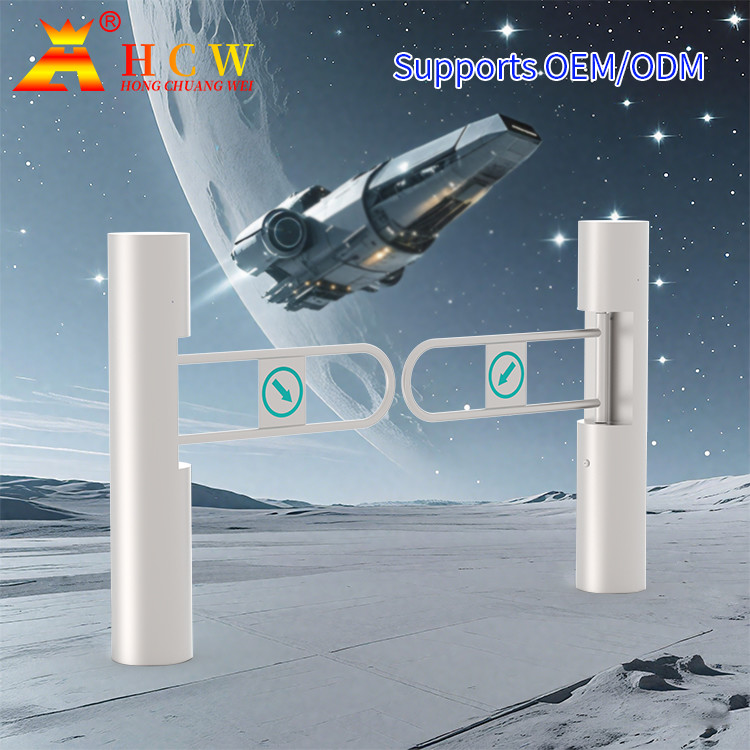

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
