Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW321
Minimum Order Quantity 2 piece
Price Negotiable
Packaging Details wooden case
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Passage Width 550mm
Input Voltage 100-240V 50-60HZ Motor DC Brushless Motor
Reacting Time 0.2S Input Voltage 110V
Electromagnet Yes Mechanical Part Movement
OEM Support
Highlight

Stainless Steel Tripod Turnstile Gate

,

110V Tripod Turnstile Gate

,

110V supermarket entrance turnstile

Leave a Message
Product Description

Supermarket entrance Tripod barrier gate turnstile stainless steel entrance gate


The outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.

The box material is made of standard 304 stainless steel. The tank body is designed with professional water guide. It can be installed indoors or outdoors. It is suitable for places where people can pass the rate. It has functions such as counting, attendance and current limiting, and can cooperate with ticketing system and electronic tickets. System scenic spot ticket system, playground ticketing system, stadium ticketing system, theater ticketing system, realize the management functions of ticket sales, ticket inspection, ticket checking, and ticket collection


Parameters

 Product name CW321
Power Supply Voltage AC220V±10%,50/60HZ
Motor Semi-Automatic Tripod Turnstile Mechanism
 Power supply 100w
 Material 304 stainless steel
LED lamp Red and green
 Surface treatment Brushed finish
 Thickness  1.0~1.2mm
 Size 1200*220*980mm
Passage Width 550mm
Service Life 5 million cycles
 Working environment  -25~+70
Applicable Locations Office buildings, scenic spots, apartments, schools, and more

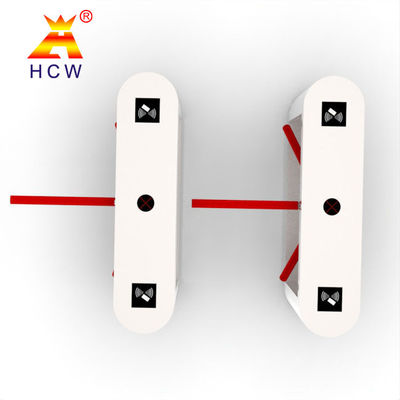

Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel 0

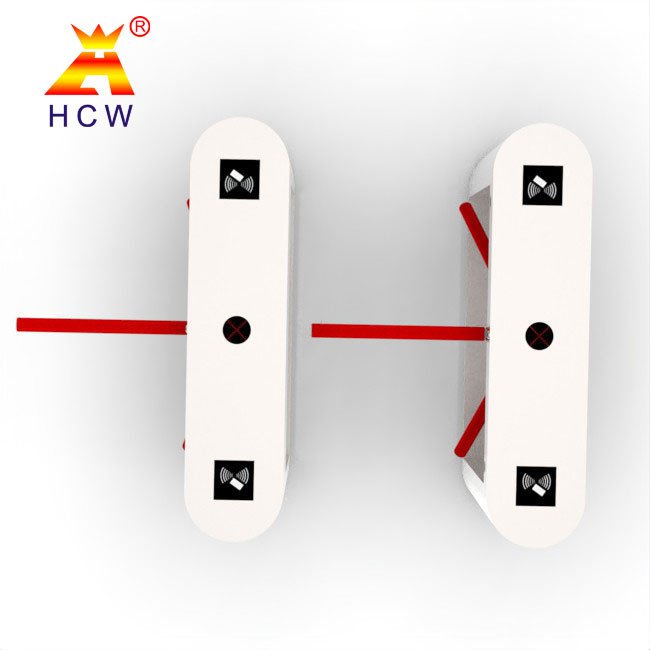

Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel 1

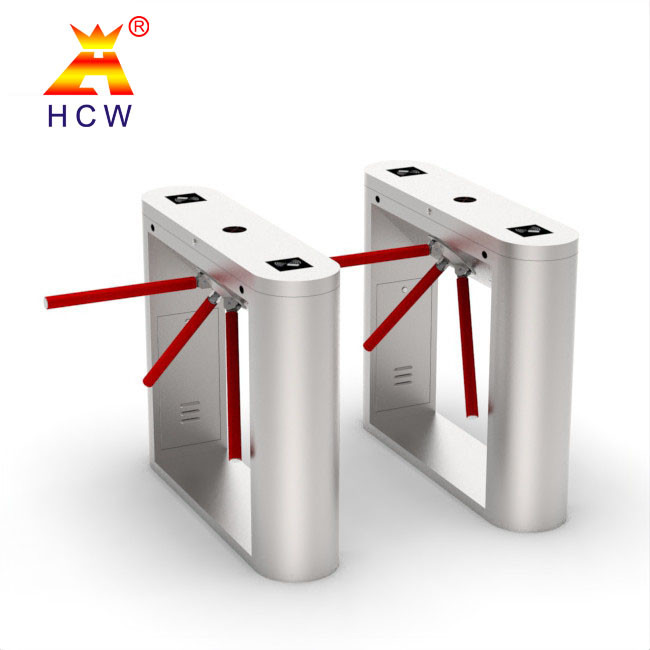

Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel 2

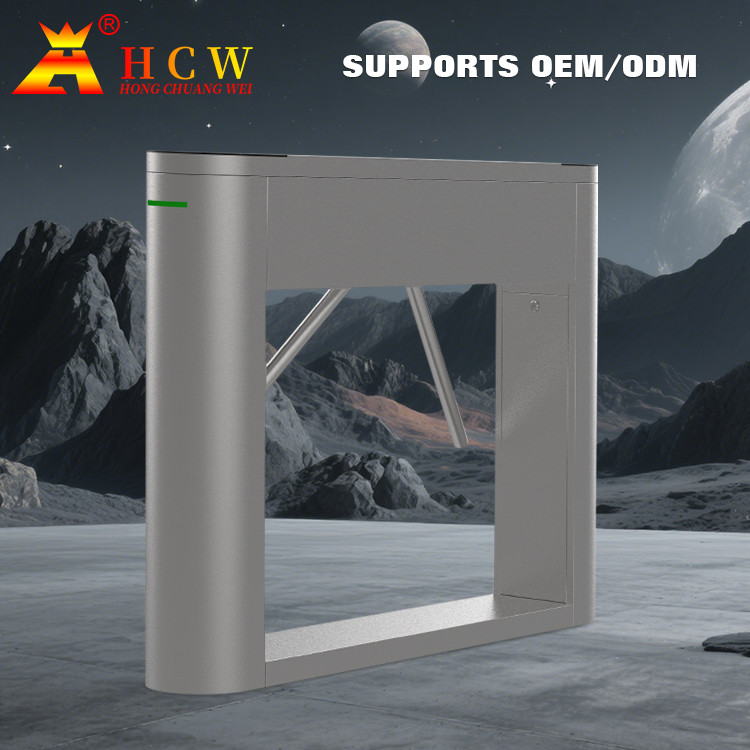

Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel 3

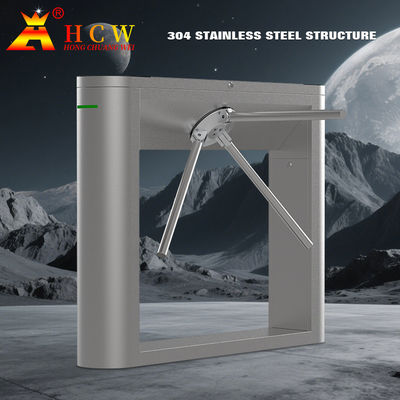

Supermarket Entrance Tripod Turnstile Gate 110V Stainless Steel 4
