Waist High Security Turnstile RFID Turnstile Gate Access Control 40 Persons / Min
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Special Features | Built-in Siren | Chassis Size | 1200 Length * 280 Width * 1000 Height (MM) |
|---|---|---|---|
| Vertical Chassis | 380 Length * 280 Width * 1000 Height (MM) | SwingArm Length | 500-900mm |
| Passing Speed | 40 Persons/min | Drive Current | >10mA |
| Working Environment | Indoor And Outdoor (shade Shed) -10℃～70℃ | ||
| High Light | RFID High Security Turnstile,40 Persons / Min High Security Turnstile,40 persons / min RFID Turnstile Gate |
||
Product Description

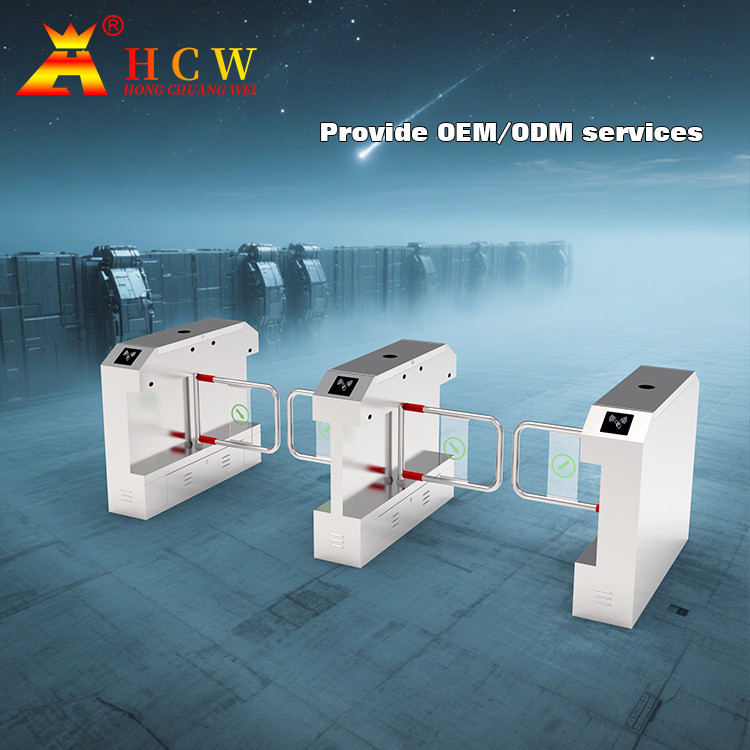

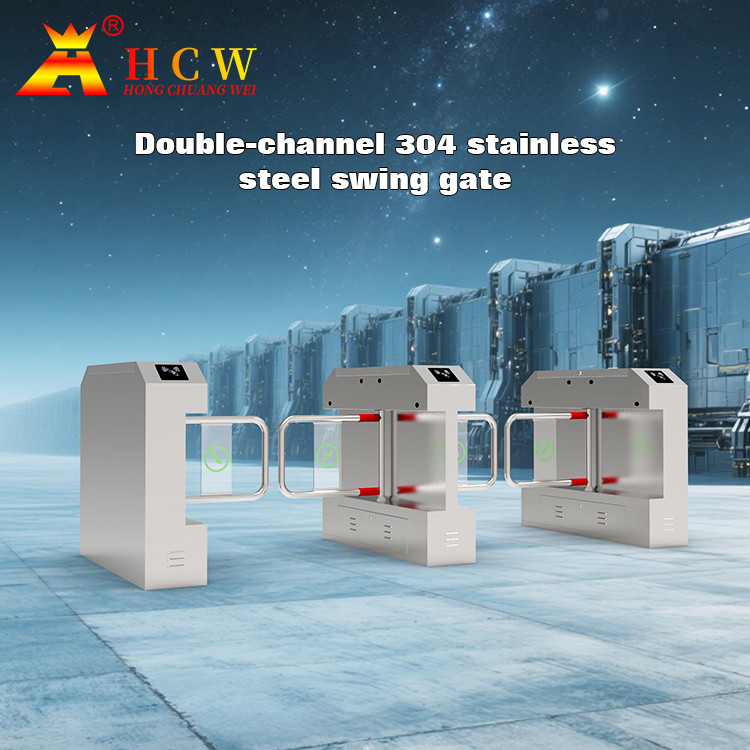

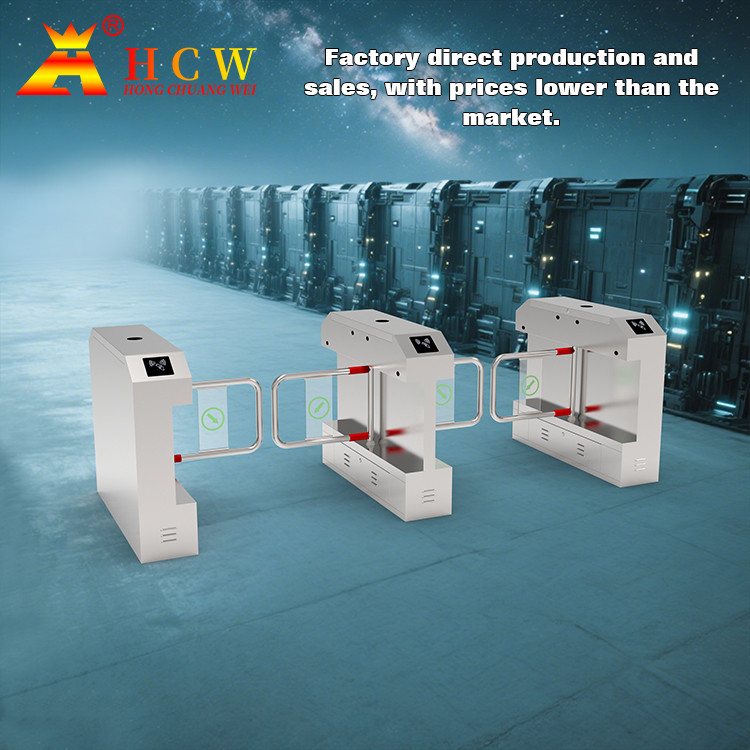

Waist high security rfid access control automatic gym turnstile swing barrier
Product Application

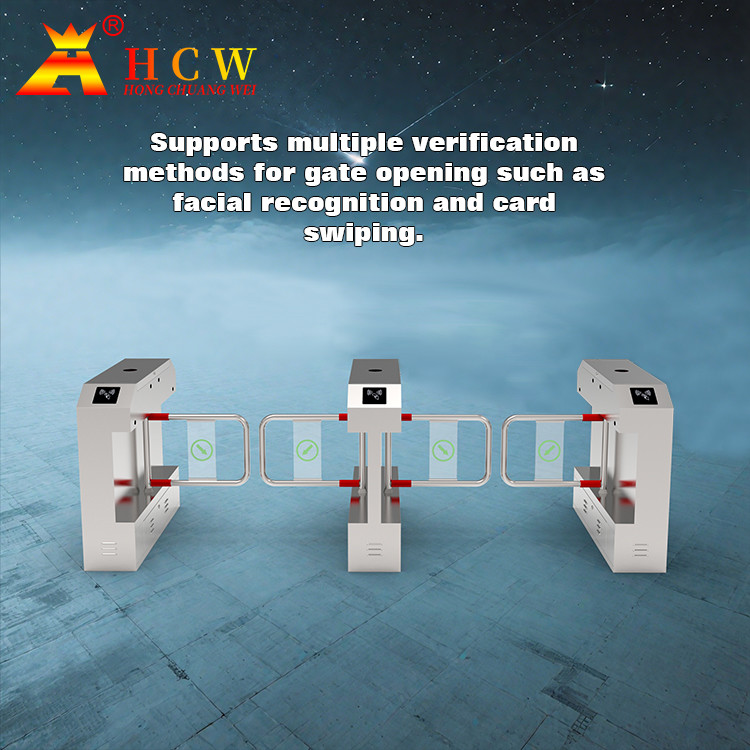

Swing Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.
Standard product features:
1) It has fault self-test and alarm prompt functions, which is convenient for users to maintain and use;
2) It has anti-clip and anti-collision functions, when the obstacle is encountered during the reset of the swing arm, the motor automatically stops working within the specified time, and resets again after the default delay, and the force is small.
3) It has an anti-shock function. The swing arm is automatically locked when no open signal is received;
4) It has one-way and two-way pendulum functions, which can realize the control of the entry and exit of personnel in one direction or two directions;
5) Remote control and management can be realized directly through the management computer.
|
Indicator
|
Green means passage
|
|
Power supply for core
|
AC100~220V 50/60Hz
|
|
Operational voltage
|
DC 24V ±5％
|
|
Voltage of indicator
|
DC12V ±5％(standard)
|
|
Power consumption
|
30W
|
|
Working environment
|
Indoors or outdoors(outdoor is optional)
|
