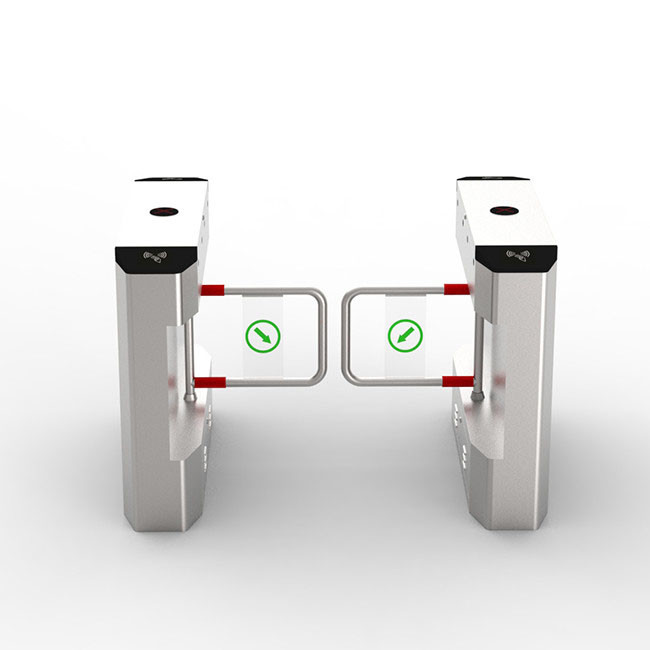

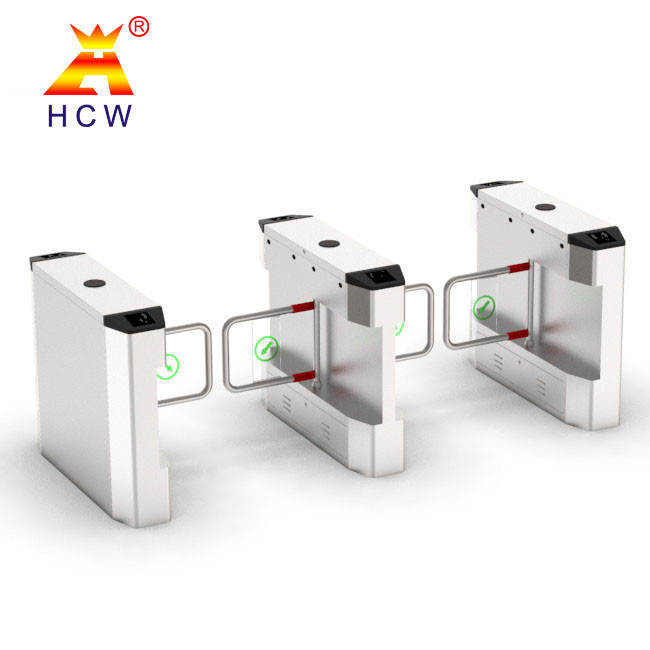

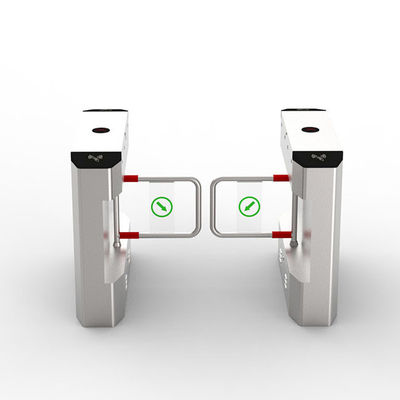

Bidirectional Swing Barrier Turnstile Gate 304 Stainless Steel Swing Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW404
Minimum Order Quantity 10 piece
Price USD300~500 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type 24V DC Brushless Motor Relative Humidity ≤95%, No Condensation
Passage Width 550mm( 900mm Optional) Passing Speed Normally Open-50persons/min; Normally Closed-50persons/min
Card Reading Support Bar Code Scaning Support
Fingerprint Identification Available Pass Bi-directional Pass
High Light

Bidirectional Barrier Turnstile Gate

,

304 Stainless Barrier Turnstile Gate

,

304 Stainless Steel Swing Gate

Leave a Message
Product Description

Bi-Diretional Swing Barrier Turnstile Gate Pedestrian Access Control System



This swing barrier turnstile is a smart communication channel management device that developed and produced by our company. By configuring different read-write devices, the intelligent control and management of the channel can be completed. The shape of the entire product is stamped and formed by stainless steel, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside.



Main Functions and Features of the System
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.



Power supply voltage

AC220V±10V,50HZ

Working temperature -40℃~70℃
Relative humidity Less than 95%, no condensation
Maximum channel width 510mm
Pass speed 20-30 people/minute (IC card)
Electromagnet

20W/24V



Bidirectional Swing Barrier Turnstile Gate 304 Stainless Steel Swing Gate 0
