Slim Acrylic Side Cover High Speed Barrier Turnstile Gate For Access Control

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW408
Minimum Order Quantity 1 piece
Price USD600~700 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Speed Gate Power Supply AC220V±10%,50HZ±10% HZ
Working Environment Temperature -25℃-70℃ Communication Relay
Relative Humidity ≤90% Infrared Quantity 7 Pairs
Face Recognition Support Open/close Time 0.5-0.8s
High Light

Bidirectional Barrier Turnstile Gate


RFID Barrier Turnstile Gate


RFID pedestrian access control

Leave a Message
Product Description

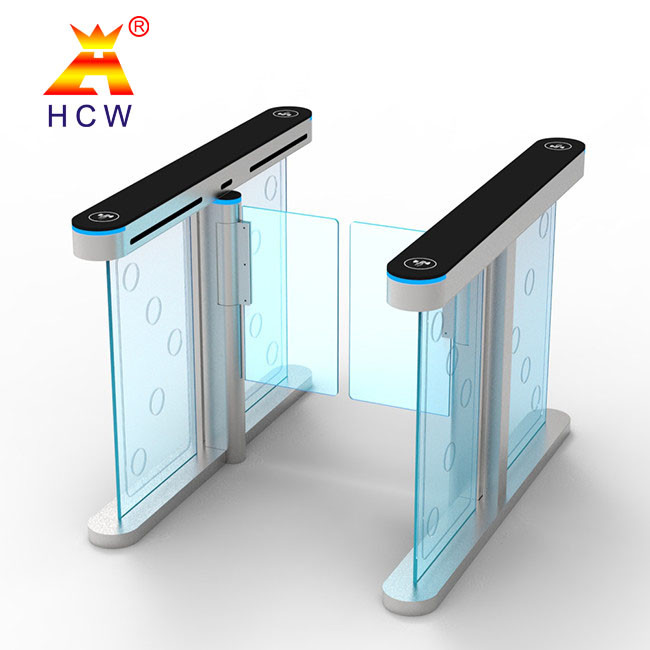

Slim Acrylic Side Cover High Speed Barrier Turnstile Gate For Access Control
Production Introduction
CW408 speed gate is a high-end swing barrier turnstile for pedestrian passages,the turnstile movement uses a 40W brushless motor,and is equipped with 7 pairs of infrared detection sensors,which has the characteristics of fast speed and high efficiency anti-tailgating.The chasis is made of 304 stainless steel,and the swing arms are made of plexiglass.The turnstile can be passed in one-way or two-way,and can set the door opening and closing speed according to the flow of people,improving the efficiency of the equipment.

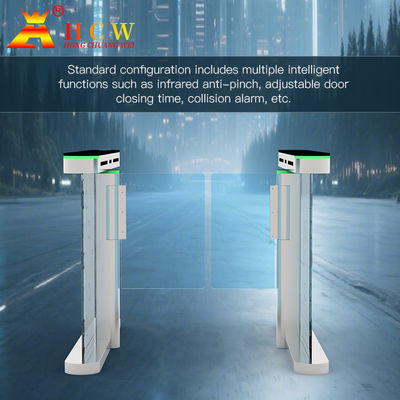

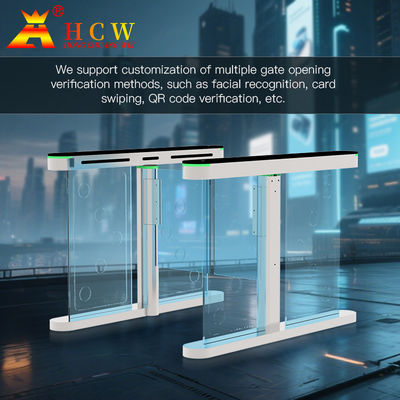

The swing arm will automatically bounce when it encounters obstacles during the resetting process,effectively preventing personnel from being pinched.An audible and visual alarm will be issued for illegal intrusion.After the door is opened,the system will automatically cancel the user's permission to pass this time when the user does not pass within the specified time.This turnstile can be connected to various access controlsystems,supporting various card readers, barcode readers,ID card readers,QR code recognition,fingerprint recognition,biometric face recognition etc.This kind of pedestrian passage speed gate is widely used in shopping malls,office buildings,residential areas,schools and other places where large people enter and exit,and can effectively control the in and out of crowded people.

Technical Parameter
Product modelCW408
Power supplyAC220V±10%,50HZ±10% HZ
Working environment temperature-25℃-70℃
Relative humidity≤90%
MotorBrushless motor
Rate power40W
Communication interfaceSwitch value(standard without include RS232,485)
Number of passers30~40/min
Infrared quantity7 pairs
Normal service life5 million times
Channel width size600mm~1000mm
Swing material10mm Plexiglass
ProductL 1400mm x W 160mm x H 1000 mm
Chassis frameStandard 1.2~1.5mm 304 stainless steel
Packing weightAbout 80 KG(single channel)


1. How strong is your company?
We have more than 200 employees, a 50-person R&D team, 2 factories, more than 60,000 square meters of workshops and office buildings, and 200 product patents.
2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service
3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.
4. How long is your warranty period?
One-year warranty and lifetime technical support.
5.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the products and packages.

6.How do we install those revolving doors/barrier doors? Is it easy to do?
Yes, it is really easy to install, and we have done most of the work before sending our product. You only need to fix the gate with screws and connect the power cord and network cable.
7.Can you produce according to our size?

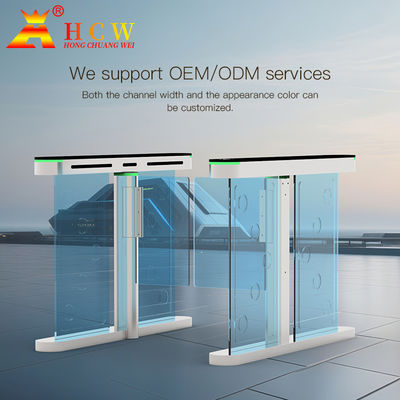

We can provide customized services according to your detailed requirements, and we can also design unique gate products according to your actual site, and produce different sizes, software and functions.
8.What is the warranty of the machine?
Within one year, if there is any problem, we will provide accessories (but you pay the shipping cost)
9.How does your factory control quality?
Quality control in the whole process
10.What is your MOQ?
Any amount is acceptable.
