xProduct Details
| Type | Fully Automatic | Finishing | Light Wire Drawing |
|---|---|---|---|
| Barrier Length | 250-550mm | Input Voltage | AC220V±10% 50HZ |
| MCBF | 5 Million/time | Traffic Speed | 30~40 Persons/min |
| Working Environment | Indoor And Outdoor (shade Shed) -25℃～70℃ | ||
| Highlight | RFID half height turnstile,Fingerprint Face Recognition Gate,RFID face recognition gate |
||
Product Description

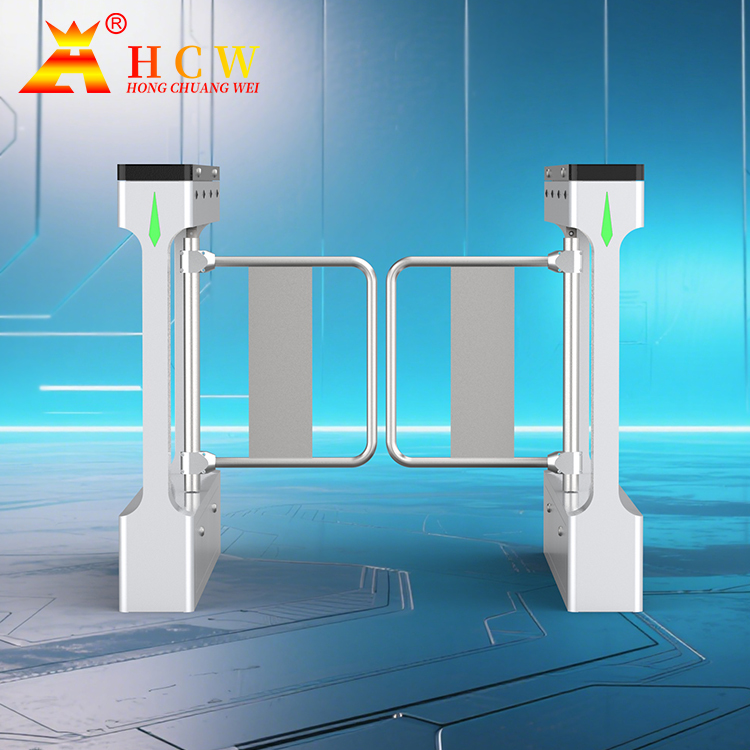

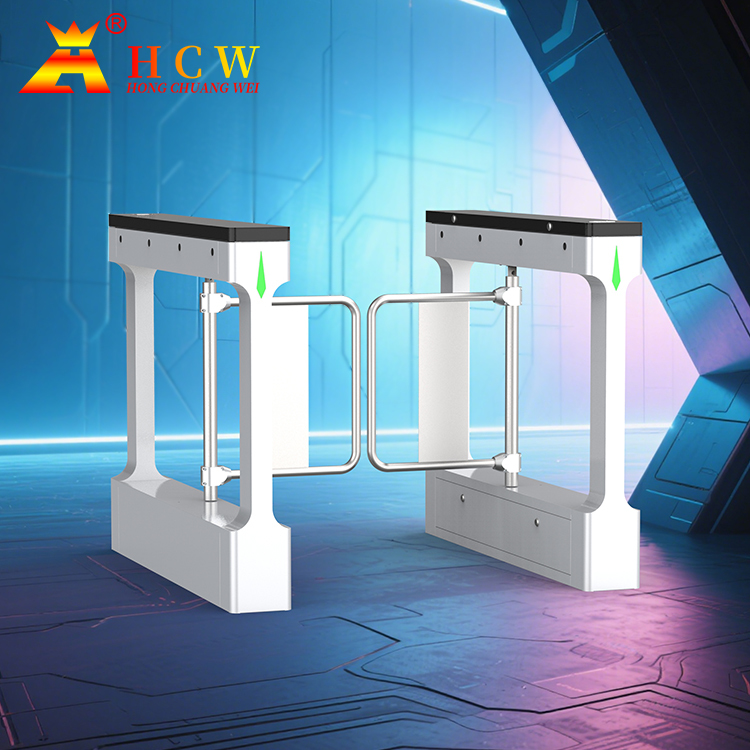

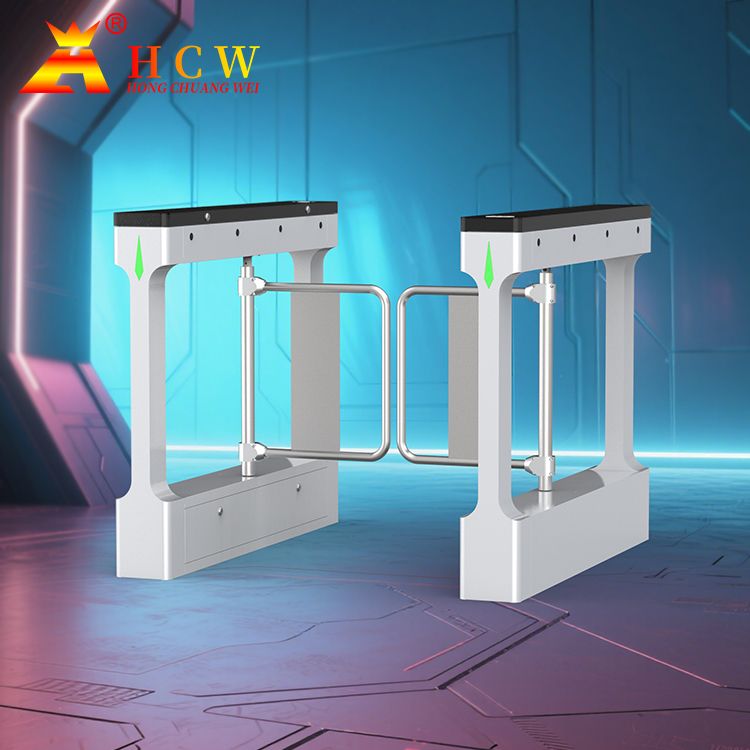

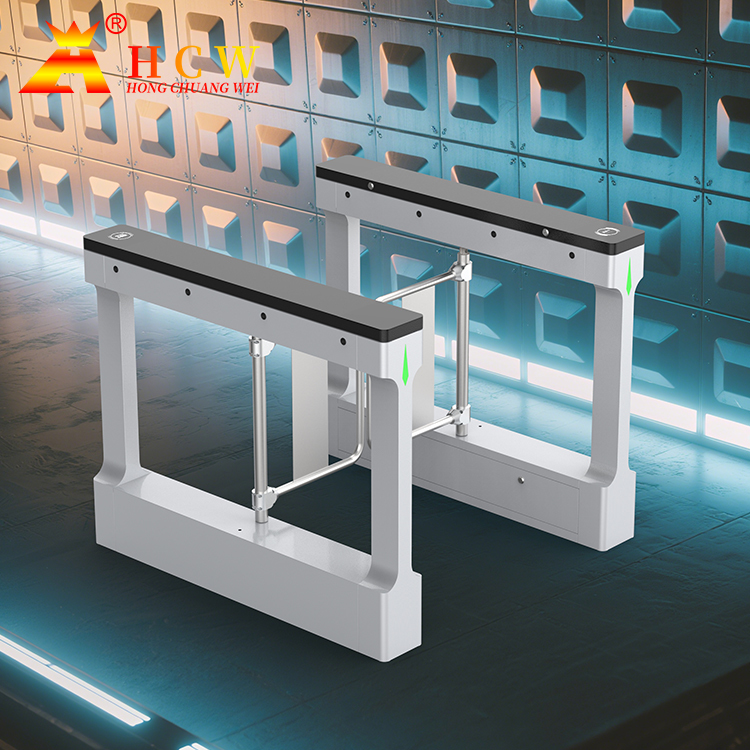

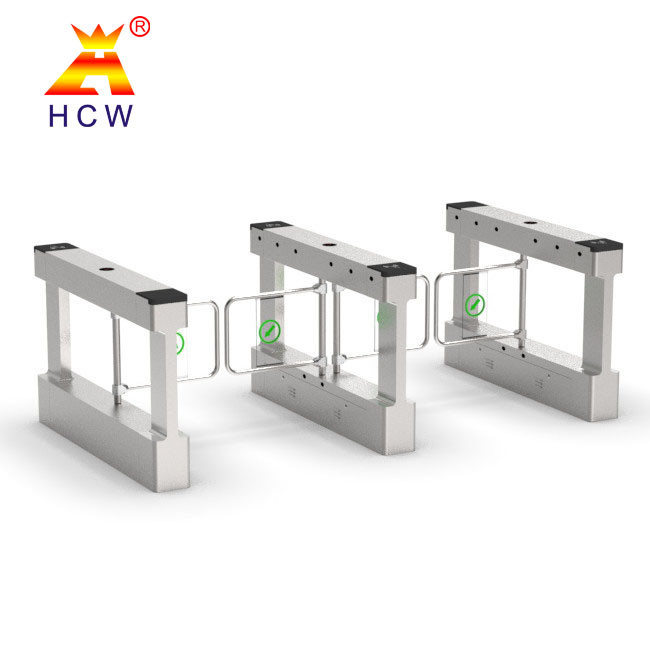

Turnstile Gate Security Swing Turnstile With RFID Fingerprint
Product Application
Swing Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.
It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
| Technical parameter | |
| Product number | CW463 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor type | 30W Brushless DC |
| Rated power | 100W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30-40 people/minute |
| Infrared beam | 4 pairs |
| Number of trouble-free runs | 4 million times |
| Average life span | 5 million times |
| Channel width | 550~1150mm |
| Swing arm material | Stainless steel tube swing arm |
| Product Size | 1200*165*980mm |
| Channel frame | 1.0 thick Cold-rolled sheet + electrostatic spraying |
| Package weight | About 50 KG (single side road) |
