510mm Maximum Width Waist Height Swing Barrier Turnstile Gate

Place of Origin Shenzhen,China
Brand Name hongchuangwei
Certification CE
Model Number CW428
Minimum Order Quantity 1 piece
Price USD500~750 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 304 Stainless Steel Case Thickness 0.982mm
Top Cover Thickness 1.02mm Name Swing Barrier Turnstile
Card Reading 5.1cm Bar Code Scaning Support
QR Code Support Fingerprint Identification 3011
Face Recognition 20011
High Light

Tickets Reading Waist High Turnstile


510mm Waist High Turnstile


510mm turnstile entrance gates

Leave a Message
Product Description

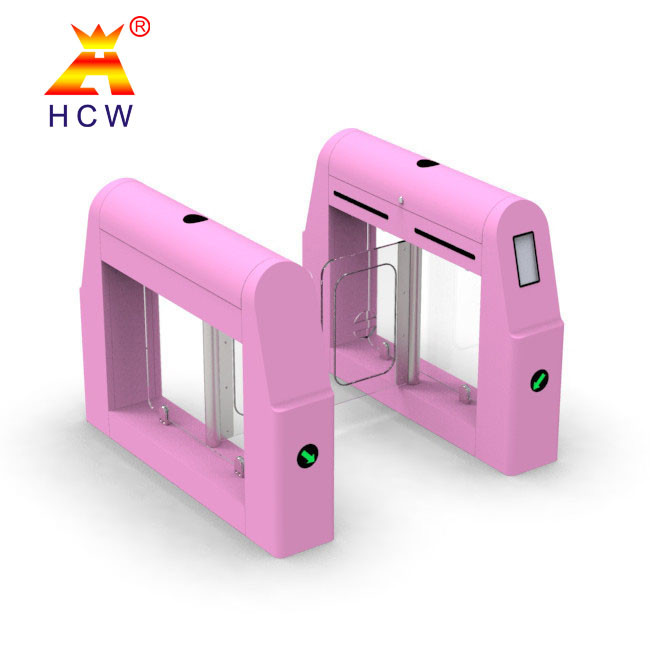

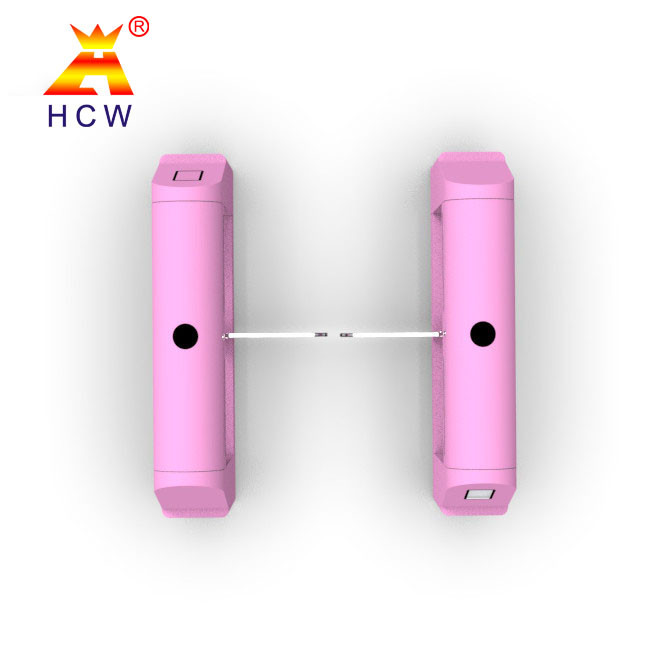

Tickets Reading Waist Height Turnstile Entrance Gates 510mm Maximum width



CW428 High grade anti-collision swing turnstile,use STC CPU chip, DC brushed motor,4 pairs of infrared detection sensors,long life and high stability,high efficiency and anti-tailing,support various IC/ID card readers,barcode readers,ID card reader,etc.,easy to hook up with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens,etc.



Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm

Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people,the opening and closing speed

of the door wing can be set to improve the efficiency of the equipment

Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through

Anti-pinch function,when the swing arm is in the process of resetting,it will automatically rebound or the motor will automatically stop working within the specified time,and the sound and light alarm will be issued at the same time (additional horn is required)

Anti-shock function,the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal.When the swing arm is hit,the swing arm will automatically open to the set angle.The electromagnetic lock will automatically lock,with a maximum impact of 120Nm.

With self-detection,self-diagnosis, and automatic alarm functions; including illegal intrusion alarm,anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)

Remote control management function

Can be run online or offline

LED traffic direction indication, display traffic status

When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic



Technical parameter
Product model CW428
Power supply AC220V±10%,50HZ±10% HZ
Working environment -25℃-70℃
Relative humidity ≤90%
Motor brushless motor
Motor power 60W
Communication interface switch value.RS232.485
Number of passers 30~40/min
Infrared quantity 4Pairs
Normal service life 5 million times
Channel width size 600mm~700mm
Swing material 12mm Plexiglass
Product size L 1200mm x W 220mm x H 900 mm
Chassis material National standard 1.3mm 304 stainless steel
Packing weight About 70 KG(single channel)
