Stainless Steel Bidirectional Swing Gate Turnstile Biometric Access Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Passing Speed | 20 Person/minute | Protection Class | IP42 |
|---|---|---|---|
| Weight | 65KG | Motor | Brushless Motor |
| Dimension | 168 * 168 * 1050mm | IP Protection Level | 42 |
| Net Weight | 50kg | Passing Direction | Single Directional / Bi-directional |
| Highlight | Stainless Steel swing gate turnstile,Bidirectional Swing Gate Turnstile,Bidirectional Turnstile Biometric Access Control |
||
Product Description

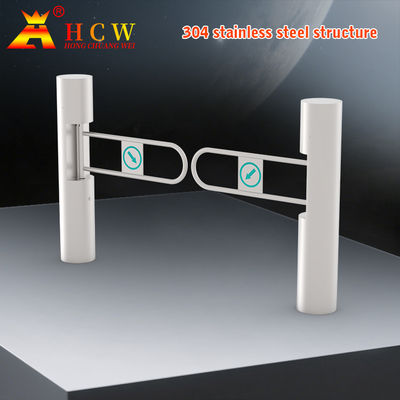

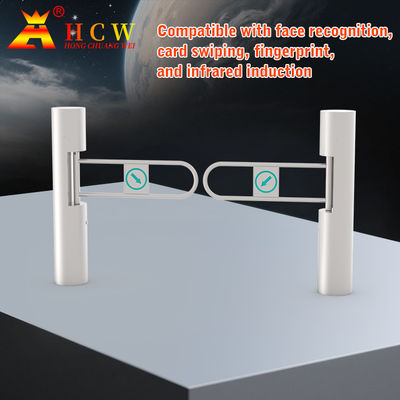

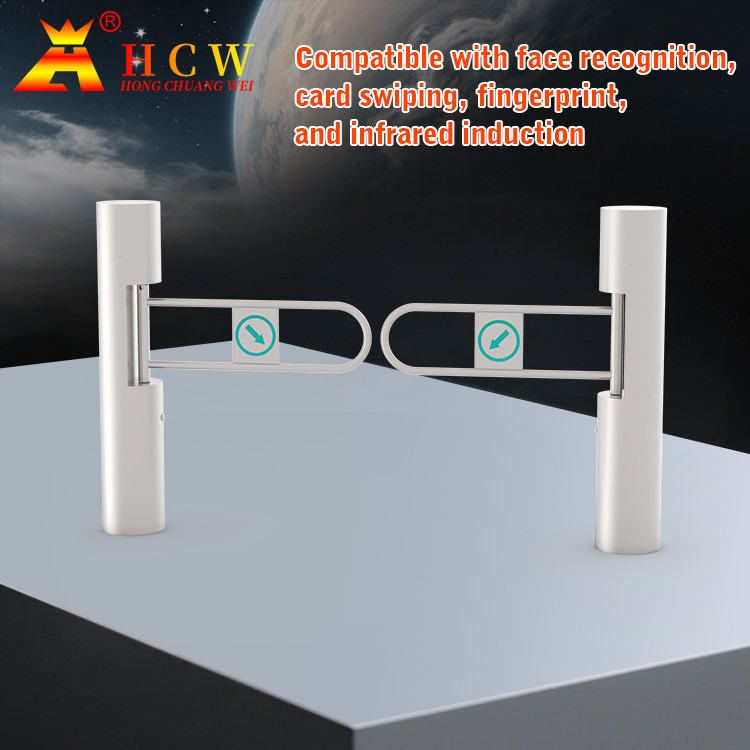

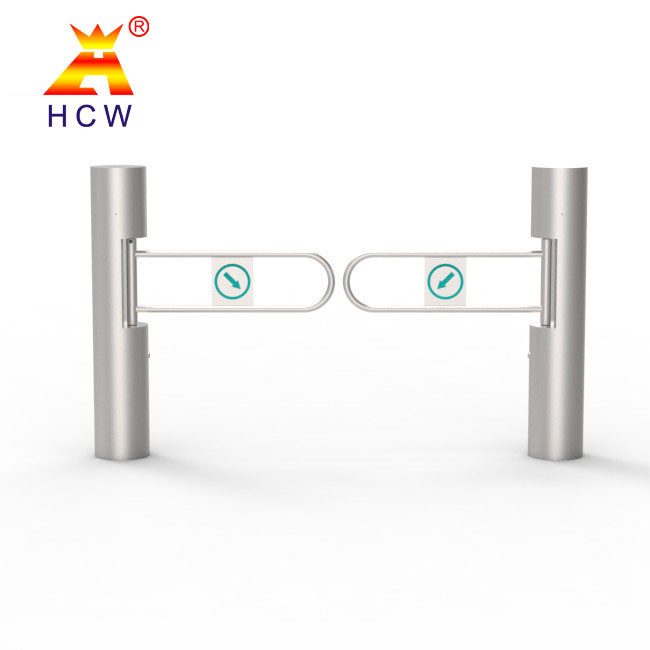

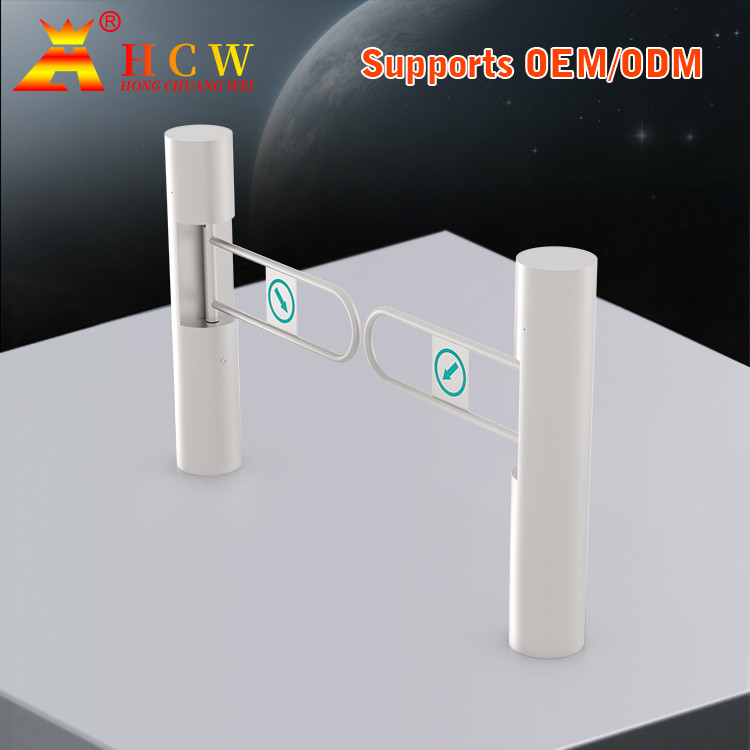

Stainless Steel Bidirectional Swing Gate Turnstile Biometric Access Control
CW401 high-end speed pass anti-collision cylindrical swing gate, using STC CPU chip, brushless motor, 1 pair of infrared detection sensors, long life and high stability, supporting various IC/ID card readers, barcode readers, ID card readers Etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.

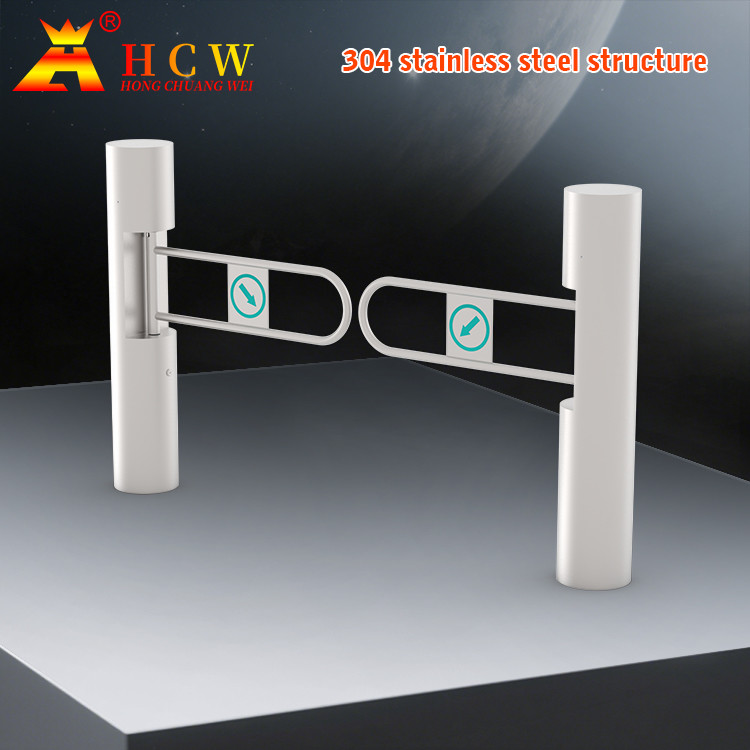

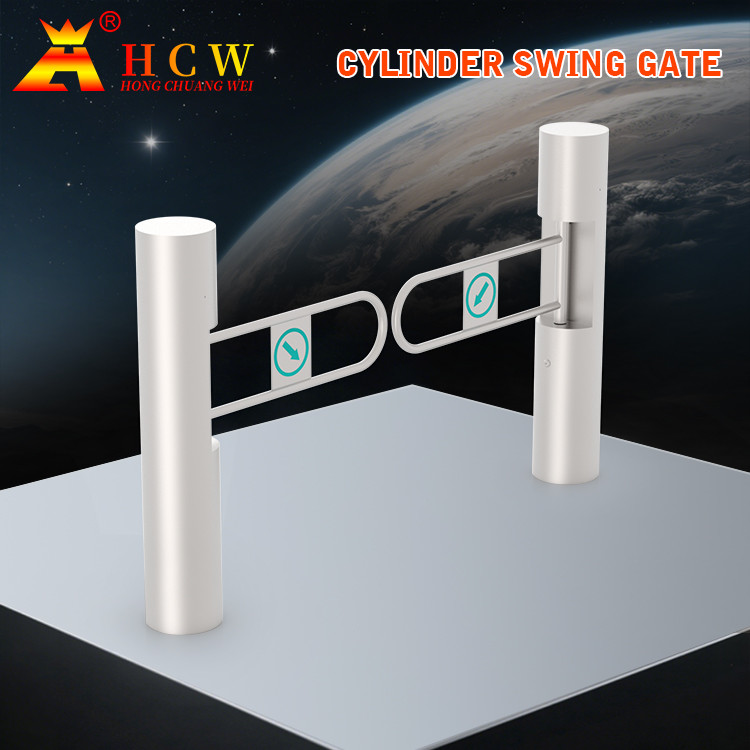

304 Stainless Steel Cylindrical Swing Gate – The Ultimate Choice for Secure, Durable & Smart Access
Key Features:
• Military-Grade Material: 1.2-1.5mm thick 304 stainless steel, rust/corrosion-proof with impact-resistant structure
• Precision Engineering: Seamless cylindrical design, hand-polished for burr-free smoothness
• Extended Lifespan: 5-million-cycle tested pivot shaft for high-traffic environments
• Smart Flexibility: Supports face recognition, card/fingerprint access, with customizable solutions
• Space-Saving: 16.8cm diameter compact profile ideal for malls, metros, office lobbies
• Safety Assurance: Infrared anti-pinch sensors + emergency quick-release mechanism
| Technical parameter | |
| Product Model | CW401 |
| Voltage | AC220V±10%,50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | ≤90% No condensation |
| Motor | Brushless Motor |
| Rated power | 40W |
| Input control signal | Switch value (standard configuration does not include RS232, RS485) |
| Running speed | 30~40 Person/minute |
| Infrared beam | 1 Pair |
| Number of trouble-free runs | 5 million times |
| Average life span | 6 million times |
| Channel width | 600mm~1600mm |
| Door wing material | ￠25mm Stainless steel |
| Product Size | ￠200mm x height 1050 mm |
| Channel frame | National standard 1.5mm 304 stainless steel |
| Package weight | About 25 KG (single side road) |
