HCW DC140W Road Gate Barrier High Speed Rising Arm Barrier IP54
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE/ISO 9001 |
| Model Number | CW238 |
| Minimum Order Quantity | 2 pieces |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Product Details

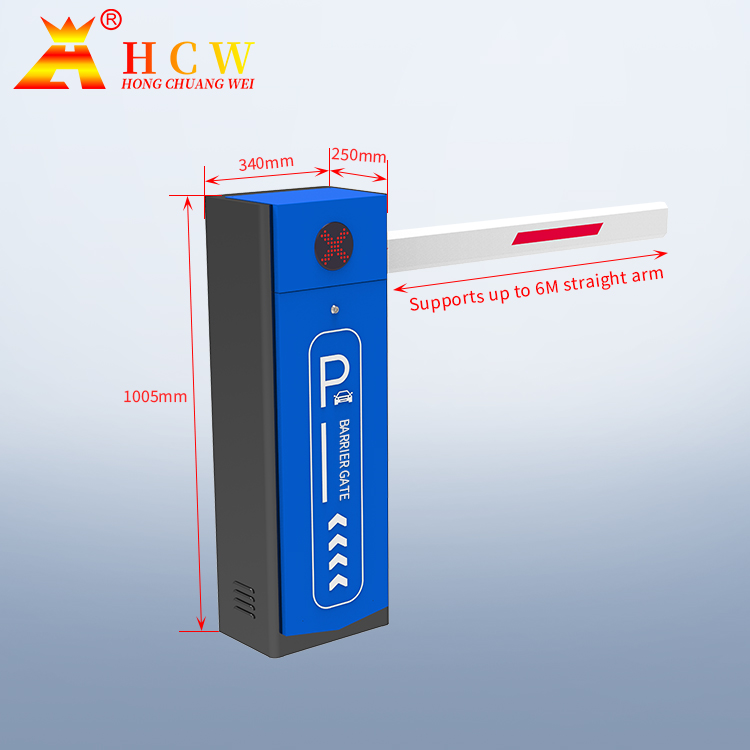

| Material | Cold Rolled Plate | Size | 340*300*1000(mm) |
|---|---|---|---|
| Voltage | 220V±10%, 110V±10% | Motor Rate | DC140W |
| Barrier Arm Length | Max 6 Meters, Default 3 Meters | Working Temperature | -35℃~+75℃ |
| Protection IP54Class Of Parking Barrier Gate | IP54 | ||
| Highlight | IP54 road gate barrier,DC140W road gate barrier,DC140W rising arm barrier |
||
Product Description

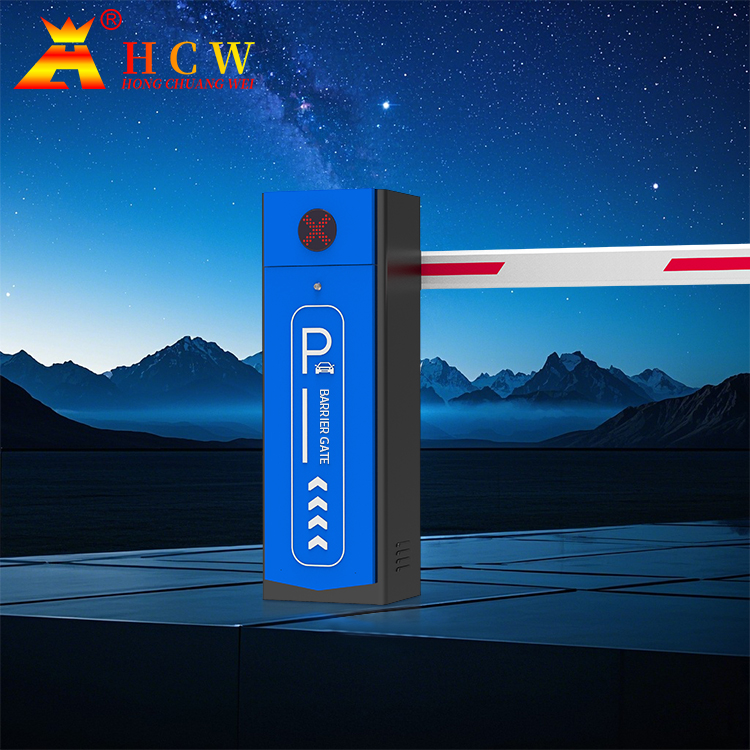

Boom Barrier Gate System High Speed Barrier Gate For Car Parking Management
Automatic Barrier Gate for Parking Lots provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle especially at apartment,for parking lots with high traffic flow such as toll gate,shopping center,exhibition center,hospitals, airports etc.

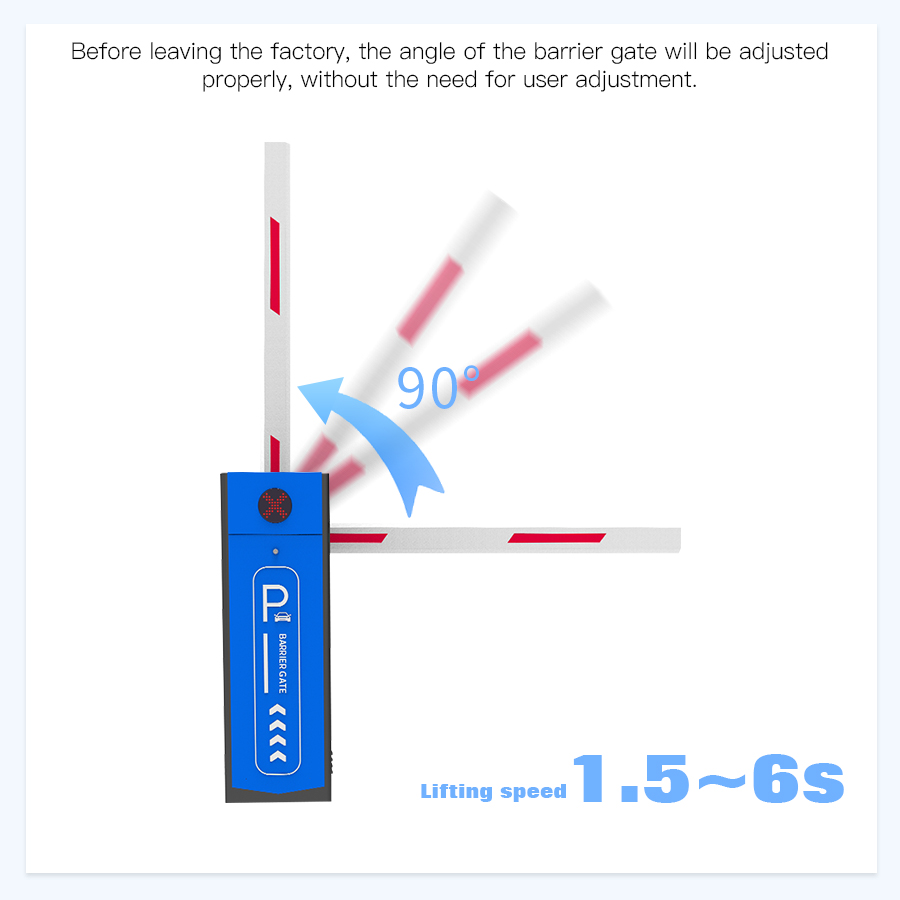

1. The speed can be ajusted from 1.2S-6S
2. Buffering speed.The pole will slow down to before positioning.It makes the rod run more stable and vibration amplitude smaller.Long life;
3. Rebounce.When the pole falls into the obstacle,it will automatically rebound.No additional pressure sensors or ultrasound are needed.
4. Horizontal position adjustment.This one can adjust the horizontal angle and the vertical angle in the main board to calibrate the position
which is totally different with others
5. It can be lifted or dropped manually when power failure.
| Take-off and landing time | 1.5S 3S 6S |
| Working temperature | -25℃～+75℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC 220V／50HZ |
| Fuse specification | φ5×20 5A |
| Power output | DC 12V ≤0.2A |
| Fall limit output | dry contact signal, normally open |
| Ceiling output | dry contact signal, normally open |
| Receiver working voltage | DC 5V |
| Encoder working voltage | DC 5V |
| Operating voltage of limit switch | DC 5V |
