Access Control Speed gate Face Recognition Turnstile Swing Barrier IP55 50/60Hz

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW429
Minimum Order Quantity 2
Price USD400~750 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Speed Gate Turnstile Material 304 Stainless Steel
Case Thickness 0.983mm Top Cover Thickness 1.113mm
Lane Width 520mm Pass Direction Bidirectional
Waterproof IP55 Outdoor Use Support
High Light

50Hz Face Recognition Turnstile


IP55 Face Recognition Turnstile


IP55 swing barrier turnstile

Leave a Message
Product Description

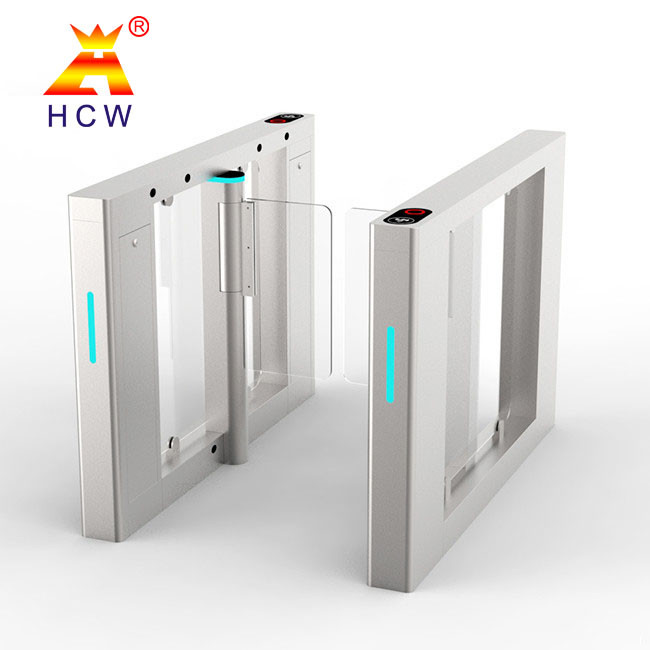

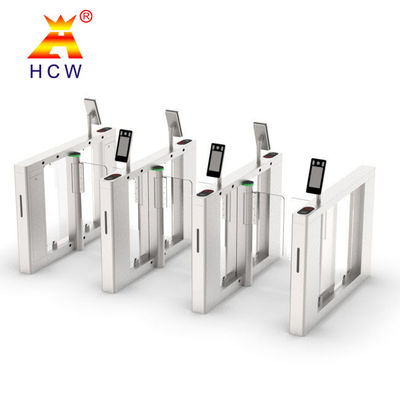

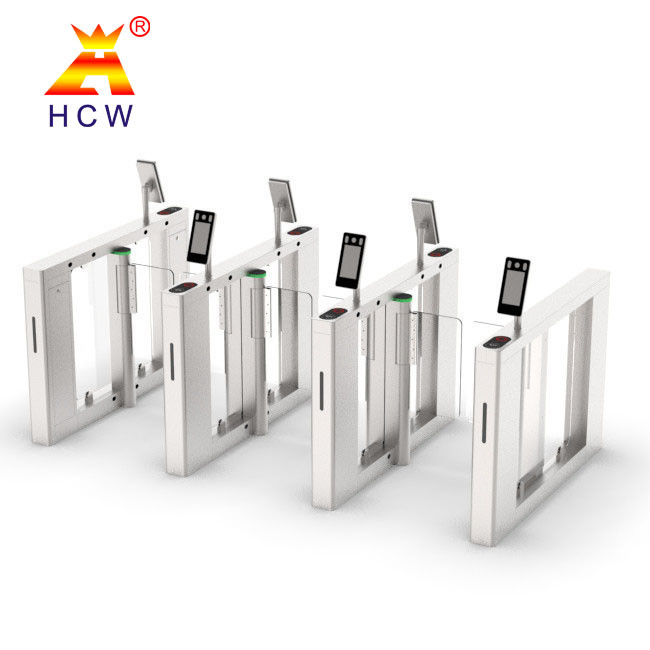

Robust mechanical part face recognition turnstile outdoor use



Product Application

Speed Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.


1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card, and IC card.

2) DC Brushless Motor, Maintenance Free

3) On-line or offline mode(optional)

4) Real-time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

5) With direction indication, guiding passengers to entry and exit.

6) Self automatic locking to prevent force passing without the card

7) Automatic counting and displaying number of passengers, facilitating observation and a displaying total amount as high as 90,000

8) Light and sound alarm indication function, preventing illegal entry or irregular passing


Green means passage
Power supply for core
AC100~220V 50/60Hz
Operational voltage
DC 24V ±5%
Voltage of indicator
DC12V ±5%(standard)
Power consumption
Working environment
Indoors or outdoors(outdoor is optional)
