5 Million Life Time Servo Motor 0.3s High Speed Barrier Turnstile Gate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Speed Turnstile Gate | Motor | Servo Motor |
|---|---|---|---|
| Life Time | 5 Millions | Open/close Speed | 0.3s |
| Infrared Sensor | 8 Pairs | Material | 304 Stainless Steel |
| Case Thickness | 1.5mm | Size | L1600*W120mm*H980mm |
| Highlight | 10000 Face Flap Turnstile Gate,50HZ Flap Turnstile Gate,50HZ turnstile swing gate |
||
Product Description

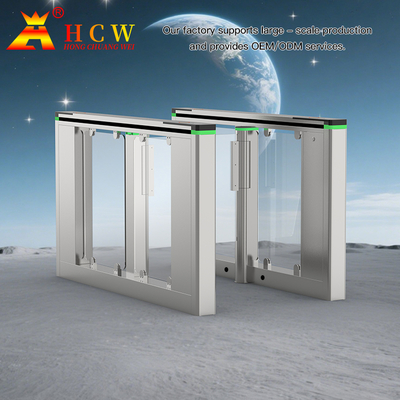

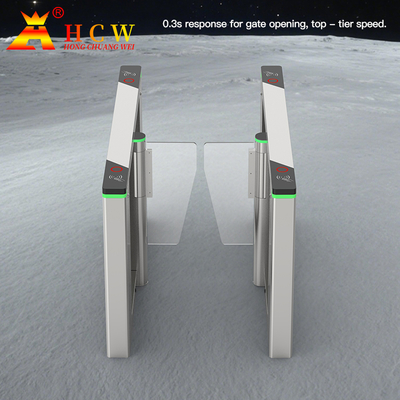

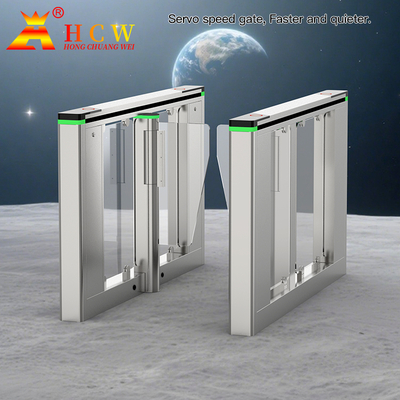

Servo motor 0.3s high speed barrier turnstile gate
Overview:
CW427 high-end speed pass anti-collision turnstile gate, adopts servo drive + high-speed servo motor, 10 millions working life time,and the door open or close just need 0.3 seconds.with 1.5mm thickness 304 stainless steel case,8 pairs of infrared detection sensors, high stability, high safty and anti-tailing.
Military-Grade Security Protection
-
Dynamic Torque Detection: Instant reverse upon obstruction (force ≤30N), eliminating pinching risks
-
3D Anti-Tailgating: Dual detection with infrared + millimeter-wave radar, tailgating recognition rate >99.7%
-
Emergency Escape: Power-off auto-drop/free swing mode, compliant with fire safety regulations
Omni-Scenario Intelligent Recognition
Seamless integration with:
✅ Facial recognition terminals ✅ QR code scanners ✅ RFID card readers
✅ Fingerprint ✅ Visitor appointment systems
Extreme Environmental Adaptability
-
IP54 protection rating: Dustproof and waterproof, stable operation from -30℃ to 60℃
-

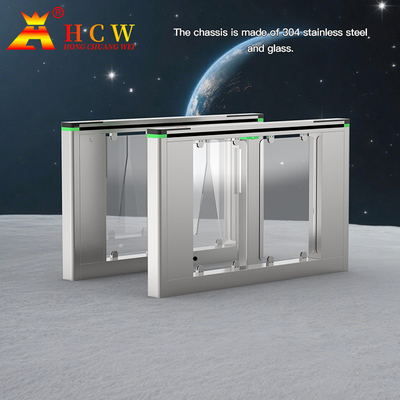

304 stainless steel + tempered glass construction, impact resistance meets JIS A4706 standard
Smart Management Cloud Platform
Real-time monitoring of passage data and device status, supports remote parameter adjustment, fault alerts, and big data analytics, empowering digital upgrades for smart campuses/transport hubs.
Supports various IC/ID card readers, barcode/QR code readers, fingerprint and face recognition devices,easy to hook up with the access control system. It is widely used in the entrance and exit control of tourist attraction,airport,bus or train station,gymnasium, office buildings, high-end residential areas, government, etc.
| Technical parameter | |
| Product number | CW427 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor type | Servo motor |
| Rated power | 130W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 40~50 people/minute |
| Infrared beam | 8 pairs |
| Number of trouble-free runs | 4 million times |
| Average life span | 5 million times |
| Channel width | 600~900mm |
| Swing arm material | 10mm acrylic door panel |
| Product Size | 1600*120*980mm |
| Channel frame | 1.5 thick 304 stainless steel |
| Package weight | About 65 KG (single side road) |
Barrier turnstile gate functions:
1. Pedestrians are authorized to pass through access control methods such as swiping cards or face recognition. Unauthorized entry will be judged as illegal intrusion and alarm
2. It can pass bidirectional or unidirectional, the direction of passage and the speed of opening and closing doors can be adjusted according to needs, and the fastest speed of opening and closing doors can reach 0.3s
3. barrier turnstile gate is equipped with a total of 8 pairs of infrared sensors, which can accurately determine whether someone is trailing, and once it is found, it will immediately alarm
4. Infrared and mechanical dual anti-pinch, infrared pre-sensing ensures that someone inside the turnstile will not be forcibly closed, even if the turnstile is closed by mistake and pinches a pedestrian, the door will automatically open to reduce injury
5. Anti-collision function, if someone forcibly enters and impacts the turnstile when the door is closed, the turnstile can withstand a maximum impact of 120Nm
6. With various alarm functions, including automatic detection, automatic diagnosis, illegal intrusion, anti-pinch alarm, anti-tailing alarm, etc.
7. The turnstile can be managed and used remotely through a computer
8. Support online and offline use, users can choose by themselves
9. Equipped with LED traffic indicator, the green light means that it is allowed to pass, and the red light means that it is forbidden to pass.
10. After opening the door for a period of time, if there is no one to pass through for a long time, the machine will automatically close the door, and the length of time for no one to pass can be set by the user.
11. With the power-off turnstile self-opening function, it is convenient for pedestrians to pass safely in fire and other emergency situations
FAQ
1. How about the barrier turnstile gate installation?
It is really easy to install and we have done most of the work before sending our turnstiles. You only need to fix the gate with screws and connect the power cord and network cable. Of course, we will provide detailed installation instructions and technical support.
2. How is the quality of your products?
We provide the highest level of quality at the most competitive price. We choose German, Japanese, and domestic leading brand accessories to ensure product quality from the source. In the factory, we implement 5S management to control the production process.
3. What is the delivery time?
Usually we have stocks of hot-selling models of standard products. Generally, it takes 5-10 working days for regular products. It takes 15-20 working days for customized products.
4. How do you do after-sales service?
We provide lifetime technical support through online, email, video, telephone, etc. We have engineers who can speak English to facilitate direct communication with you. If necessary, we can send technicians for after-sales service.
5. How do you guarantee product quality/quality control?
Our products have ISO9001 and CE certificates, and all detailed information can be found on our website. We are committed to providing our customers with the best product quality.
6. Do you provide OEM service?
Yes, we can provide the following OEM services:
1) We can customize the turnstile according to your needs.
2) We can print your logo on the turnstile, and customize retail box packaging and other things you need.
