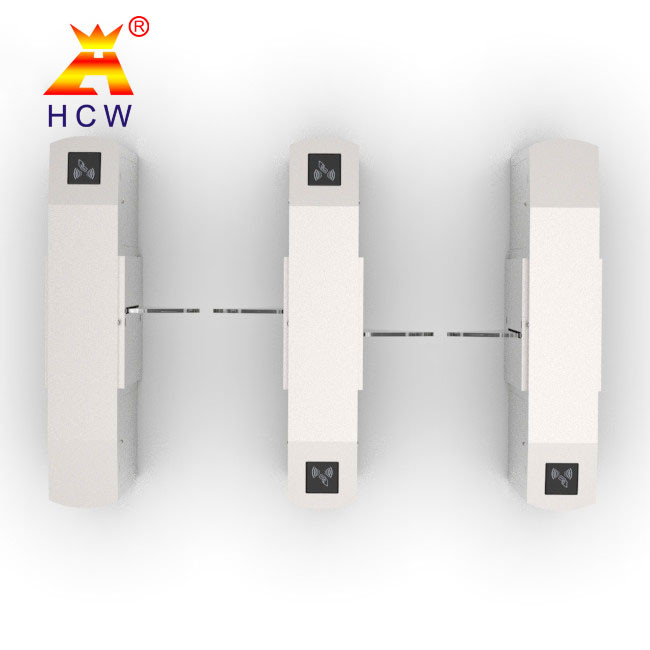

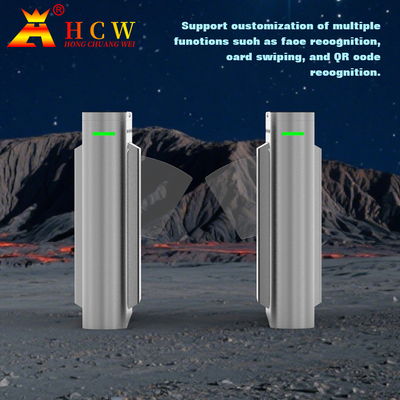

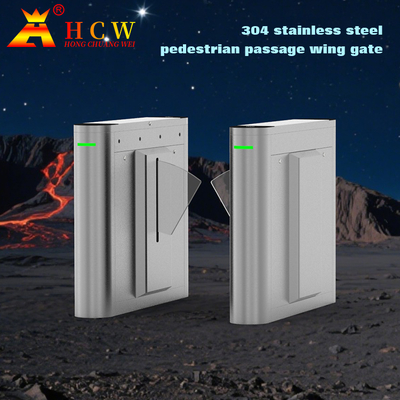

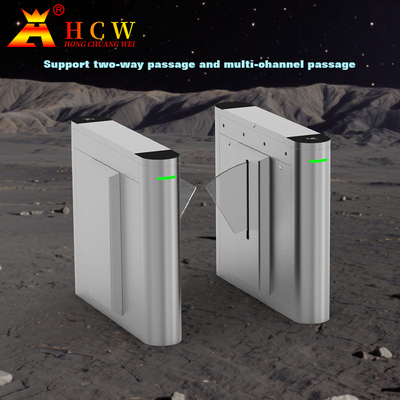

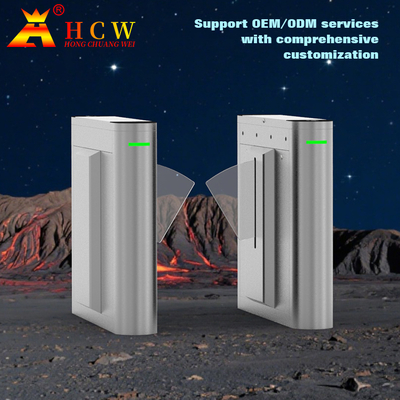

Premium 304 Stainless Steel Smart Swing Gates for Pedestrian Access, Supporting Face Recognition, QR Code Scanning and Card Swiping, Suitable for Subway Stations and Office Buildings
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE |
| Model Number | CW592 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Model | CW592 | Power Supply Voltage | AC230V |
|---|---|---|---|
| Working Environment Temperature | -25℃~70℃ | Relative Humidity | 90% |
| IP Protection Level | 42 | Rated Power | ＜150W |
| Input Control Signal Switch Quantity | Standard Configuration Does Not Include RS232, 485 | Running Speed (XX People/minute) | 35 People/minute |
| OEM/ODM | Support | ||
| Highlight | RS485 retractable flap barrier,25W retractable flap barrier,RS485 qr code turnstile |
||
Product Description
Outdoor Waterproof 304 Stainless Steel Swing Gates - Pedestrian Access Gates for Residential Communities and Malls
In today’s world where exceptional security and efficient passage are pursued, every detail matters. We bring you 304 stainless steel pedestrian swing gates that combine sturdiness and durability, elegant modernity, and intelligent precision—an ideal solution for entrance and exit management in office buildings, industrial parks, subways, airports, venues, and other locations.
Stainless Steel Material, Timeless Elegance
Outstanding Safety, Guarding Every Passage
Efficient Passage, Smart and Convenient
Stable and Durable, As Good As New For Years
Elegant Design, Enhancing Environmental Style
Flap Barrier Advantage:
1. Problem-self-checking function.
2. Arm Turning: Bi-direction
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be
set in the control panel.
5. Auto-reposition function: After card read, passenger doesn't pass within regulated time, turnstile
will cancel order automatically. And the regulated time can be set by managers.
6. Anti-rush function: if there is no open signal, arm will be holding tightly.
7. Stable running with little noise.
| Technical parameter | |
| Product number | CW592 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Rated power | ＜150W |
| Direction of passage | One-way or two-way |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30-40 people/minute |
| Infrared beam | 4 pairs |
| Number of trouble-free runs | 3 million times |
| Average life span | 4 million times |
| Channel width | 550mm |
| Swing arm material | 10mm acrylic door panel |
| Product Size | 1200*300*980mm |
| Channel frame | 1.0~1.2mm thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
