SS304 Flap Barrier Turnstile Pedestrian Access Control System 25W For Airport

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW510
Minimum Order Quantity 2
Price USD280~450 per piece
Packaging Details wood cases
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Model CW510 Power Supply Voltage AC220V±10%, 50HZ±10% HZ
Working Environment Temperature -15℃~71℃ Relative Humidity 91%
IP Protection Level 55 Rated Power 25W
Input Control Signal Switch Quantity Standard Configuration Does Not Include RS232, 485 Running Speed (XX People/minute) 40 People/minute
High Light

SS304 Flap Barrier Access Control System


25W Flap Barrier Access Control System


SS304 airport turnstile

Leave a Message
Product Description

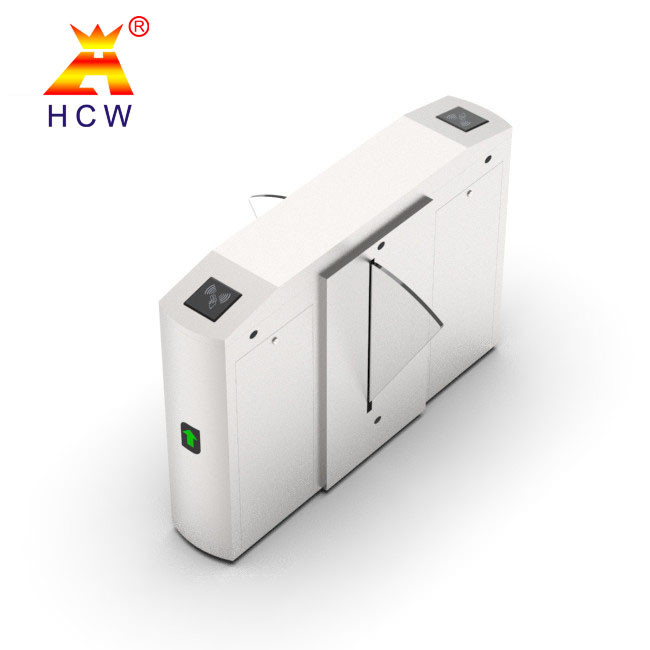

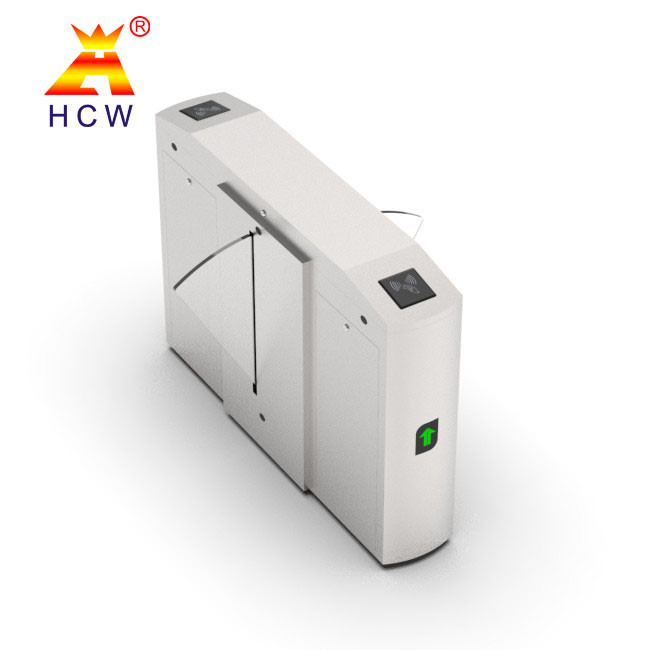

SS304 Flap Barrier Turnstile Pedestrian Access Control System 25W For Airport


The device designed to assist pedestrian access control at guarded passage ways inside buildings. Examples of use: points of ticket control and access control for passenger traffic, airports/seaports, passages for authorized personnel, directing passenger traffic, points of access control in secured buildings (e.g. state offices such as border crossing points, other services), points of ticket control and fees at museums, theaters, cinemas, exhibitions, fair areas, show facilities, paid toilets, points of ticket control at sports facilities, e.g. swimming pools, stadiums, other sports and show facilities, access and time attendance control points in working places, e.g. offices, dedicated areas in factories


Anti-pinch function, when the door wing is blocked during the reset process, it will automatically rebound or the motor will automatically stop working within the specified time, and sound and light alarms will be issued at the same time
Anti-shock function, when the door opening signal is not received, the door wing is automatically locked, and the maximum impact force is 120Nm
With self-detection, self-diagnosis, and automatic alarm functions; sound and light alarm functions, including illegal intrusion alarm, anti-pinch alarm, and anti-tailing alarm
When the power is cut off, the door wing automatically retracts into the chassis, the passage is in a clear state, and personnel can pass freely to prevent panic
With automatic reset function, after opening the door, the system will automatically cancel the user's permission to pass this time and set the pass time if the user does not pass within the specified time



Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 850mm
Door wing material Plexiglass double wings
Product size length 1200mm x width 300mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)
