Residential Barrier Turnstile Gate All In One Card Swipe Card Induction Channel Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW403
Minimum Order Quantity 2 piece
Price USD330~550 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material SS304 Size 1400x200x1000mm
Surface Treatment Brushed Weight 60kg
Card Reading 5.3cm Bar Code Scaning Support
QR Code Support Fingerprint Identification 3033
Face Recognition 20033
High Light

Waterproof barrier turnstile gate


Swipe Card Barrier Turnstile Gate


SS304 Brushed Turnstile Barrier Gate

Leave a Message
Product Description

Residential all-in-one card swipe card induction channel gate


1. Product introduction

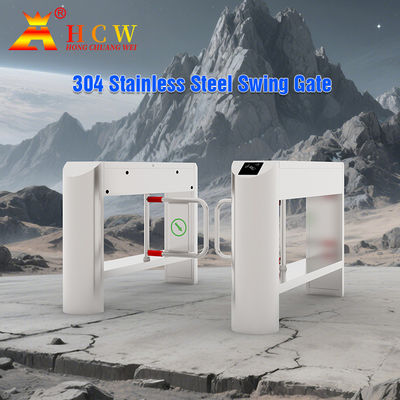

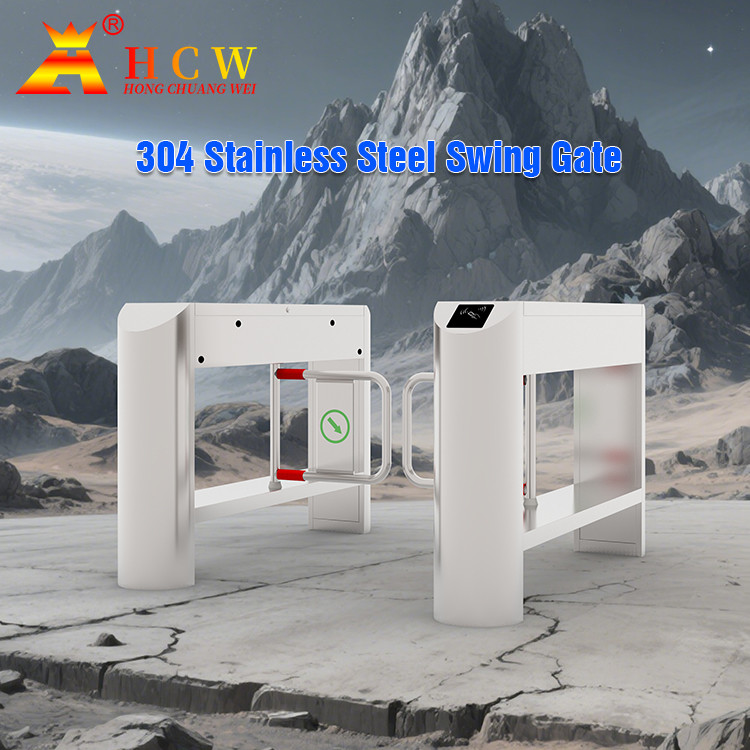

◇Structure: The whole product is made of 304 stainless steel, which is rust-proof and durable. The equipment is easy to use and maintenance-free.
◇ Dimensions: length 1200 × width 280 × height 980 (mm)
◇ Weight: 60Kg
◇ The two ends of the box are not wrapped: the length of the brake rod: standard 600 (mm) (can be customized, the longest does not exceed 900mm)
◇ Edge wrapping at both ends of the box: the length of the brake rod: 500 (mm) (the rod length can be lengthened according to the length of the box)
◇ Brake lever steering: one-way, two-way (optional)
◇ Working environment: indoor, outdoor (preferably with awning)
2. Features
1) It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use;
2) It has automatic opening after power failure, self-checking when incoming calls and automatic recovery in locked state
3) There are a variety of working modes to choose from, you can read the card in both directions, or you can read the card while the other direction is prohibited, while the card is read, and the other direction is free to pass, and the working mode of the gate can be set through the main board menu. Certainly.
4) When the pedestrian reads the valid card, the infrared detection will automatically close the gate or delay the gate after the pedestrian passes. The delay of 1-60 seconds can be set by the main board menu.
5) With automatic reset function. After the valid card is read, if the passer does not pass within the specified time, the system will automatically cancel the passer's current pass authority, and the limited pass time can be set by the administrator.
6) It has 485 remote control opening and closing functions to meet the special needs of users and fire safety requirements.
7) Anti-shock function, the swing arm is automatically locked when no signal of opening the gate is received;
8) Mechanical anti-pinch function, when the swing arm encounters resistance in the process of resetting, it will automatically rebound or the motor will automatically stop working within a specified time, and the force is very small, and an alarm signal is issued at the same time;
9) It has a unified and standard external electrical interface, which can be connected with various reading and writing equipment, which is convenient for system integration, and can realize remote control and management through the management computer.
10) It can automatically count the number of people passing by in the direction of traffic, and present it to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing by in a certain direction.
11) It has a clear function of indicating the direction of passage, with intuitive LED passersby indicating whether passage is allowed or prohibited.
12) It has the function of reading card with memory and without memory, and users can set it through the motherboard keyboard according to their own needs.
13) Through software setting, the total number of personnel in the venue can be limited to meet the special needs of some special occasions.
14) The whole system runs smoothly with low noise;
3. technical parameter
1) Working voltage: AC220±10%V, 50HZ
2) ,Motor power: DC motor 100W/24V
3), working environment temperature: -15OC - 70 OC
4), relative humidity: relative humidity ≤ 90%, no condensation
5) Input interface: 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
6) Communication interface: RS485 electrical standard,
7), the maximum channel width: 1200mm
8), gate opening and closing time: 2.5 seconds
4. Scope of application:
It is suitable for import and export channels for one-way or two-way control of people flow.
◇ Station, wharf, tourist attraction entrance and exit channel
◇ Ticket inspection channels for exhibitions, swimming pools, etc.
◇Import and export attendance, access control, consumption management of communities, factories, enterprises and institutions
◇Special channel control
◇Suitable for bicycles, motorcycles, disabled access


1. What is your company's strength in this field?
We are the one of the greatest head leaders in this field. We are ISO approved factory, taking place of over 8,000 meters squareregion, with 100+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers.So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.

2. How do you guarantee your quality of product / quality control?
We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.

3. Do you provide OEM service?

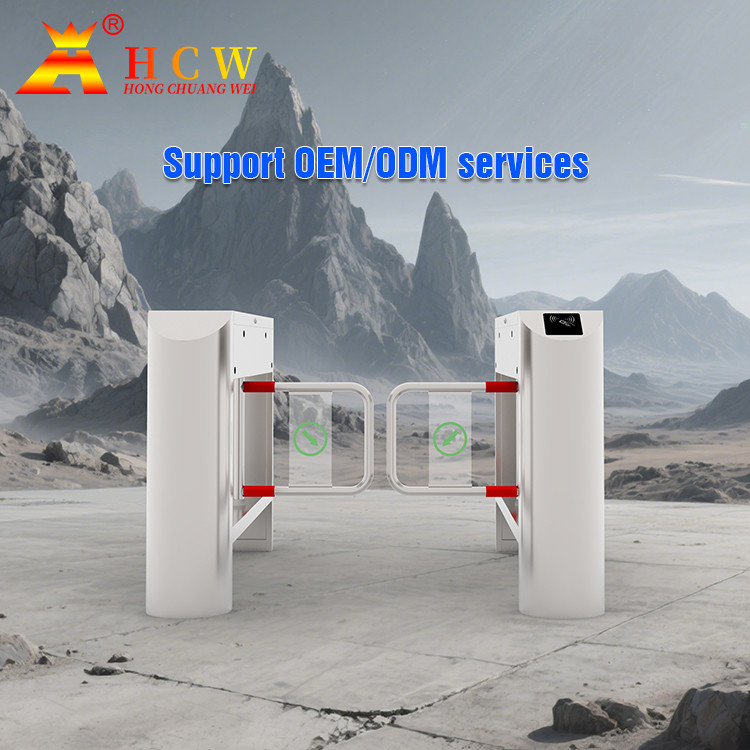

Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.

4. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package or logo, 3-10working days longer



Power supply voltage


Working temperature



Relative humidity Less than 95%, no condensation
Maximum channel width 510mm
Pass speed 20-30 people/minute (IC card)
