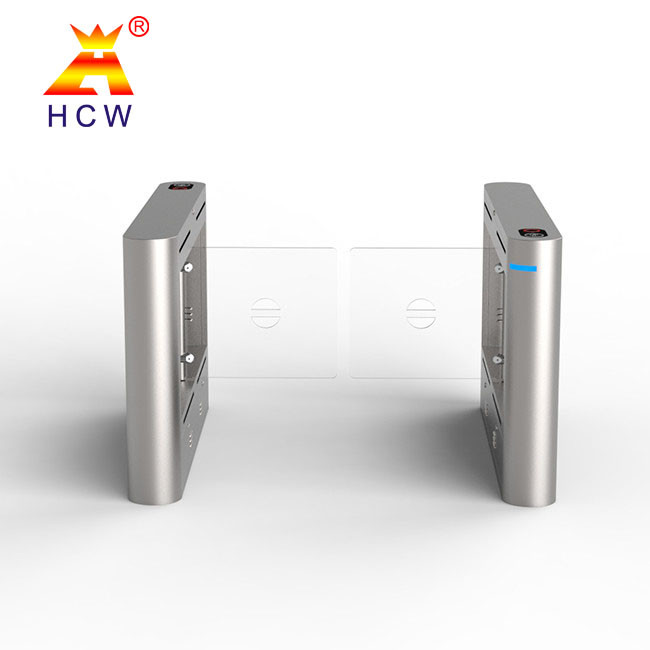

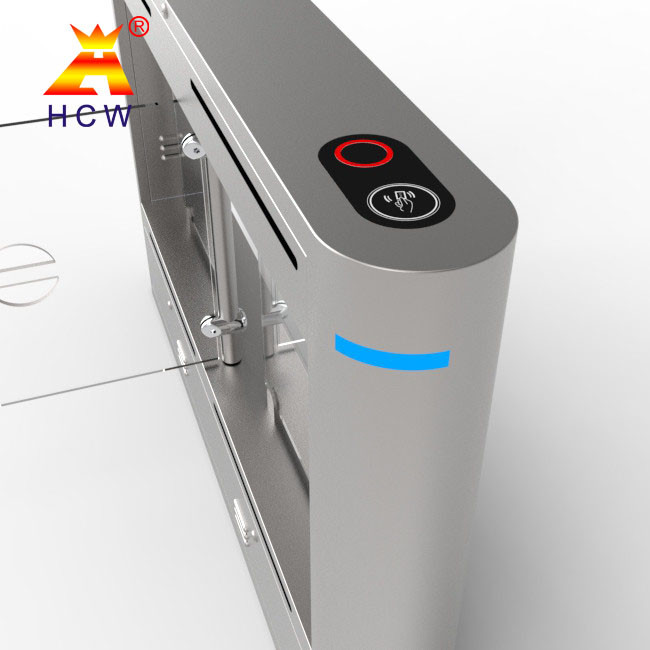

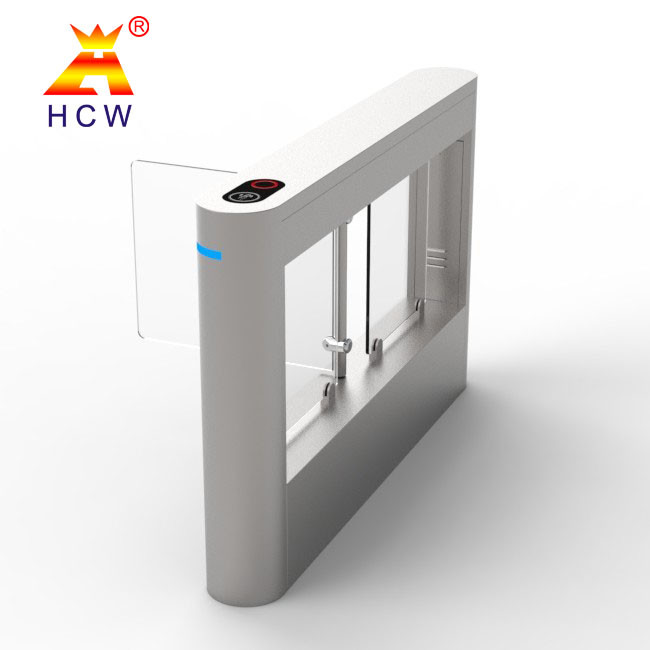

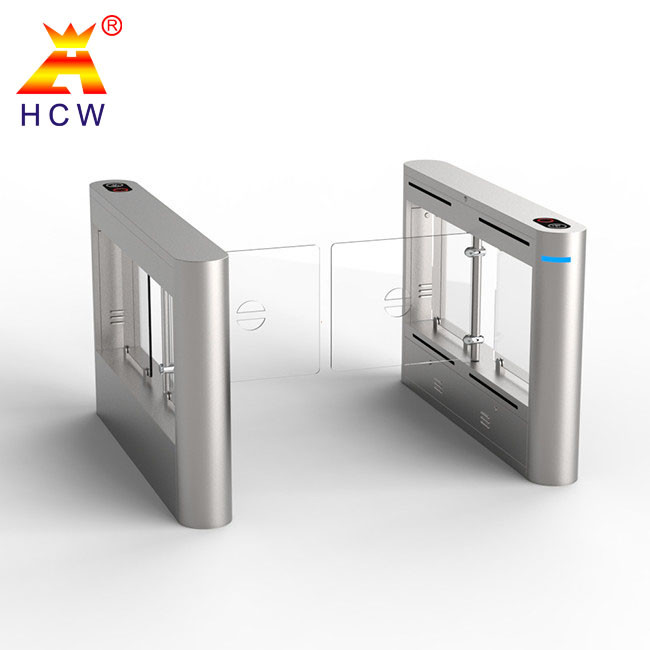

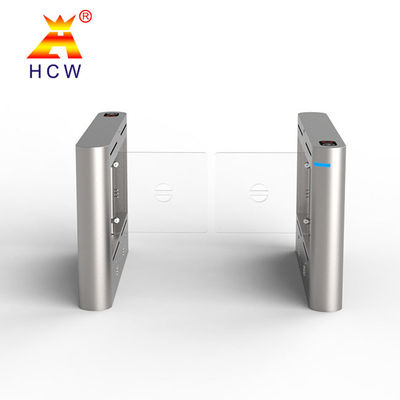

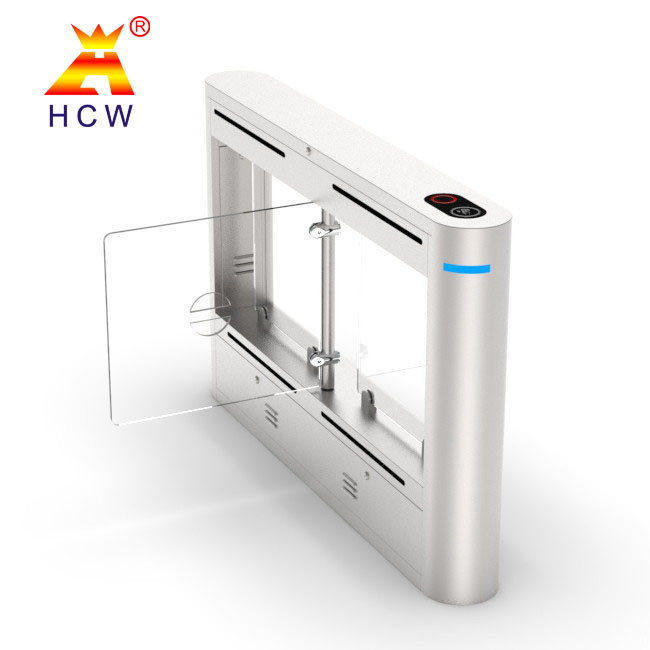

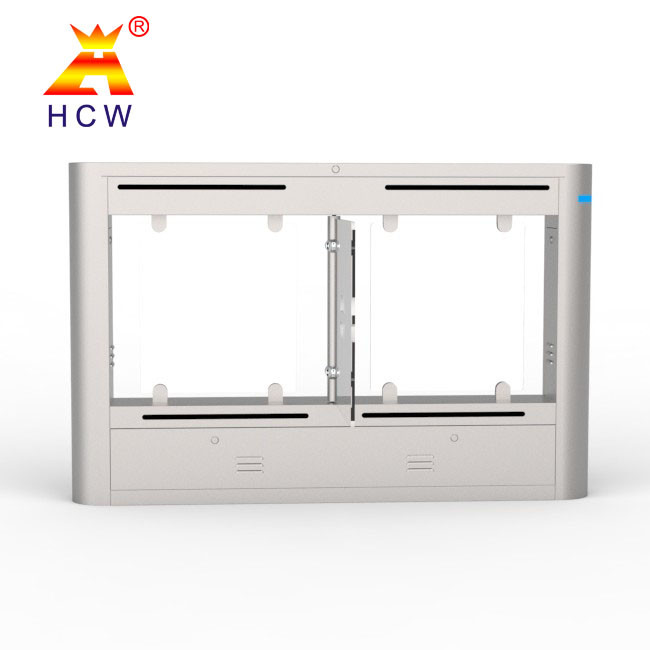

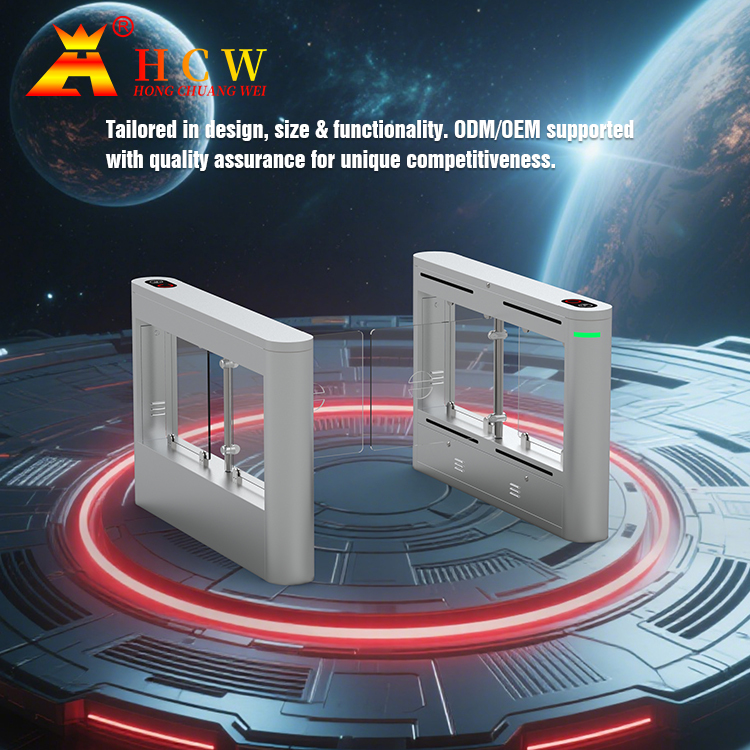

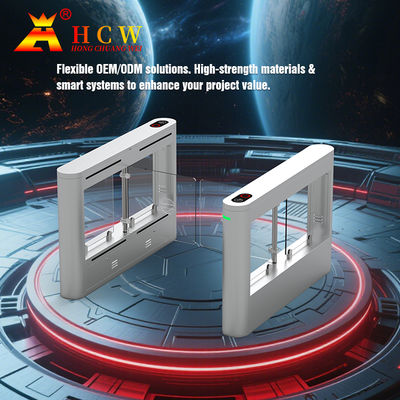

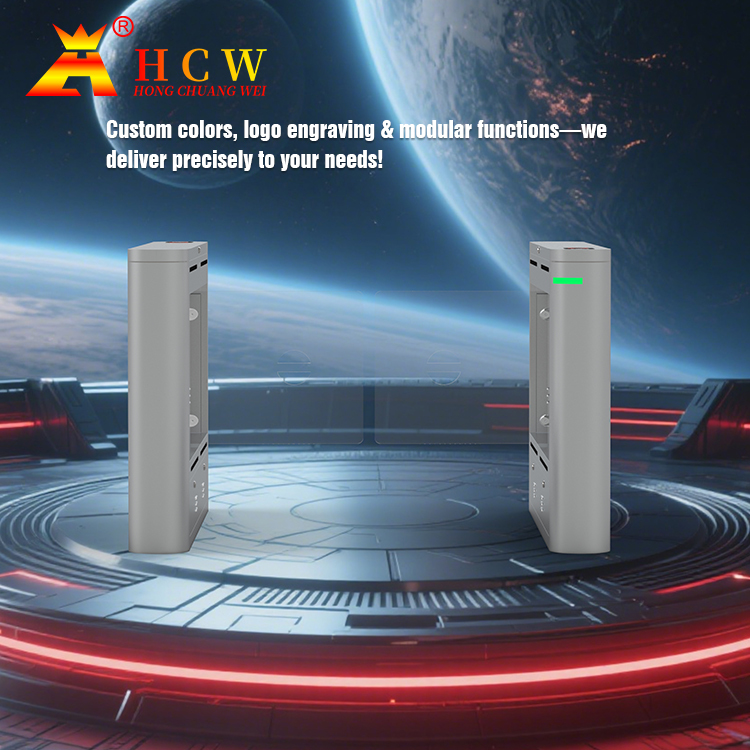

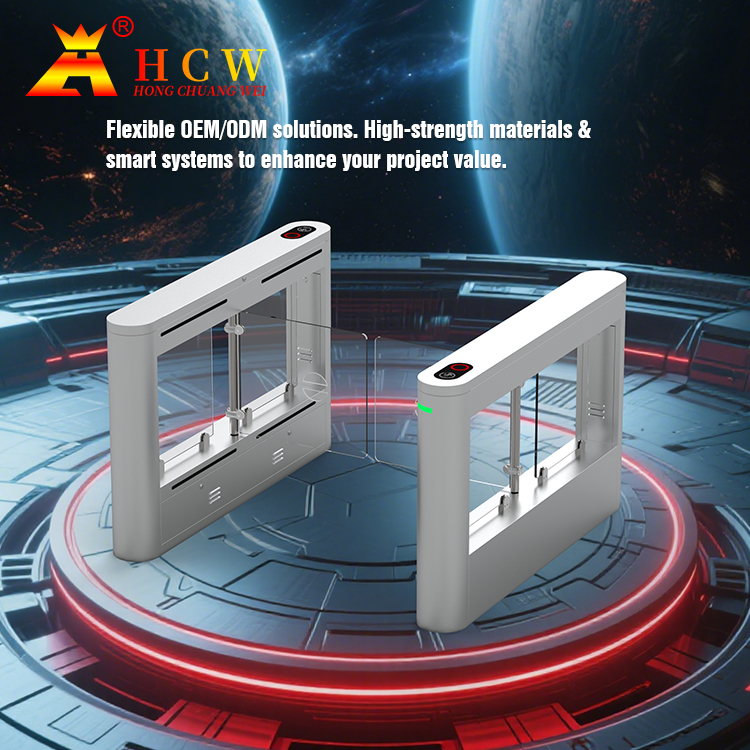

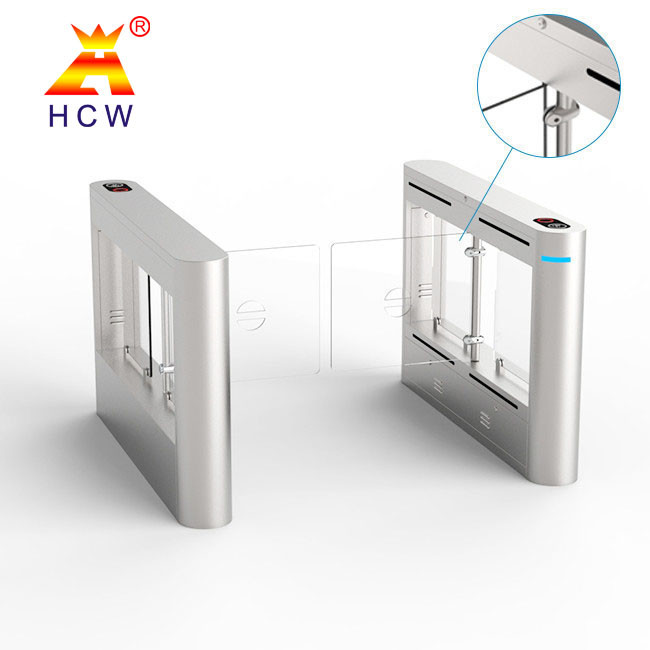

Pedestrian Swing Turnstile Gate 304 Stainless Steel Cabinet With Face Recognition

Pedestrian passage swing gate face recognition gate area gym use

1. Main functions and features
1) It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use;
2) Through the built-in small button on the main control board, the running status of the programmable device;
3) The mechanical structure has anti-pinch and anti-collision functions. When the swing arm encounters resistance during the reset process, the motor automatically stops working within a specified time, and resets again after the default delay (until reset), and the force is very small ( ≤2Kg);
4) Anti-shock function, the swing arm is automatically locked when no signal of opening the gate is received;
5) Swing arm synchronization function (for double pendulum, split case);
6) It has an automatic reset function. After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass this time;
7) Normally open or normally closed can be adjusted to meet the requirements of different venues;
8) Induction or delay automatic reset, the standard is 5 seconds after opening (adjustable) automatic reset;
9) The swing arm automatically swings open when power off, and automatically closes when powered on, which meets fire protection requirements
2. Technical parameters:
1.1 Construction: 304 gauge/2.0 and 1.0 stainless steel housing
1.2 Dimensions: length 1400*width 300*height 1000mm
1.3 Weight: 40Kg-60Kg
1.4 Swing arm length: 600mm-1200mm (can be used alone or in pairs, it is recommended to choose guardrail)
1.5 Swing arm bearing capacity: 30Kg
1.6 Swing arm transmission angle: 180 degrees
1.7 Swing direction: bidirectional
1.8 Working power supply: AC220 ±10%V/50 ±10%HZ
1.9 Drive motor: DC brush motor (24V)
1.10 Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
1.11 Communication interface: RS485 standard communication distance ≤ 1200 meters
1.12 Traffic speed: 40 people/min (normally open), 25-30 people/min (normally closed)
1.13 Gate opening and closing time: 1-2 seconds
1.14 Time required to enter the traffic state after power on: 3 seconds
1.15 Automatic reset time after failure: 10 seconds
1.16 Working environment:
◇ Indoor, outdoor (shade)
◇ Temperature: -10℃—— 50℃
◇ Relative humidity: ≤90%, non-condensing 3. Main structure and configuration
◇ Main column 1
◇ 1 swing arm
◇ Control board 1 set
◇ Switching power supply 1
◇ Motor 1
◇ 1 set of movement and transmission part

Technical parameter:

Main Functions:

1.Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in.

2.Always open and always closed modes can be flexibly selected, and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment.

3.Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through.

4.Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.

5.Anti-shock function, when the door opening signal is not received, the swing arm is automatically locked, and the swing arm can be opened with a maximum impact of 120Nm.

6.With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, and anti-tailing alarm.

7.Remote control management function.

8.It can be run online or offline.

9.LED passing direction indication, showing passing status.

10.When the power is cut off, the swing arm automatically opens, the passage is in a smooth state, and personnel can pass freely to prevent panic.

11.Automatic reset function: after opening the door, the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the passing time.
