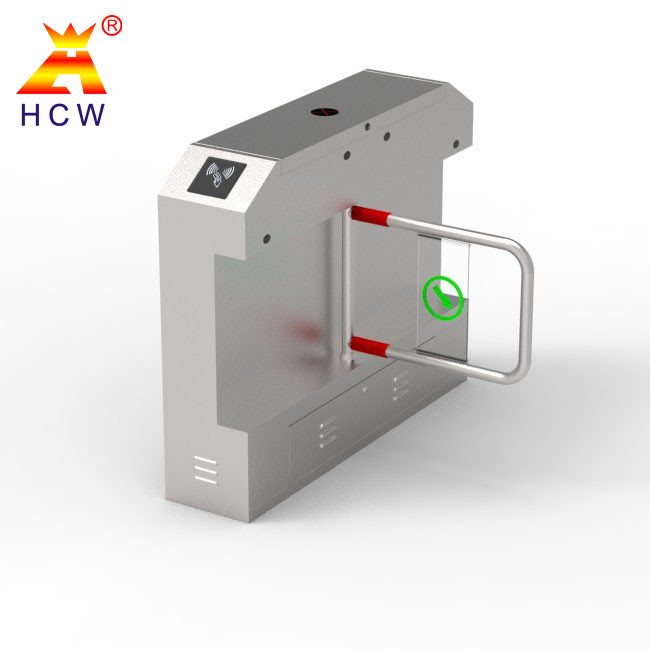

Office Building Access Control System Swing Gate Turnstile For Staff Passage

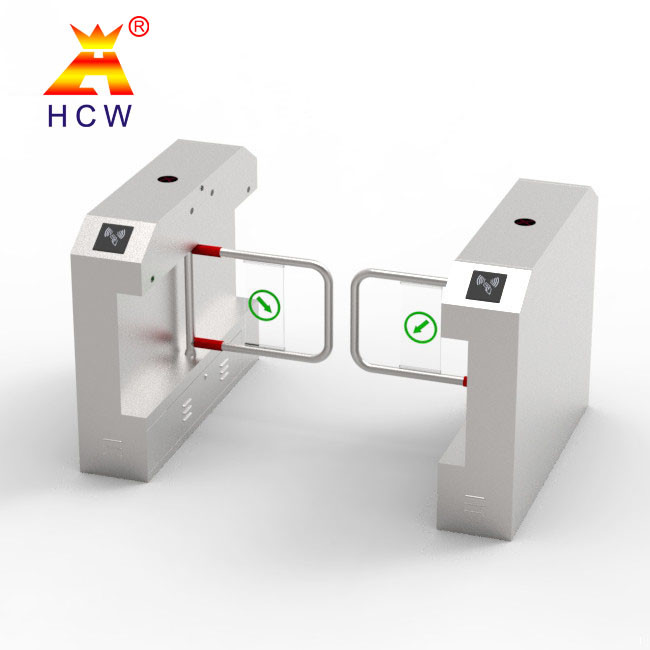

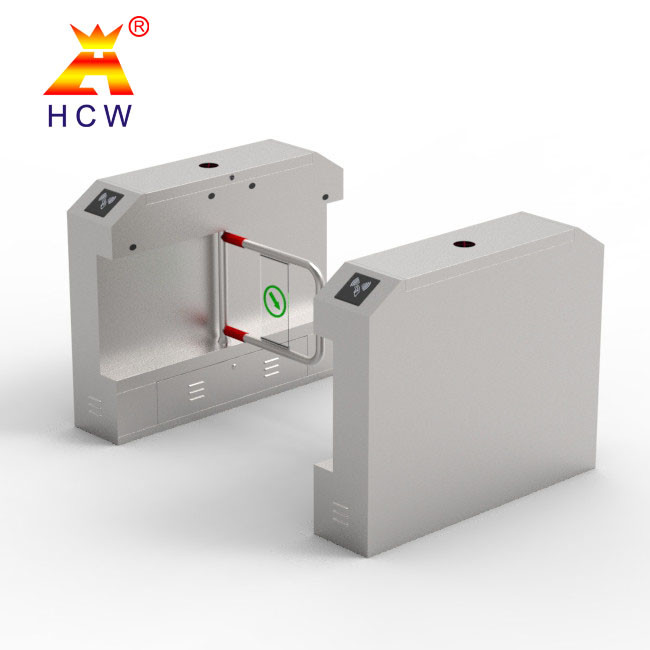

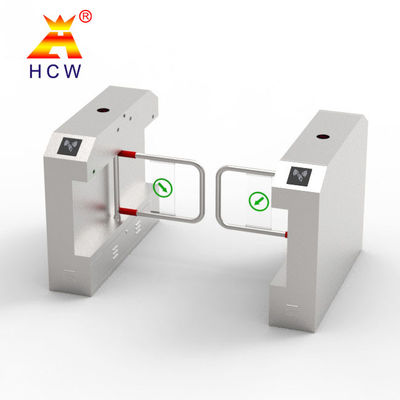

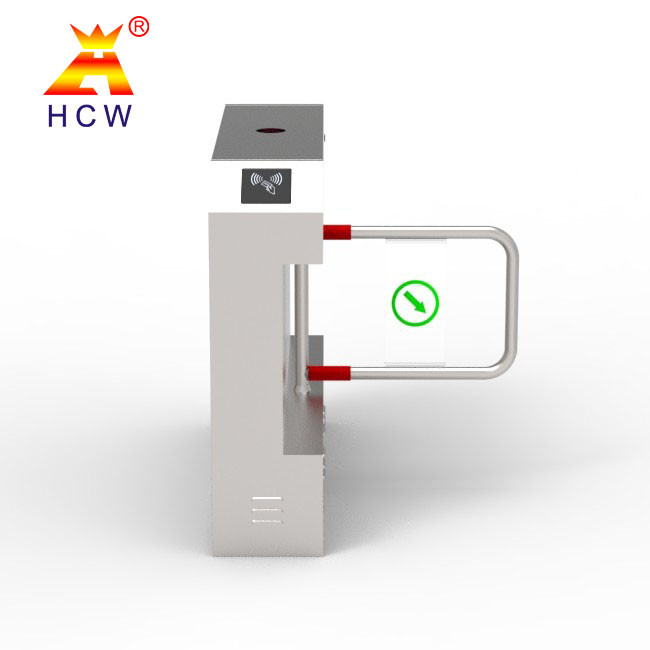

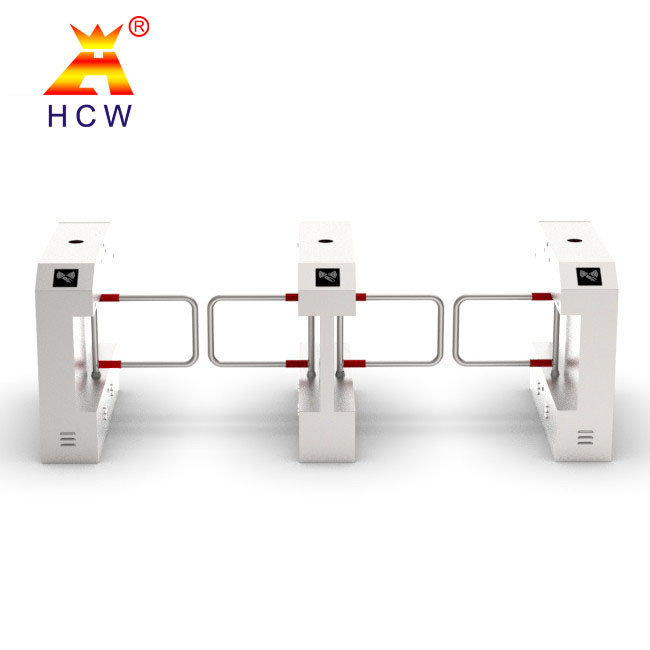

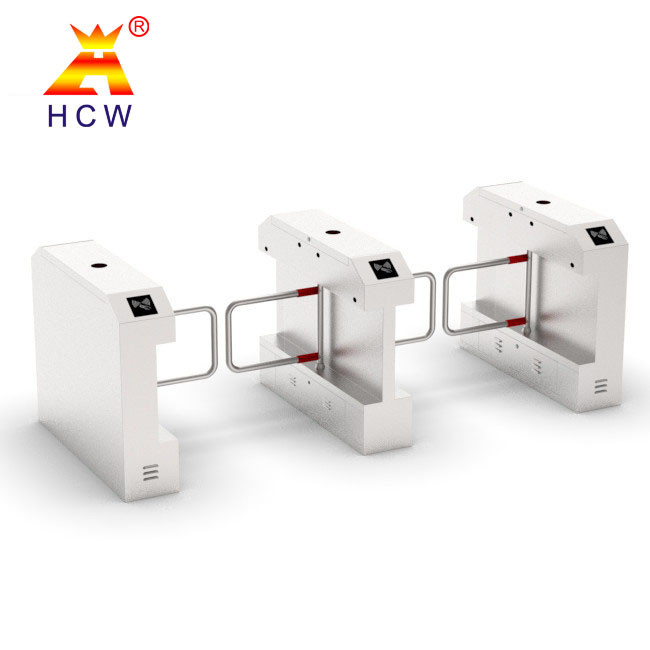

Office building access control system with swing gate for staff passage

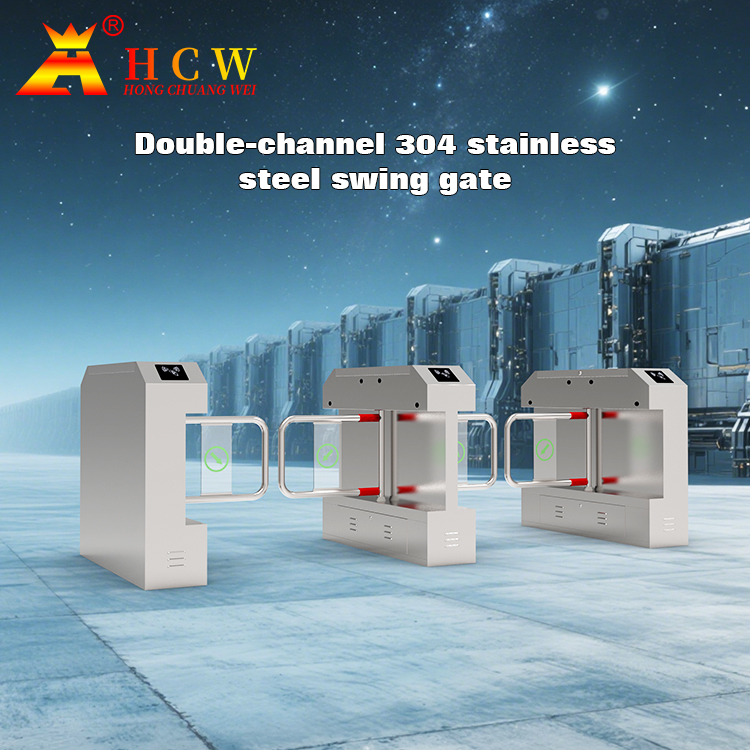

The equipment shell is made of 304 stainless steel, which is laser-cut, bent by a bending machine, and then welded and polished. It is beautiful in appearance, rust-proof and durable.
The main control board is powered by DC24v, the built-in watchdog never crashes, and the built-in self-checking program can judge the running status of the equipment by itself
Infrared sensor, A-level high and low temperature resistance grade, service life 5 million times, standard socket mode

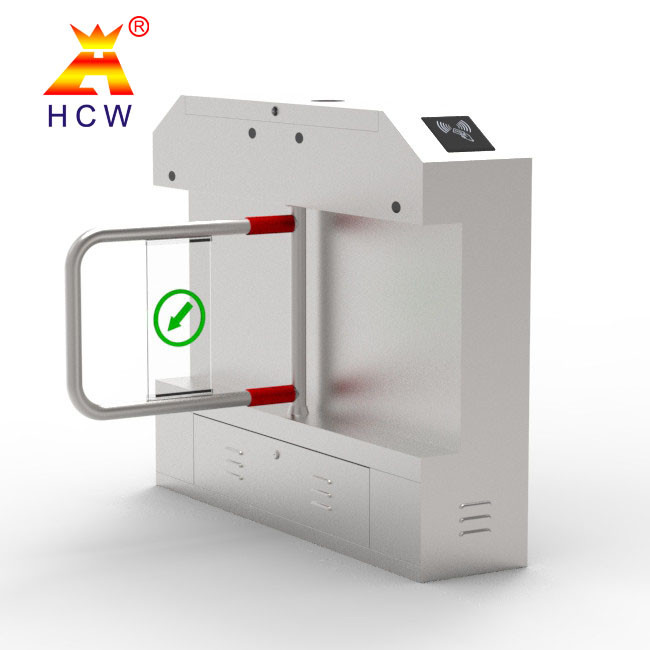

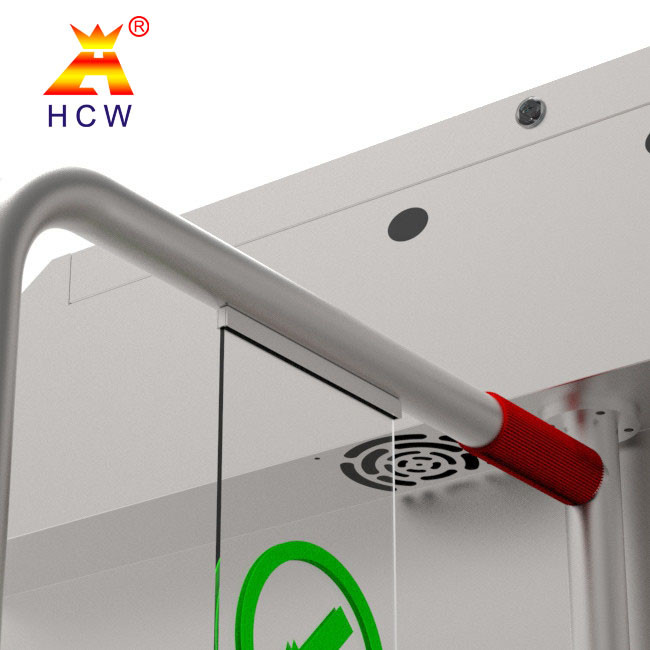

The swing rod is welded from stainless steel, and then the acrylic swing door is fixed with clips
Independent research and development and production of self-locking structure, the switch is automatically locked in place, preventing personnel from manually pushing open the channel
DC24V permanent magnet motor, suitable for the working form of high frequency and low working conditions of channel equipment, with a trouble-free working frequency of 5 million times

1. Problem-self-checking function.

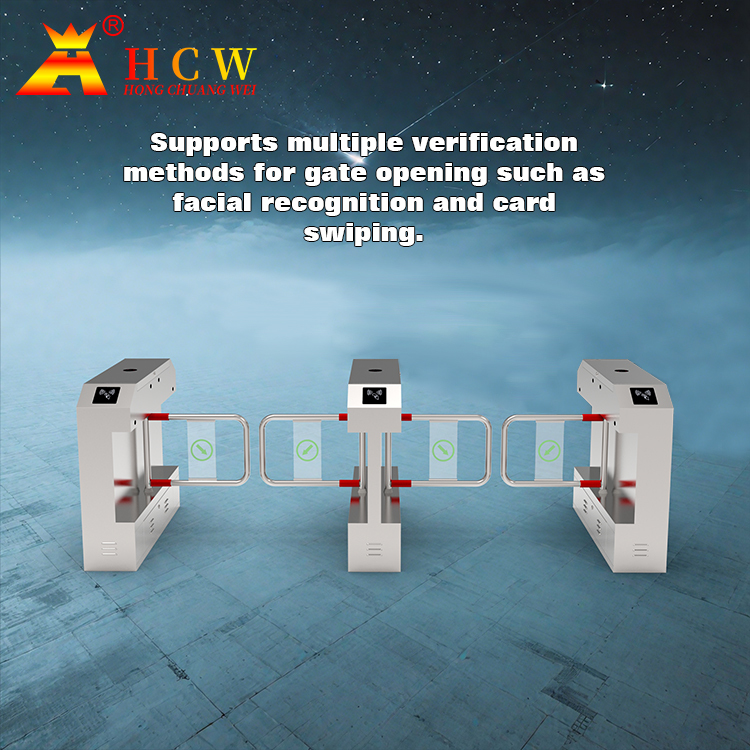

2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.

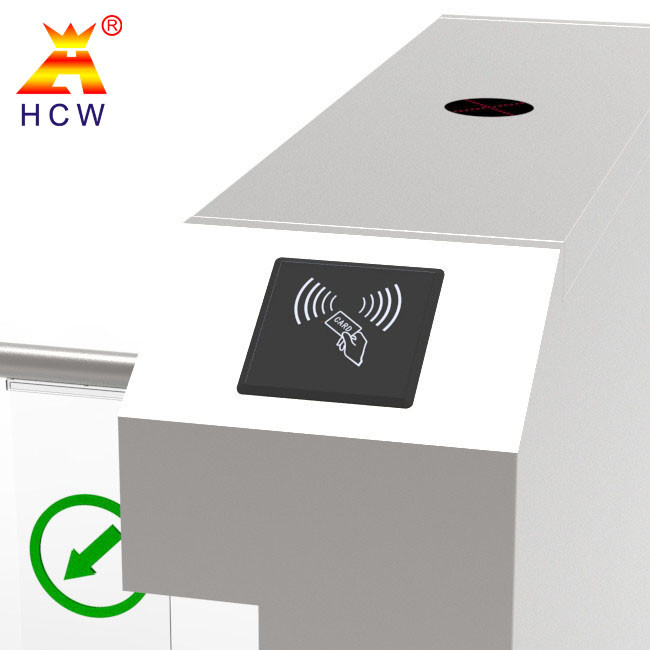

10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
