Building Office Building Pedestrian Swing Gate Turnstile Intelligent Anti Collision

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW403
Minimum Order Quantity 2
Price USD380-680 per piece
Packaging Details wood packing
Delivery Time 3-8 days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Voltage AC220V ,50Hz Working Environment -25℃ To 70℃
Normal Service Life 4 Million Times Number Of Passers 40 Persons/minute
Motor Power 40W IP Protection Level IP 44
Material Standard 304 Stainless Steel Communication Distance Max 400 Meters
High Light

40W Motor swing gate Turnstile


Anti Collision swing gate Turnstile


IP44 pedestrian swing gate

Leave a Message
Product Description

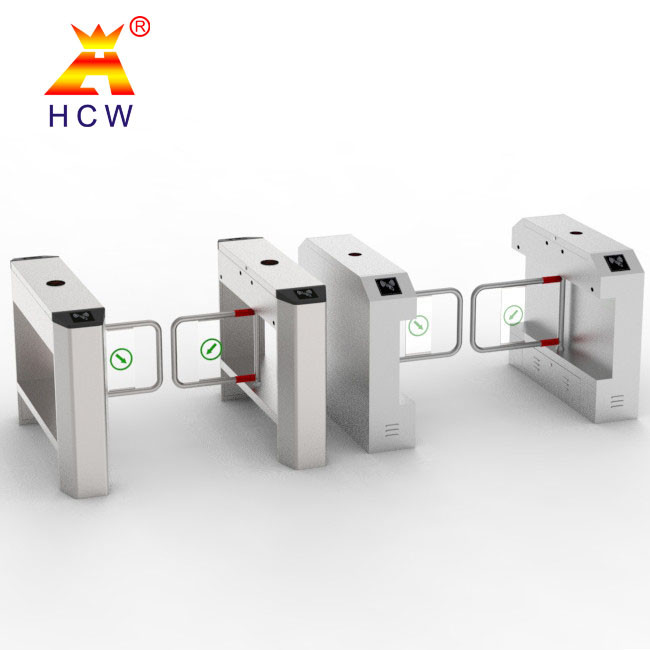

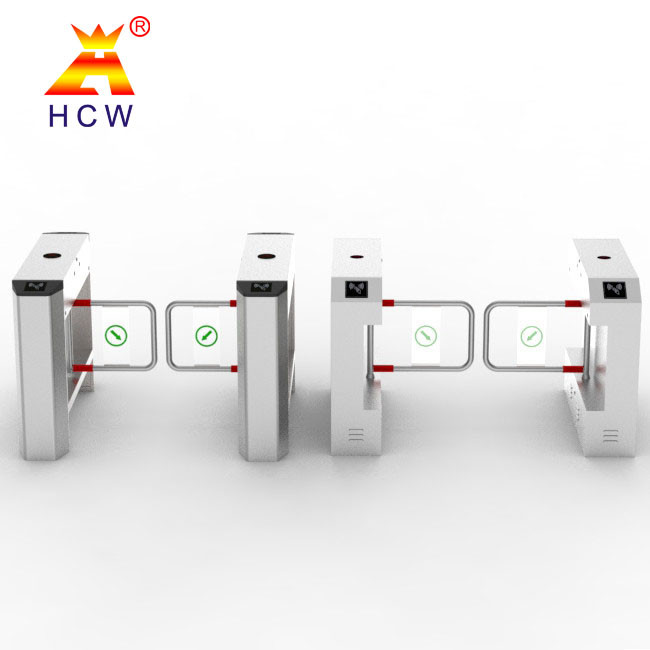

Building office building pedestrian intelligent anti-collision swing gate


Infrared induction, fast pass
When the infrared detects that a person is in the gate or is subjected to external force, the current will change, and the gate will automatically open to prevent accidents.
304 stainless steel material, corrosion resistance, wear resistance, high temperature resistance, oxidation resistance
Powerful motor, good mechanical properties, wide speed range, long service life
Widely used in various scenarios, providing overall access control solutions, such as schools, hotels, communities, cinemas, high-speed rail stations, scenic spots, etc.
It can support various functional customization, the door panel can be engraved with logo, the panel can be screen printed with logo, and the nameplate can be customized
Customizable secondary development interface, the main board supports 485 communication interface, which can be connected with the access control board and face recognition machine
The color of the gate can be customized, the transparent gate can be provided with light passing instructions, and the color-changing LED light can enhance the overall sense of technology



Q1 How fast can I get the quotation?
A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.

Q2 Can I get a sample to check the quality of product?

A Yes. We can send you samples to check the quality within 3-5 days.

Q3 How about delivery time?
A Within 1-2 days for standard products in stock. If it is customized order, the delivery time depends on your exact requirements.

Q4 What is the packaging?
A We provide brown carton box, Wooden frame (optional) and wooden box (optional)we also can make your own designed OEM package.

Q5 What is your terms of delivery?

A We accept EXW, FOB, L/C, etc. You can choose the one which is the most convenient or cost effective for you.


Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA
