AC220V Swing Barrier Gate Bridge Type Single / Two Way Pedestrian Swing Turnstile Gate

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW401
Minimum Order Quantity 2
Price USD350~550 per piece
Packaging Details wood cases
Delivery Time 4-7 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Passing Speed 30-40person/min Power Supply AC220V±10%,50±10Hz
Weight 65KG Working Environment -25℃ To 70℃
Dimension 1200 * 280 * 990mm Open/ Close Time 1S
Relative Humidity ≤90% No Condensation Normal Service Life 4 Million Times
High Light

Pedestrian swing Barrier gate


AC220V swing Barrier gate


SS304 Cabinet Swing Turnstile Gate

Leave a Message
Product Description

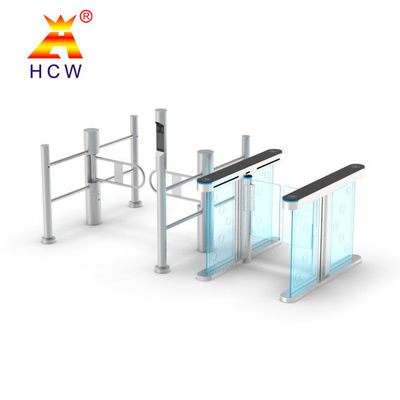

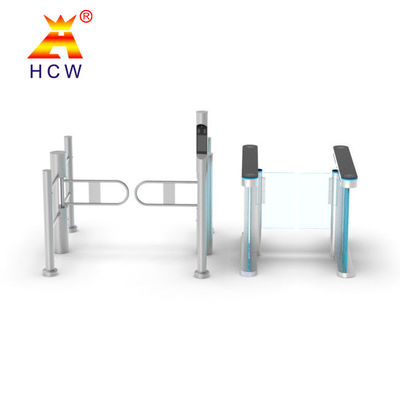

Bridge type swing gate Single/two-way pedestrian swing turnstile


Thickened steel, support customization, quality assurance, durable, waterproof and rustproof

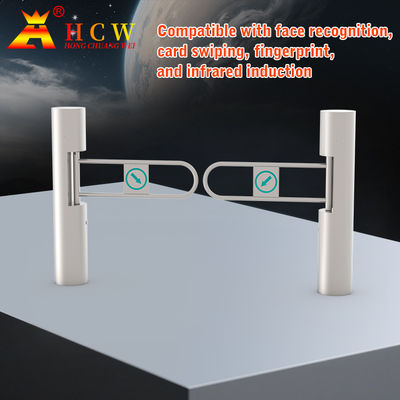

Support face recognition, fingerprint recognition, scan code recognition, document recognition
Anti-collision function, when there is no signal to open the brake, the swing arm is automatically locked
Fault prompt, fault self-check is convenient for users to use and maintain
Brushless motor for longer life
One-way two-way traffic can be set according to the use site
Can be used for smart community system solutions
Option 1: Face recognition, improve security and prevent identity impersonation
Face collection, face detection, feature extraction, and feature comparison


1.Power supply:AC220V±10%,50±10Hz
2.Input interface: (passive node information number or pulse width)
3.pass direction: one-way or two-way pass
4.working environment:-25℃ to 70℃
5.Relative humidity,≤90% no condensation close time: 1s
7.Power-on system startup time: 3 second
8.Number of passers:40 persons/minute
9.Normal service life: 4 million times

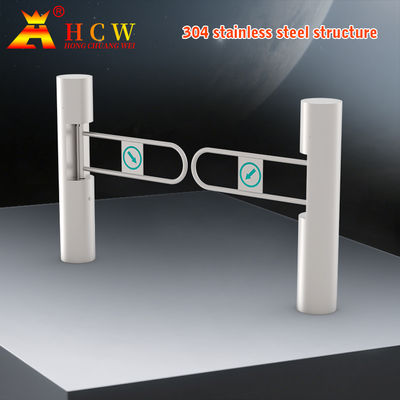

10.Chassis material: standard 304 stainless steel
11.Clear channel width: standard channel width 500mm
12.The shape of the chassis can be customized according to requirements


Technical parameter
Product Model CW401
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 40W
Input control signal Switch value (standard configuration does not include RS232, RS485)
Running speed 30~40 Person/minute
Infrared beam 1 Pair
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1600mm
Door wing material ¢25mm Stainless steel
Product Size ¢200mm x height 1050 mm
Channel frame National standard 1.5mm 304 stainless steel
Package weight About 25 KG (single side road)
