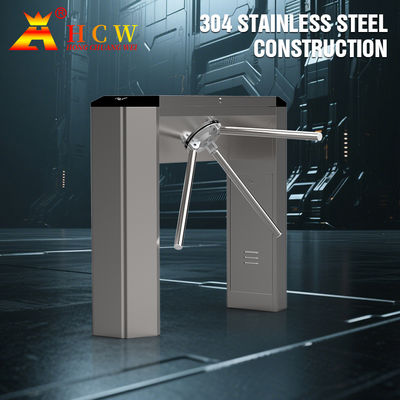

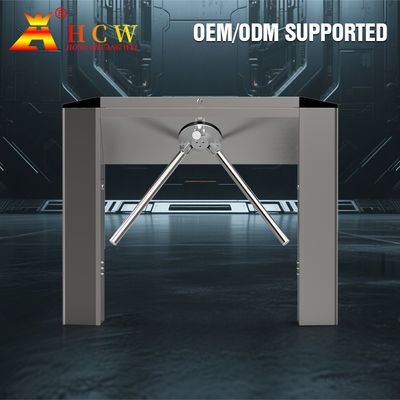

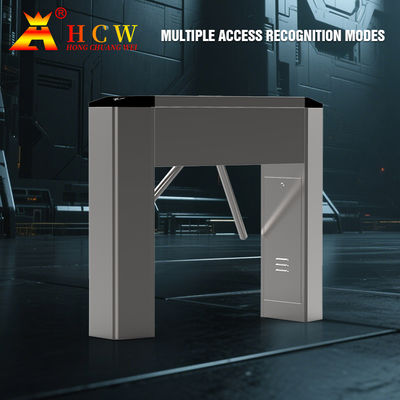

Bridge Type Manual Tripod Turnstile Gate Face Temperature Measurement Recognition

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW308
Minimum Order Quantity 2
Price USD399~540 per piece
Packaging Details wooden case
Delivery Time 6-9 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Item Name Tripod Turnstile Gate Motor DC Motor
Automatic YES Power Supply AC220V±10%,50±10Hz
Clear Channel Width 550mm Top Cover Thickness 1.3mm
Type Full Automatic Material Stainless Steel
High Light

SS 304 Tripod Turnstile Gate


Bidirectional Manual Tripod Turnstile Gate


550mm Tripod Gate Turnstile

Leave a Message
Product Description

Bridge-type manual tripod turnstile face temperature measurement recognition

DC motor fully automatic scenic three roller gate
DC brushless, one pole per person, anti-trailing
Support customization, manufacturers independently develop motherboards, and process upgrades
Pure copper movement, industrial precision cast steel, durable for more than 5 years
Specially designed transparent cover, dustproof, waterproof and leakage proof
First-line big factory accessories, power failure and leakage protection, safe to use
The cable is fixed with the cable, the wiring is beautiful and not messy, the main board logo is clear, and it is easy to maintain
Pass mode, normally open, normally closed, one-way setting, free passage setting

1.Type:full automatic, arm will fall down when power off,and rise when power on automatically.
2.Motor:DC motor
3.Power supply: AC220V±10%,50±10Hz
4.working environment:-25℃ to 70℃
5.Relative humidity,≤90% no condensation
6.Number of passers:30 persons/minute
7.Normal service life: 4 million times
8.Chassis material: standard 304 stainless steel
9.Clear channel width: 550mm
10.The shape of the chassis can be customized according to requirements
Technical Parameter
Product modelCW308
MotorBrushless motor 24V/60W
Power supplyAC220V±10%,50HZ±10% HZ
Working environment temperature-25℃-70℃
Relative humidity5%--90%
Number of passers20~30/min
Communication interfaceRS485
Normal service life5 million times
Channel width size550mm
Boom materialstainless steel
Product sizeL 1200mm x W 280mm x H 990 mm
Chassis frameChassis 1.0thiickness Top cover 1.3mm 304 stainless steel
Packing weightAbout 25KG(single channel)

Main Functions
1. With fault self-checking and alarm prompt function,it is convenient for users to maintain and use.
2. It can be connected to any control signal or button or remote control output by any control device to realize single and two-way control.
3. Can be arbitrarily set single,two-way free passage.
4. Automatic reset function: automatically reset every 120 degrees of rotation,or the systemwill automatically cancel the permission to pass this time when the pass is not passed within a specified time (the delay is multi-speed adjustable.
5. Light indication: high-brightness traffic light status indication,guide traffic.
6. Anti-tailing function:every time a person turns 120 degrees,if someone is tailing the gate,it will automatically lock and alarm.
7. Fire protection input:It can be connected with the fire alarm signal to realize constant power down and always open.
8. Memory function:Precise signal memory,when receiving legal signals multiple times in succession,it will automatically reset after detecting the last person passing,which greatly improves the speed of passage.
9. Alarm prompt function: automatic alarm prompt when passing illegally or rushing the gate
10. Brake lever is automatically locked and an alarm is issued.When the reverse external force disappears,the passage will automatically resume.
11. Anti-buffer function:When illegally passing or rushing,the brake lever automatically rotates to a corresponding angle and locks,realizing humanized anti-injury.Automatically reset when the external force disappears.
12. Unattended: Automatically drop the pole when power is off, and automatically move on when the power is on
13. Fast and silent: electric power assist, zero mechanical wear.make an appointment 45-60/min
14. Dynamic reminder: When accepting a legal pass signal, the brake lever automatically rotates about 5 degrees,and then softly rotates to the next reset point and then stops.

1. How strong is your company?
We have more than 200 employees,50-person R&D team,2 factories,more than 30,000 squares producing factory and 200 product patents.
2. How is the quality of your products?
We use leading brand accessories from Germany,Japan,and China to ensure product quality from the source
3. How do you do after-sales service?
We provide life-long technical support online through e-mail,video,telephone, etc.,7*24 hours a day service
4. How about the lead time?
It takes 7-10 working days for regular products.It takes 15-20 working days for customized products.
5. How long is your warranty period?
One year warranty
6.payment method
T/T, Western Union.
7.The way of Transportation
DHL, UPS, EMS,FedEx,air freight.Ocean freight.
8.How about packaging?
Firstly,we will wrap our goods with protective film.Then will put it in a cardboard box, into a standard export wooden box to protect the goods.
9.If can do OEM and ODM sevice?
Yes,we can
