Temperature Measurement Swing Turnstile Gate 600mm With Face Recognition System

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW418
Minimum Order Quantity 10
Price USD550-750 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Arm Length 600 Mm (Normal Size) Operating Weight 45kg
Thickness Of The Case 1.5 Mm On Top, 1.2 Mm On The Side Flap Opening/closing Time 0.7 S
Operating Temperature -25 ~ +70℃ Usage Subway Station Mall
Power Supply AC100-240V Passing Direction Single Directional / Bi-directional
High Light

Temperature Measurement swing turnstile gate

,

Face Recognition swing turnstile gate

,

600mm face recognition turnstile

Leave a Message
Product Description

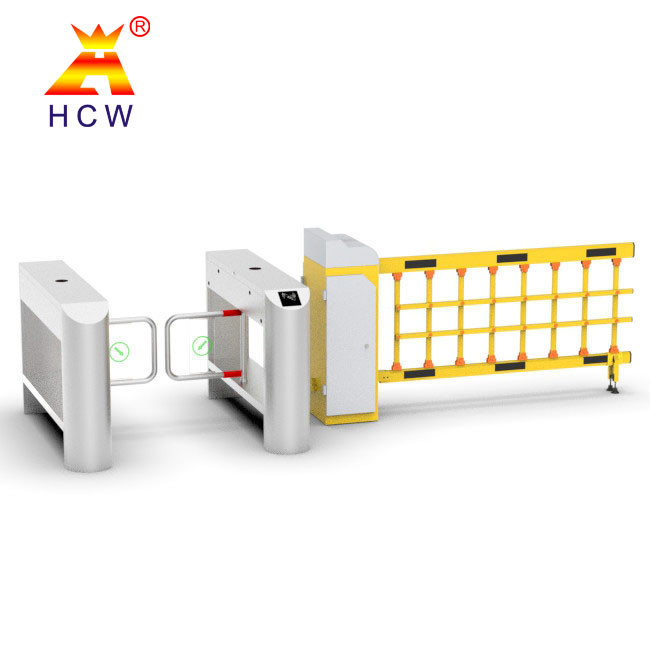

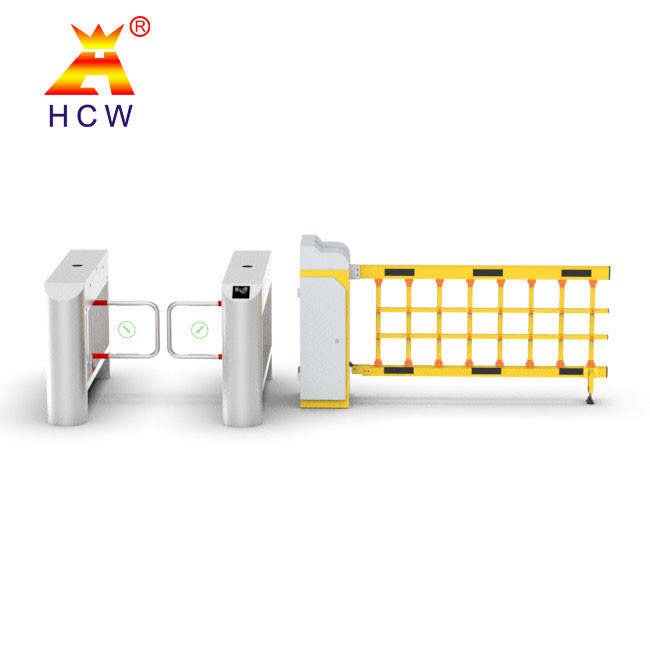

Temperature measurement face recognition system swing turnstile gate



The bridge-type octagonal swing gate is a high-end technology product for intelligent management of personnel passages. The product adopts a circuit control system and a humanized and scientific mechanical transmission design. The product has stable performance, complete functions, humanized design and high grade. It is mainly used in subways, docks, clubs, intelligent buildings, villa communities, hotel lobbies and other high-end places with concentrated traffic.
The device is compatible with all kinds of access control identification system equipment. Inductive card access control, biometric access control, electrostatic test access control, etc. can realize intelligent channel control and management through simple docking with swing gates.
product description
◆Structure: The whole product is made of 304 stainless steel, which is rust-proof and durable. The equipment is easy to use and maintenance-free.
◆ Overall dimensions: length 1200 × width 280 × height 1000 (mm)
◆ Weight: 65Kg,
◆ Brake lever length: 600(mm) (can be customized)
◆ Brake lever steering: one-way, two-way (optional)
◆ Working environment: indoor, outdoor (preferably with awning)

Standard features
◆ Mechanical anti-pinch function: automatic mechanical anti-pinch is safer and more reliable when the gate is running;
◆ The electric control adopts DC motor drive, which is stable and reliable, self-checking after power-on, and low failure rate;
◆ Super bright traffic indication function: The direction indication adopts super bright LED light design, the indication is more eye-catching;
◆ Alarm function of crossing the border: pedestrians enter the channel without swiping their cards, and the device alarms to remind pedestrians to swipe their cards;
◆ Retrograde alarm closing function: pedestrians go backwards after swiping their cards, and the equipment alarms and closes the gate at the same time;
◆ Anti-trailing function: when the first person swipes the card, the second person will call the police at any time without swiping the card tail;
◆ Bicycle delay function: prevent the gate from hitting the bicycle;
◆ Multiple control functions: By setting, the gate can be set to normally open mode during special periods to meet a large number of people passing through;
◆ Choice of access mode: In order to meet different access requirements, it can be set to two-way card swiping or one-way card swipe plus free access mode;
A variety of control functions: various reading and writing devices such as buttons, remote controls, barcode meters, IC or ID can be connected;
◆ Remote control function: The gate can be controlled remotely by connecting RS485 card or TCP to RS485 through the computer;
◆ Automatic reset function: If the card is not passed within the specified time after swiping the card, the gate will be reset and re-locked to cancel the passage. The time is 1-60 seconds.



Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA
