Community Electric Straight Rod Barrier Gate Remote Control For Parking

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW238-1
Minimum Order Quantity 2 piece
Price USD 199-299 per piece
Packaging Details wood cases
Delivery Time 6-10working days
Payment Terms T/T
Supply Ability 2000 pieces per wek

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Parking Barrier Gates Motor Brushless
Motor Power 150W Arm Direction Left And Right Adjustable
Boom Length 2-6m Fence Category Two Fence, Three Fence

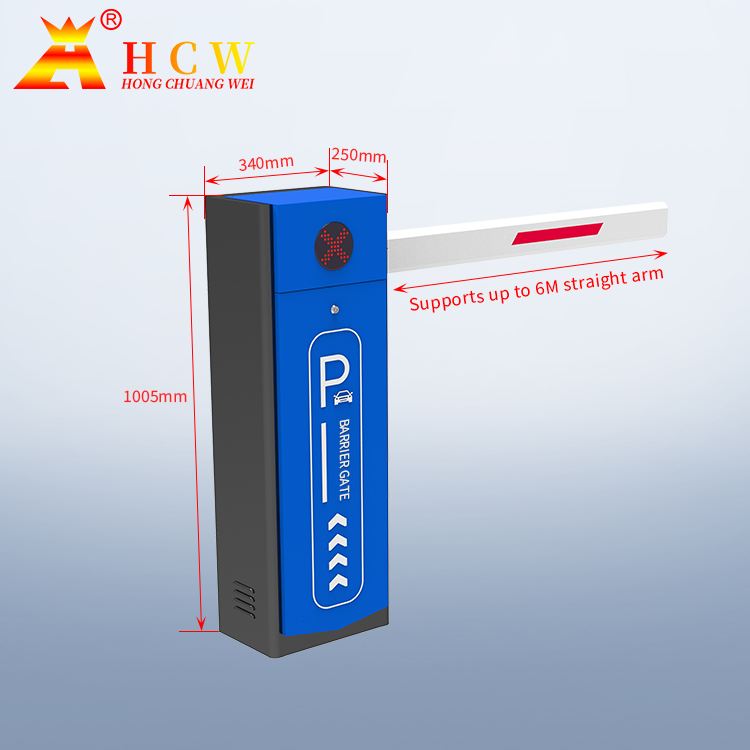

Crank Arm 90 Degree Folding Rod, 180 Degree Folding Rod Size 340*250*1005mm
High Light

Electric straight rod barrier gate


150W straight rod barrier gate


brushless motor parking barrier gates

Leave a Message
Product Description

Community electric remote control lift rod straight rod barrier gate



Product Introduction

DC brushless straight pole barrier, intelligent parking system
Quiet and low noise, rebound in case of resistance, 24V safe voltage, heat-resistant and rust-proof
High-power motor, low temperature protection of main board, quick start rod, frequency conversion movement, power failure protection
Stable performance, remote control function, can support parking charging system, can support license plate recognition
Optional anti-smashing pressure wave, intelligent induction, when the pole is lowered, it will automatically rise when it encounters a car, a person or an object.


At the same time, it can adapt to the extension spring to respond to the rod length adjustment,which has the characteristics of high safety, intelligence,modernization,and humanization. he surface of the chassis has an exquisite appearance and color matching.The electrostatic dust high-temperature baking paint (180 degrees ~ 250 degrees) is anti-corrosive, anti-fading,anti-falling, easy to maintain,and the surface texture is delicate,beautiful and generous,and it will last forever.The barrier can be equipped with multiple anti-smashing systems,ground sensing,pressure waves,infrared and other anti-smashing functions.



Product model


Input voltage


Working humidity


Operating temperature

-40℃ to +80℃

Fixed direction Interchangeable left and right

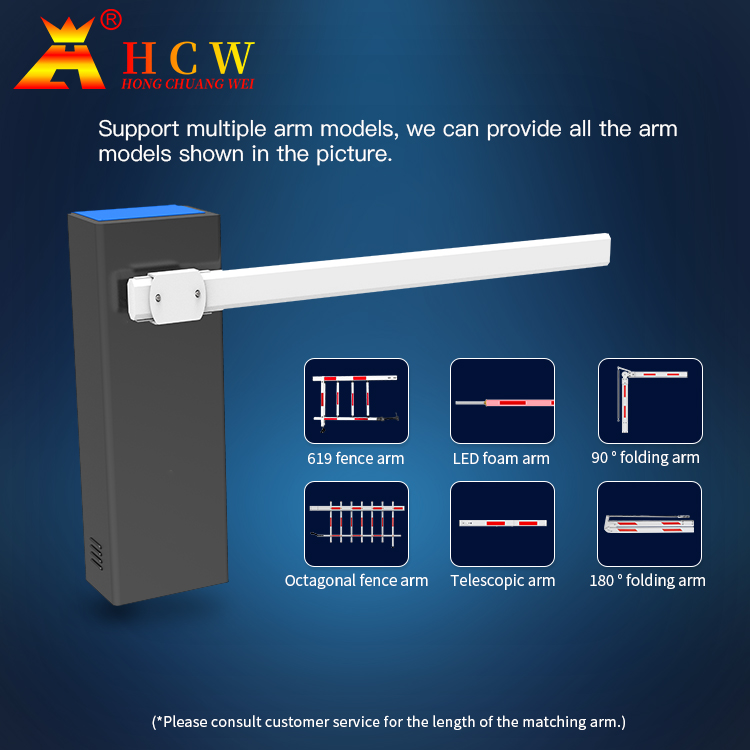

Length of pole ≤ 6m straight pole, ≤ 6m curved pole, ≤ 5.0m two fences, ≤ 4.0m three fences



Motor Power 150W
Rise and fall time 1.5 seconds movement (1.5 seconds ~ 3 seconds adjustable) Movement 3 seconds (4 seconds ~ 6 seconds adjustable)
Anti-smashing car function Rebound to open the gate in case of resistance
Input control signal Input control signal




1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
