IP44 Swing Barrier Turnstile 40W Stainless Steel 304 Pedestrian Turnstile Gate

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW403
Minimum Order Quantity 2
Price USD380-680 per piece
Packaging Details wood packing
Delivery Time 3-8 days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage AC220V ,50Hz Working Environment -25℃ To 70℃
Normal Service Life 4 Million Times Number Of Passers 40 Persons/minute
Motor Power 40W IP Protection Level 44
Material Standard 304 Stainless Steel Communication Distance Max 400 Meters
High Light

IP44 Swing Barrier Turnstile


stainless steel Swing Barrier Turnstile


40W Pedestrian Turnstile Gate

Leave a Message
Product Description

one way two-Way Security System Access Control Automatic Swing Turnstile Barrier Gate




1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software



1.Power supply:AC220V±10%,50±10Hz

2.Input interface: (passive node information number or pulse width)
3.communication interface:switching,RS232 RS485 optional
4.pass direction: one-way or two-way pass
5.working environment:-25℃ to 70℃
6.Relative humidity,≤90% no condensation
7.open/ close time: 1s
8.Power-on system startup time: 3 second
9.Number of passers:40 persons/minute
10.Normal service life: 4 million times
11.Chassis material: standard 304 stainless steel
12.The shape of the chassis can be customized according to requirements


Q1 How fast can I get the quotation?
A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.

Q2 Can I get a sample to check the quality of product?

A Yes. We can send you samples to check the quality within 3-5 days.

Q3 How about delivery time?
A Within 1-2 days for standard products in stock. If it is customized order, the delivery time depends on your exact requirements.

Q4 What is the packaging?
A We provide brown carton box, Wooden frame (optional) and wooden box (optional)we also can make your own designed OEM package.

Q5 What is your terms of delivery?

A We accept EXW, FOB, L/C, etc. You can choose the one which is the most convenient or cost effective for you.


Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA

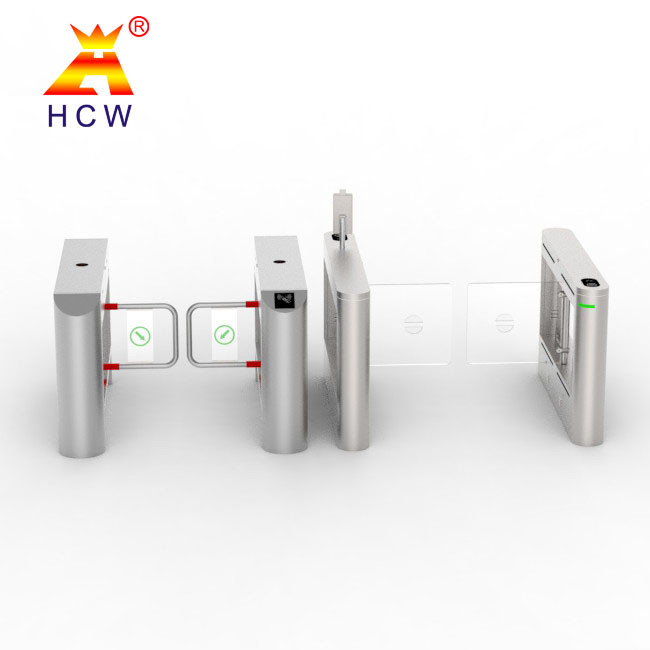

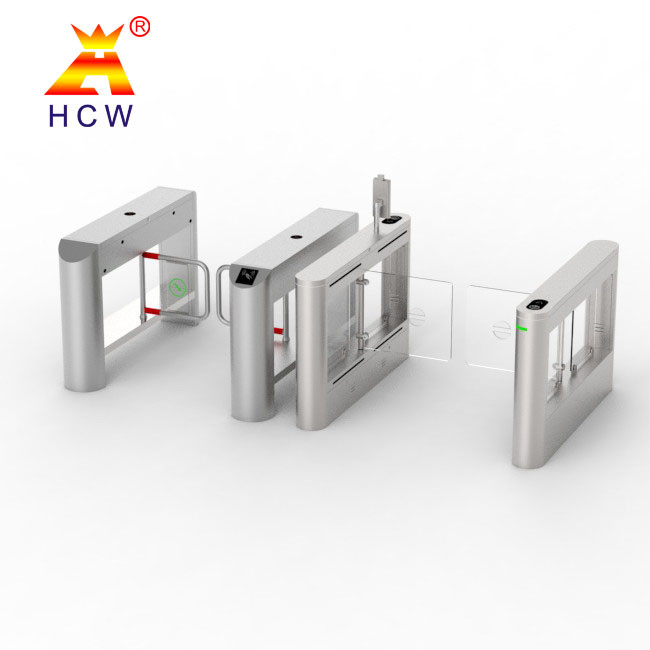

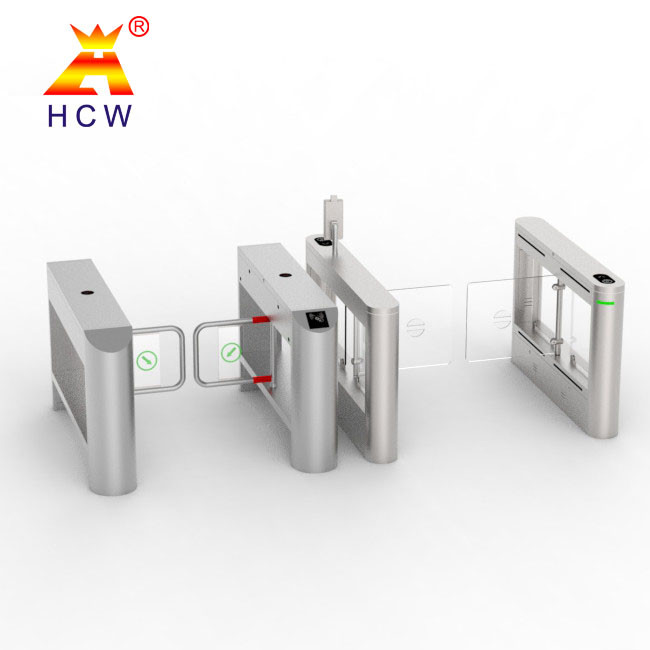

IP44 Swing Barrier Turnstile 40W Stainless Steel 304 Pedestrian Turnstile Gate 0IP44 Swing Barrier Turnstile 40W Stainless Steel 304 Pedestrian Turnstile Gate 1IP44 Swing Barrier Turnstile 40W Stainless Steel 304 Pedestrian Turnstile Gate 2
