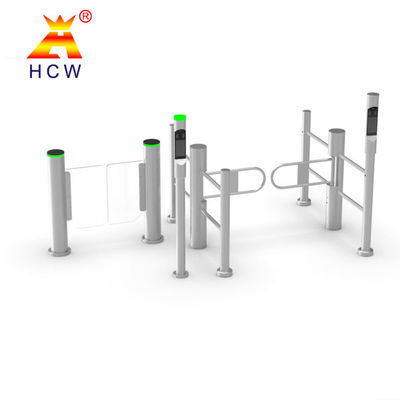

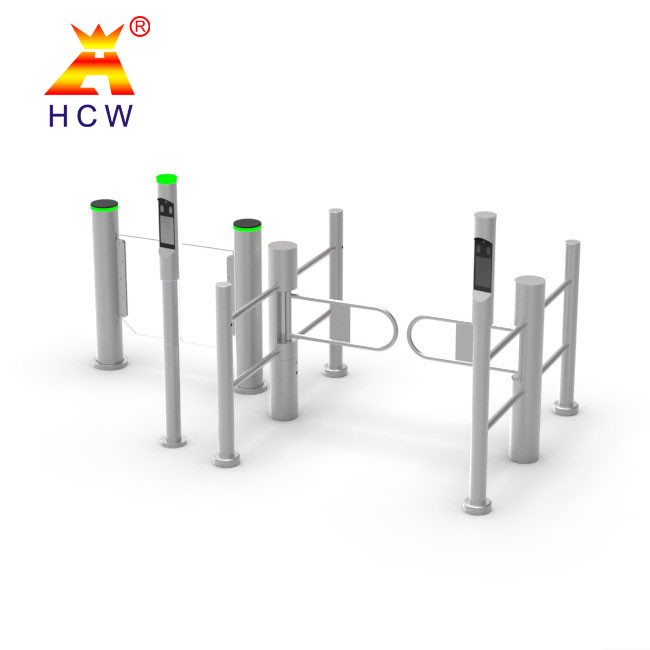

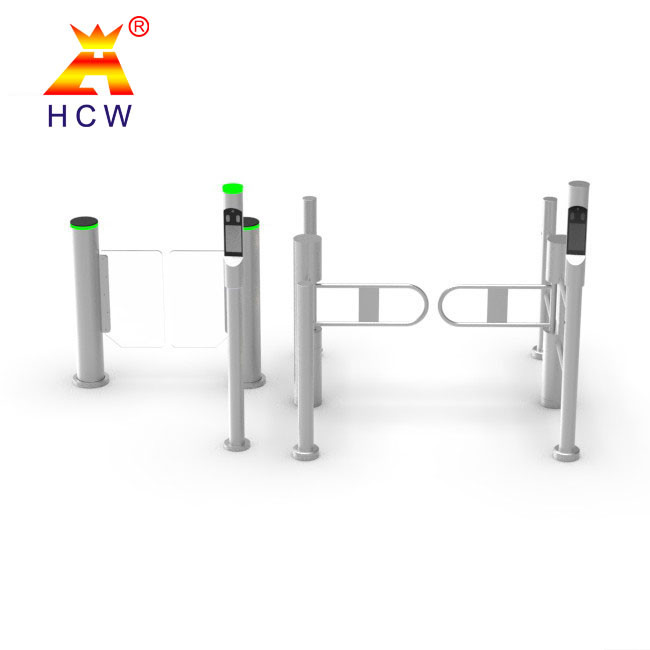

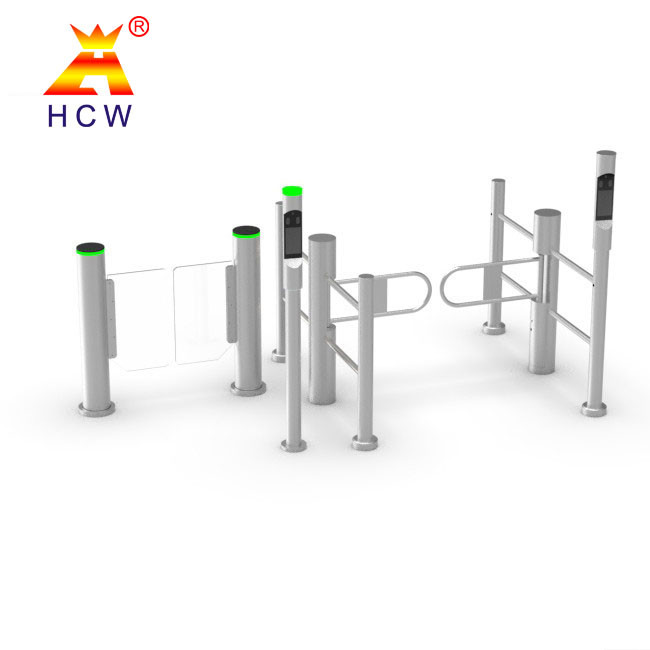

1S Turnstile Swing Gate Supermarket Entrance Turnstile With Face Fingerprint Recognition

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW401
Minimum Order Quantity 2
Price USD350~550 per piece
Packaging Details wood cases
Delivery Time 4-7 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Passing Speed 30-40person/min Power Supply AC220V±10%,50±10Hz
Weight 65KG Working Environment -25℃ To 70℃
Dimension 1200 * 280 * 990mm Open/ Close Time 1S
Relative Humidity ≤90% No Condensation Normal Service Life 4 Million Times
High Light

1S Turnstile Swing Gate

,

supermarket Turnstile Swing Gate

,

Face Fingerprint supermarket entrance turnstile

Leave a Message
Product Description

304 Stainless Steel Security Entrance Access Control Turnstile Swing Gate with Face Fingerprint Recognition



*Servo brush-less vertical swing gate is for a variety of pedestrian, vehicle channel carefully developed an upgraded and innovative high-tech Access control product.
*It adopts the new industrial-grade circuit and control system and the unique mechanical design, combined with the characteristic of brush-less motor drive technology and accurate limit of technology, those make the product incomparable and revolutionary improved both in performance, lifespan, stability, and cost performance etc.

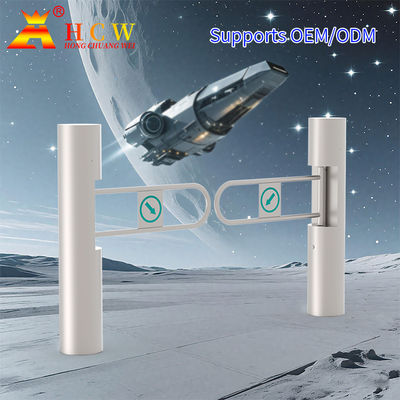

* It support customized by customer requirements.





With advanced laboratories, aging rooms and professional testing equipment such as programmable constant temperature and humidity box, salt spray tester, etc., it has all-round functions such as high and low temperature detection, rain detection, and seismic detection of accessories and the whole machine. Monitoring, escort product quality.



1.Power supply:AC220V±10%,50±10Hz
2.Input interface: (passive node information number or pulse width)
3.pass direction: one-way or two-way pass
4.working environment:-25℃ to 70℃
5.Relative humidity,≤90% no condensation
6.open/ close time: 1s
7.Power-on system startup time: 3 second
8.Number of passers:40 persons/minute
9.Normal service life: 4 million times

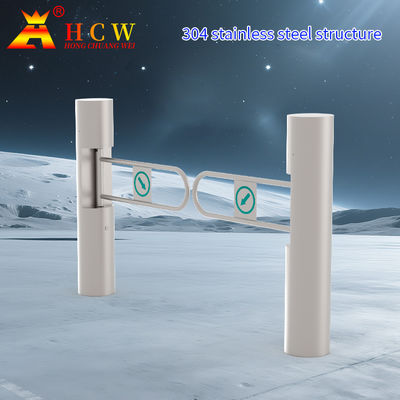

10.Chassis material: standard 304 stainless steel
11.Clear channel width: standard channel width 500mm
12.The shape of the chassis can be customized according to requirements



Technical parameter
Product Model CW401
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 40W
Input control signal Switch value (standard configuration does not include RS232, RS485)
Running speed 30~40 Person/minute
Infrared beam 1 Pair
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1600mm
Door wing material ¢25mm Stainless steel
Product Size ¢200mm x height 1050 mm
Channel frame National standard 1.5mm 304 stainless steel
Package weight About 25 KG (single side road)
