Brushless Motor Pole Barrier Gate 2m High Speed anti smashing for Parking

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW238-1
Minimum Order Quantity 20 piece
Price USD 199-299 per piece
Packaging Details wood cases
Delivery Time 6-10working days
Payment Terms T/T
Supply Ability 2000 pieces per wek

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Parking Barrier Gates Motor Brushless
Motor Power 150W Arm Direction Left And Right Adjustable
Boom Length 2-6m Fence Category Two Fence, Three Fence

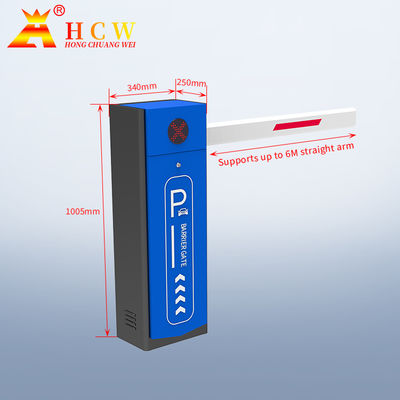

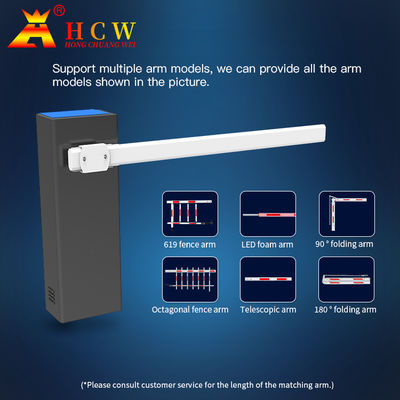

Crank Arm 90 Degree Folding Rod, 180 Degree Folding Rod Size 340*250*1005mm
High Light

Brushless Motor Pole Barrier Gate

,

Anti Smashing Pole Barrier Gate

,

2m Pole Parking Barrier Gates

Leave a Message
Product Description

Brushless Motor Parking High Speed Barrier Gate





Product Introduction


The fifth-generation DC 24v brushless movement barrier gate is a new type barrier gate launched by Hongpai. It adopts digital control technology to monitor the entire process of the barrier gate operation, and realizes the intelligent and simple barrier gate operation management. The wireless remote control can be used for lifting, lowering and stopping or manual button operation. The barrier movement adopts a specially designed one-piece movement. The frame, reducer, and transmission mechanism are integrated, which minimizes the vibration of the machine body, greatly improves the operation accuracy of the barrier, and guarantees the safe and reliable operation of the barrier.



At the same time, it can adapt to the extension spring to respond to the rod length adjustment,which has the characteristics of high safety, intelligence,modernization,and humanization. he surface of the chassis has an exquisite appearance and color matching.The electrostatic dust high-temperature baking paint (180 degrees ~ 250 degrees) is anti-corrosive, anti-fading,anti-falling, easy to maintain,and the surface texture is delicate,beautiful and generous,and it will last forever.The barrier can be equipped with multiple anti-smashing systems,ground sensing,pressure waves,infrared and other anti-smashing functions.





Product model

CW238-1

Input voltage

AC220V,110V±10%,50Hz±10%

Working humidity

5%-95%

Operating temperature

-40℃ to +80℃

Fixed direction Interchangeable left and right
Length of pole ≤ 6m straight pole, ≤ 6m curved pole, ≤ 5.0m two fences, ≤ 4.0m three fences

Motor

brushless

Motor Power 150W
Rise and fall time 1.5 seconds movement (1.5 seconds ~ 3 seconds adjustable) Movement 3 seconds (4 seconds ~ 6 seconds adjustable)
Anti-smashing car function Rebound to open the gate in case of resistance
Input control signal Input control signal





FAQ

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.


2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.


3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.


4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
