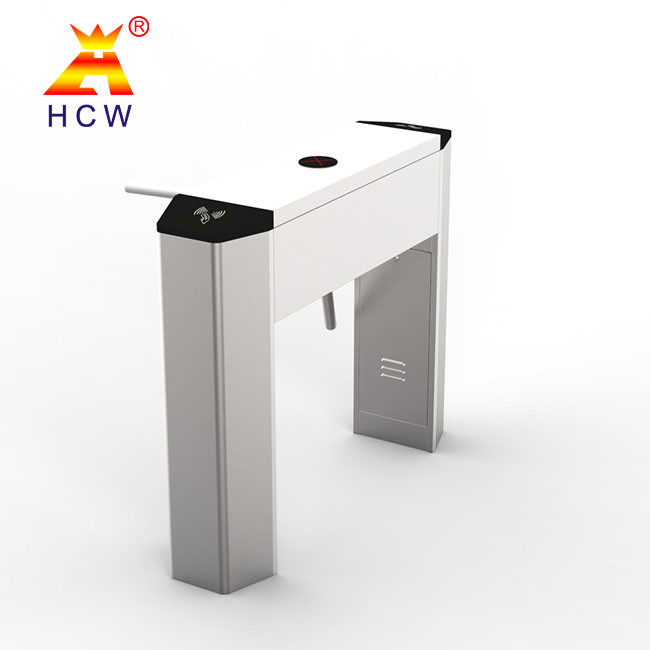

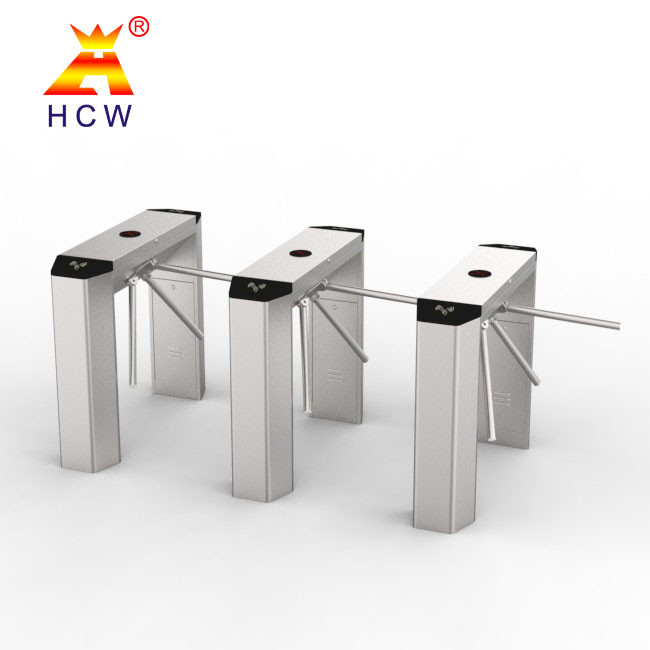

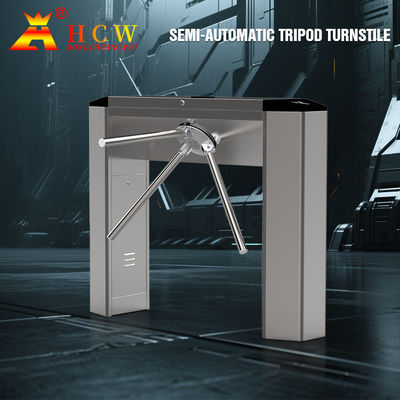

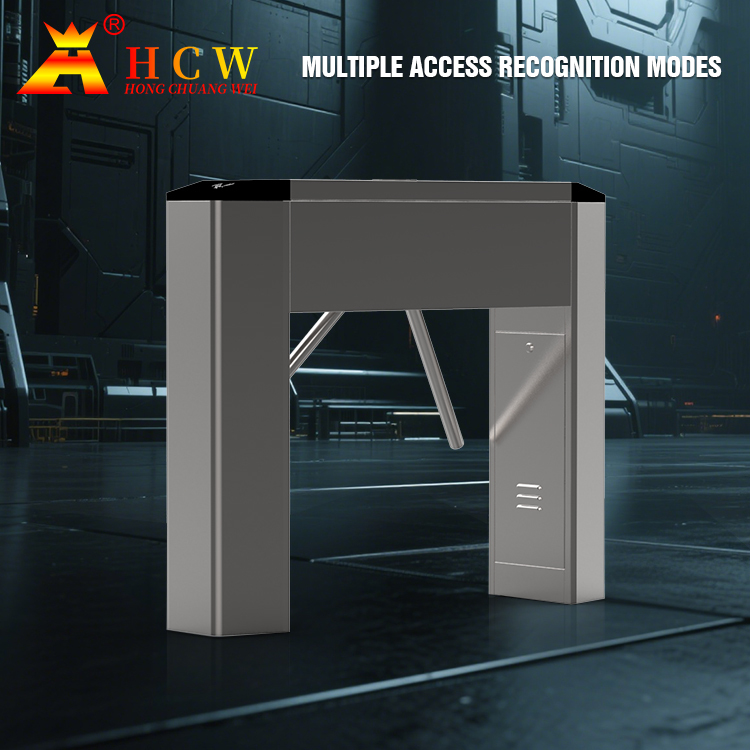

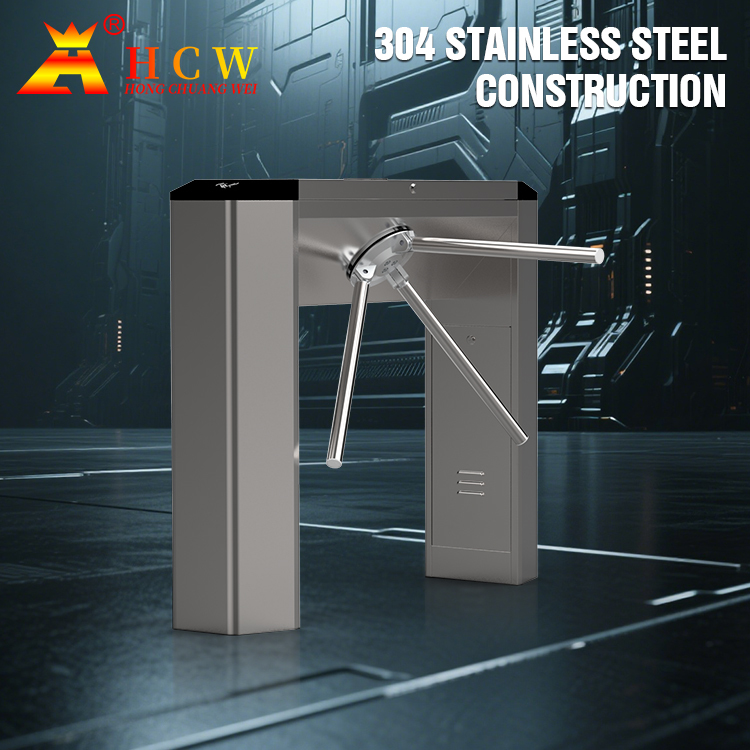

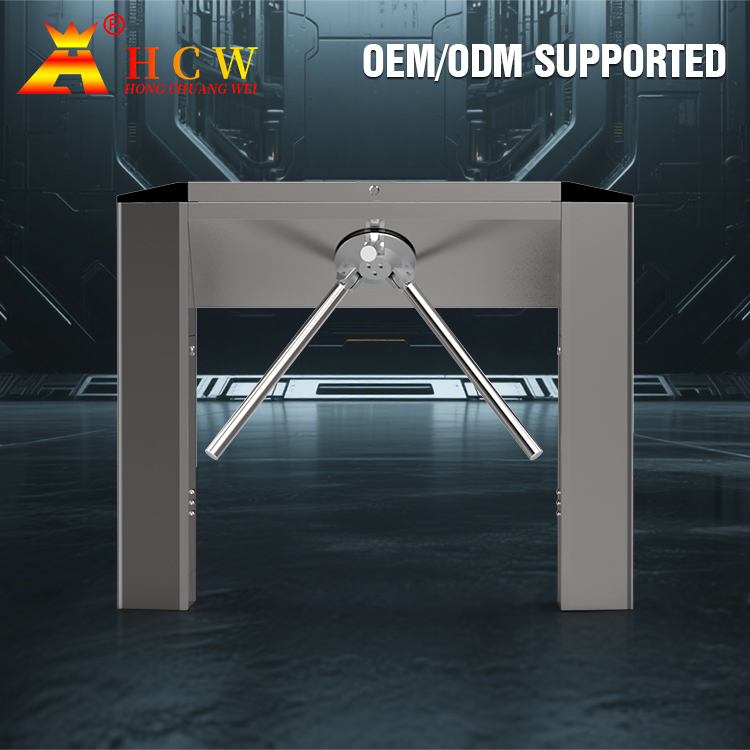

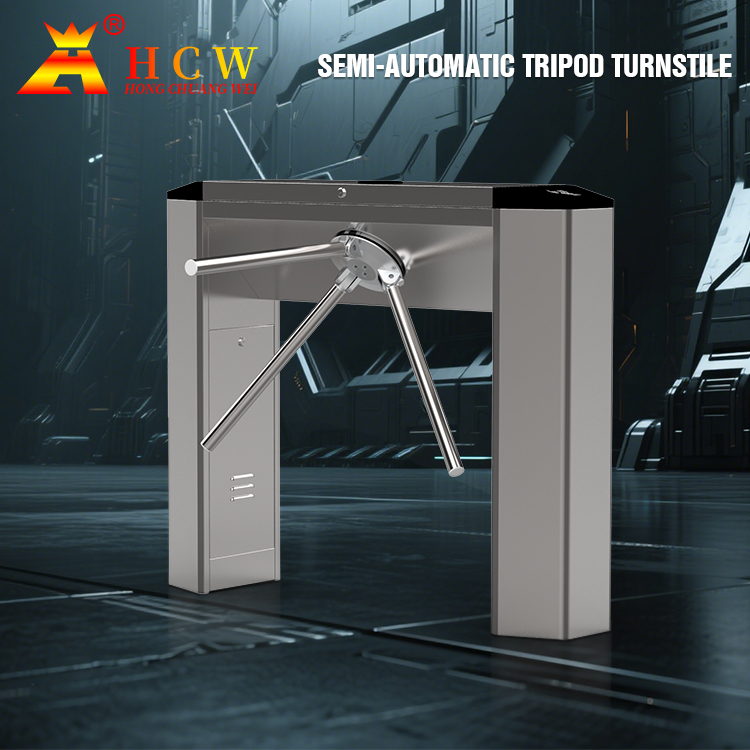

Mechanical Tripod Turnstile Barrier Supermarket Entrance And Exit Access Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sensitivity | High Sensitivity | Temperature | -15 To 60 Degrees |
|---|---|---|---|
| Barrier Length | 510mm | Input Voltage | AC220V±10% 50HZ |
| Passing Speed | 40 Persons/min | Drive Current | >10mA |
| Working Environment | Indoor And Outdoor (shade Shed) -10℃～70℃ | ||
| High Light | Access Control Tripod Gate Barrier,30W Tripod Gate Barrier,30W Supermarket Swing Gate |
||
Product Description
Mechanical Tripod Turnstile Barrier Supermarket Entrance And Exit Access Control
Product Application:
Tripod Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.
Functions:
1. The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.
2. It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
3. Counting the passing people number automatically, and with LED display
4. Direction indicator function, showing passing or prohibiting for the people
5. Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
6. Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
7. Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.
8. Self resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.
9. RS485 Communication function
|
Indicator
|
Green means passage
|
|
Power supply for core
|
AC100~220V 50/60Hz
|
|
Operational voltage
|
DC 24V ±5％
|
|
Voltage of indicator
|
DC12V ±5％(standard)
|
|
Power consumption
|
30W
|
|
Working environment
|
Indoors or outdoors(outdoor is optional)
|
