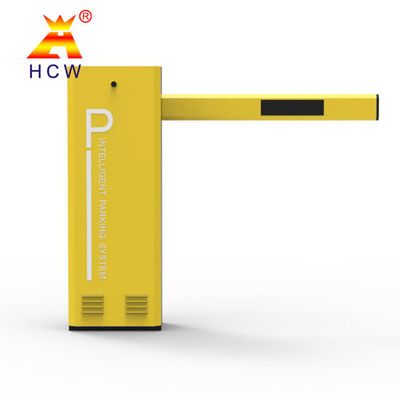

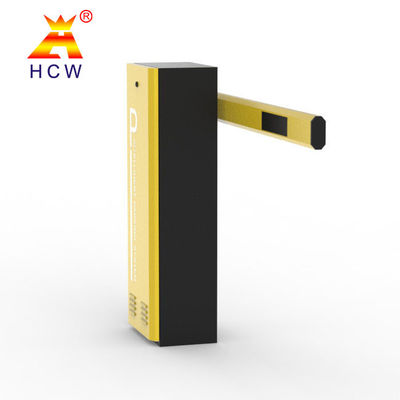

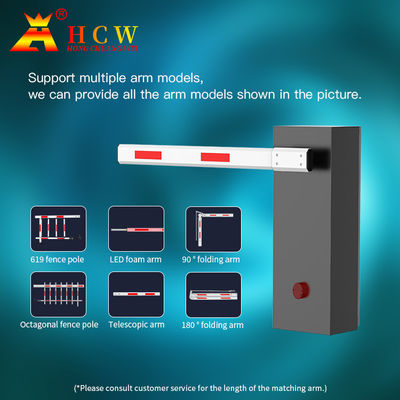

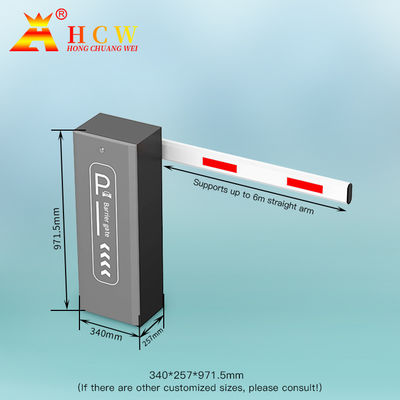

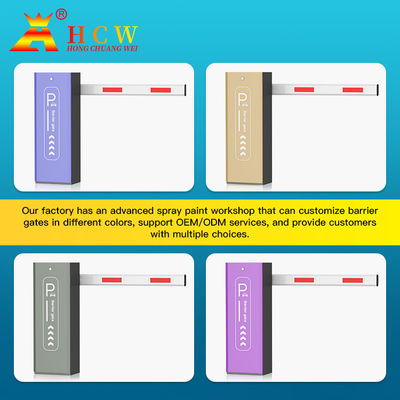

ANPR Or LPR Boom Barrier Traffic Arm Barrier Pole Gate 3-6m Length RS485

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW239-1
Minimum Order Quantity 10
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Boom To Ground 890mm Barrier Gate Lifespan More Than 5 Million Times
Voltage AC220V 10% 50Hz Length Of Barrier Boom ≤4M(4S) ≤4.5M(5.5S)
Operating Environment Temperature -40℃~80℃ Operating Environment Humidity 30%~80% (no Condensation)
Pole Length 3-6m Pole Speed 1-6s
High Light

RS485 Electric Boom Barrier


6m Electric Boom Barrier


3m Traffic Arm Barrier

Leave a Message
Product Description

ANPR Or LPR Boom Barrier Traffic Arm Barrier Pole Gate 3-6m Length RS485



1. Revolutionary and innovative design, excellent structure, easy interchangeability between left and right directions.

2. CNC precision machining, running more smoothly and more durable.
3. The intelligent limited time motor cuts off power, the gate pole runs permanently at 90 degrees, and it has the function of rebounding when the falling pole encounters resistance, making the gate operation safer.
4. The angle sensor mode has the function of shielding ground sense at a small angle, and no safety island is required for barriers and gates.
5. Swiping card signal input, can set whether the barrier is with memory. Supports delayed rod drop function.
6. The specially designed balance structure enables the brake lever to start slowly, run quickly, and stop slowly.
7. Equipped with air switch and expansion screws, it is safe and convenient to install.
8. Flexible choice of level or switch signal output, and can be connected to a variety of control systems.
9. Optional RS485/RS232 communication module to support remote control function.


Boom gate, also known as a boom barrier, is a bar or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near vertical position. Boom gates are often paired either end to end, or offset appropriately to block traffic in both directions.

Automatic Boom Barriers are basically Automatic Entrance are Gates equipped with a torque motor which lifts the boom arm to be move in both up and down position. Electro-mechanical and hydraulic drive mechanism makes it more suitable for smooth operations with intensive use.


Safety 24V DC power supply to ensure personal safety.
Energy-saving static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W;
Adjustable speed independent adjustment of the lifting and closing speed.
Stable work Multi-speed design makes the working state linear and stable.
Quiet working noise is lower than 50db
Multiple protection motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection;
Support external remote control input
Support various parameters can be set
Support light sensitive to turn on the light of the advertising gate
Support windproof, antifreeze, antirust and other functions
Support multiple relay output modes.


ANPR Or LPR Boom Barrier Traffic Arm Barrier Pole Gate 3-6m Length RS485 0
