3-6m Length Straight Pole Boom Barrier Gate 200W Security Car Parking Barriers

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW239-1
Minimum Order Quantity 10
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Option Color Option Operation Speed 1S For 3m, 1.5S For 3.5m

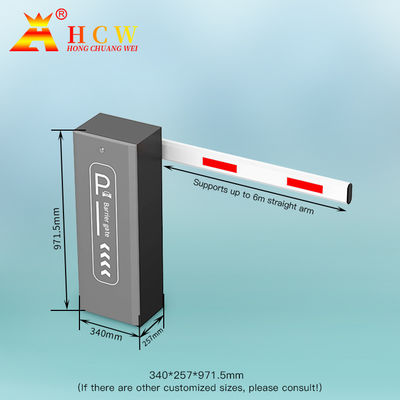

Remote Control <50m Dimension 260*340*970mm
Housing Painting Powder Coating Working Temperature -23℃~75℃
Working Humidity 10%~95% No Condensation
High Light

6m Electric Boom Gate


200W Electric Boom Gate


3m security boom barrier

Leave a Message
Product Description

3-6m Length Straight Pole Boom Barrier Gate 200W Security Car Parking Barriers



1). Integrative machine core: all part is made by mold, so all parts can be more accurate. And so

the barrier gate can be much more stable;
2). Left or right installed can be amendable. Customer can amend install direction by himself;
3). Accurate link mechanism: link mechanism can release arm’s shake and motor load, so the

barrier gate can move more stable and barrier gate’s working life can be more longer;
4). 70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower, Structures Compact, can realize self-locking.


Product Description
The high speed boom barrier gate, with its fast speed of open and close,can greatly improve the vehicle passing speed and alleviate the road congestion. It is widely used in highway toll station or other places requiring high speed access.

The operating speed can reach 1 Second and 1.5 Second.

The max. length of boom for 1 Second is 3 meters , and the max.length of boom for 1.5 Second is 3.5 meters.

• Manual release device to operate the boom barrier when power off.
• Machine core with compression spring, effectively avoids accidents caused by broken spring.
• aluminum alloy casting, water proof
• Excellent performance. It has long service life,More than 3,000,000 running times.
• Easy to integrate with other systems



Safety 24V DC power supply to ensure personal safety.
Energy-saving static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W;
Adjustable speed independent adjustment of the lifting and closing speed.
Stable work Multi-speed design makes the working state linear and stable.
Quiet working noise is lower than 50db
Multiple protection motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection;
Support external remote control input
Support various parameters can be set
Support light sensitive to turn on the light of the advertising gate
Support windproof, antifreeze, antirust and other functions
Support multiple relay output modes.
