High Speed Automatic Parking Barrier For Highway Toll Station Traffic Management

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW239-1
Minimum Order Quantity 10
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Option Color Option Operation Speed 1S For 3m, 1.5S For 3.5m

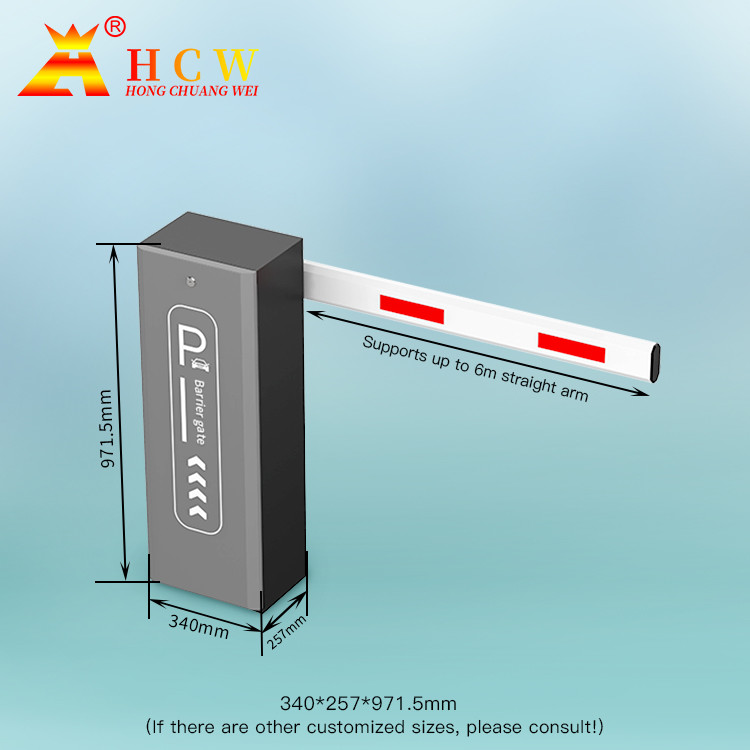

Remote Control <50m Dimension 260*340*970mm
Housing Painting Powder Coating Working Temperature -23℃~75℃
Working Humidity 10%~95% No Condensation
High Light

970mm Parking Barrier Gate


Toll Parking Barrier Gate


340mm automatic parking gate

Leave a Message
Product Description

Automatic High Speed Boom Barrier Gate For Highway Toll Parking System


1.- The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.- Arms can be chosen from 3 meters to 6 meters.

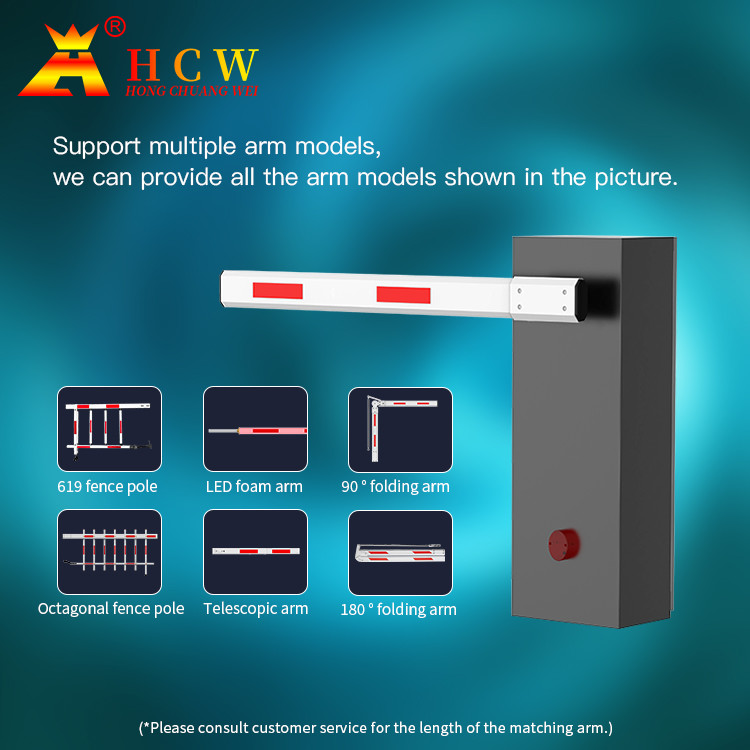

3. - This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.- Advanced manual release . Clutch key can be used to open the clutch when electricity is cut off.
5.- All the process is soft without any noise and shaking.
6.- This barrier gate has many input terminals for photocell, Air wave switch, loop detector, back-up battery(for DC Motor), toll
gate system and output terminals for lamp.

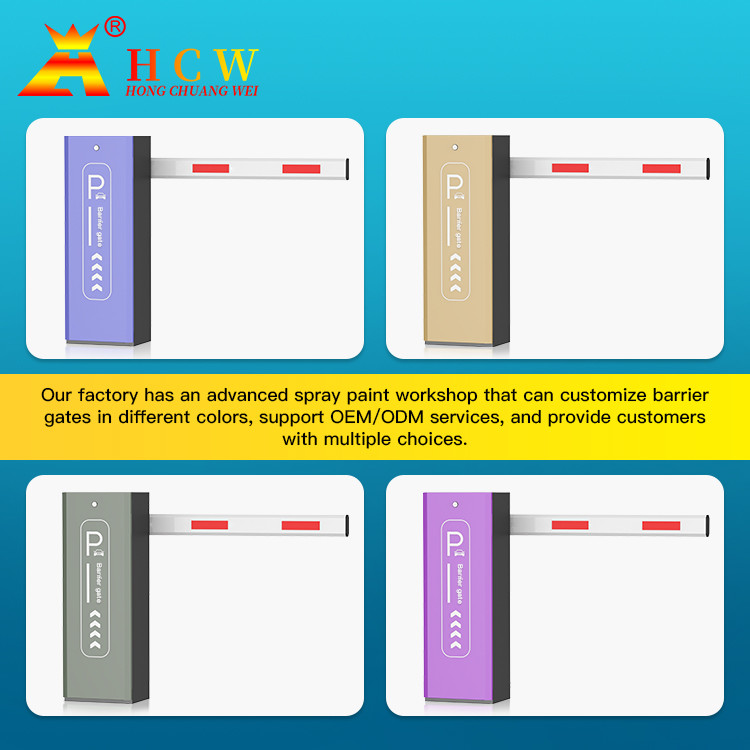

7.- Housing color: yellow, red , blue, orange, white (optional)
8.- Boom arm direction can be chosen leftward to rightward.
9.- Auto warming up, suitable for cold environment.
10- Controlling way : wireless or wiring multiple push button for OPEN,CLOSE,STOP function.

Product Description
The high speed boom barrier gate, with its fast speed of open and close,can greatly improve the vehicle passing speed and alleviate the road congestion. It is widely used in highway toll station or other places requiring high speed access.

The operating speed can reach 1 Second and 1.5 Second.

The max. length of boom for 1 Second is 3 meters , and the max.length of boom for 1.5 Second is 3.5 meters.

• Manual release device to operate the boom barrier when power off.
• Machine core with compression spring, effectively avoids accidents caused by broken spring.
• aluminum alloy casting, water proof
• Excellent performance. It has long service life,More than 3,000,000 running times.
• Easy to integrate with other systems



Safety 24V DC power supply to ensure personal safety.
Energy-saving static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W;
Adjustable speed independent adjustment of the lifting and closing speed.
Stable work Multi-speed design makes the working state linear and stable.
Quiet working noise is lower than 50db
Multiple protection motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection;
Support external remote control input
Support various parameters can be set
Support light sensitive to turn on the light of the advertising gate
Support windproof, antifreeze, antirust and other functions
Support multiple relay output modes.
