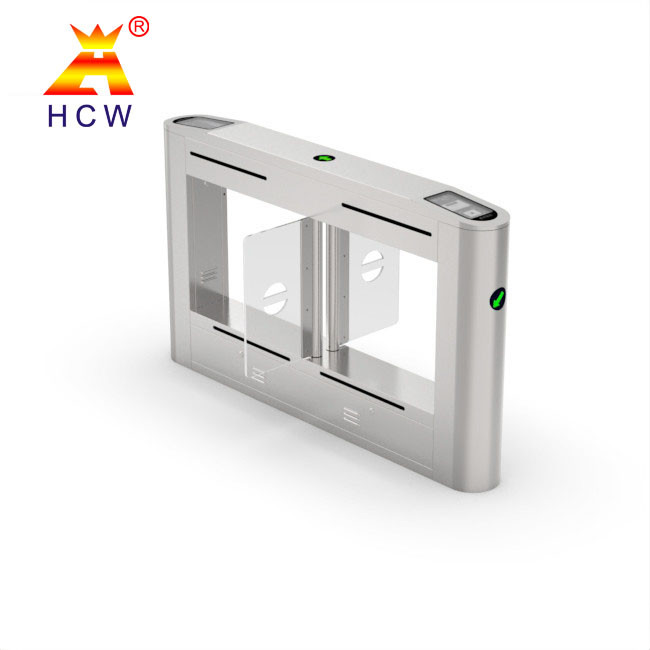

770mm height Automatic Turnstile Gate IP55 Airport Swing Gates

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW422
Minimum Order Quantity 10 piece
Price USD550-600 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Opening Pattern Automatic Turnstile Gate Height 1200*185*770mm/customized
Passing Speed < 35 Person/min Power Supply AC220V /AC110V
Protection Class IP55 IP Protection Level 42
Infrared Logarithm 6 Pairs Communication Distance Within 400m
High Light

1200mm Automatic Turnstile Gate

,

IP55 Automatic Turnstile Gate

,

IP55 airport swing gates

Leave a Message
Product Description

Custom Size Automatic Turnstile Swing Barrier Gate Enrance Gate For Office



Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
Flexible selection of normally open and normally closed modes, two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.


Framework Material:304 Stainless Steel Dimension:1200 * 280 * 990mm Net Weight:50kg Passage Width:550mm (Arm length: 500mm) Passing Direction:Single directional / Bi-directional Power Supply:AC220V/110V, 50/60Hz Operation Voltage:24V DC Power Consumption:20W Operation Temperature:-15 °C – 60 °C Operation Humidity:0 ~ 95% (No freeze) Working Environment:Indoor / Outdoor (Shelter) Flow Rate:35-40 people per minute LED Indicator:Yes Input:Dry contact Emergency:Automatic arm drop when power off Communication:RS485, TCP/IP



Channel width 600mm-900mm
Outer length of swing arm chassis ≤430mm
Opening speed 0.5s
Number of passers normally closed 30 people/min, normally open 40 people/min
Working environment indoor and outdoor (outdoor with rain shed) -40°C~80°C
Relative humidity ≤95%, no condensation
Gate opening signal low frequency or passive node signal of no less than 100ms

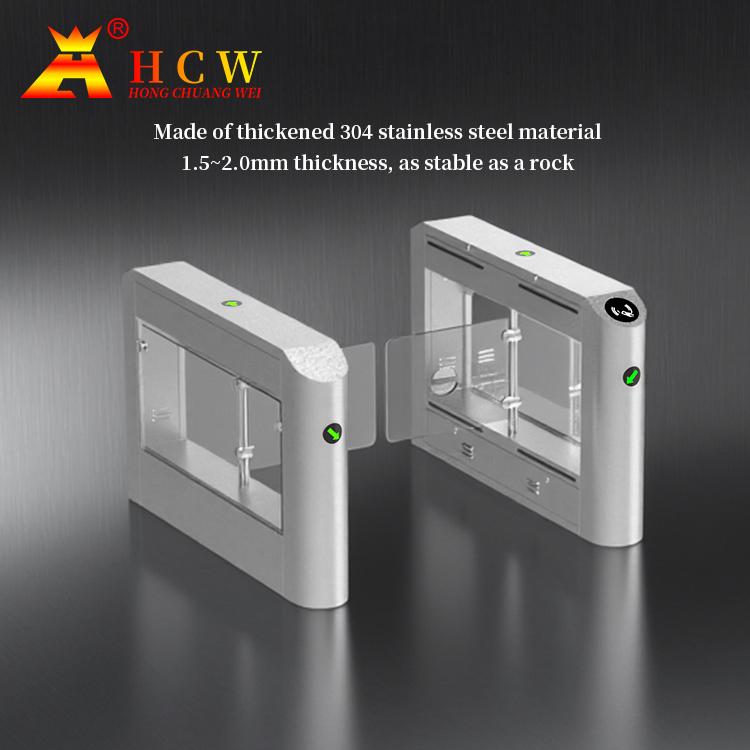

Case material 304 stainless steel
Thickness 1.2mm
Drive current >10mA
