High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Case Material | S304 | Supply Voltage | AC220V±10%，50/60HZ |
|---|---|---|---|
| Production Process | CNC Laser Cutting | Working Temperature | -25℃+70℃ |
| Communication | RS485 Electrical Standard | Way To Control | Full Automatic |
| Relative Humidity | ≤90%, No Condensation | Switching Time | 1 Second |
| Highlight | Acrylic Security Turnstile Gates,SS304 Security Turnstile Gates,SS304 Controlled Access Turnstiles |
||
Product Description

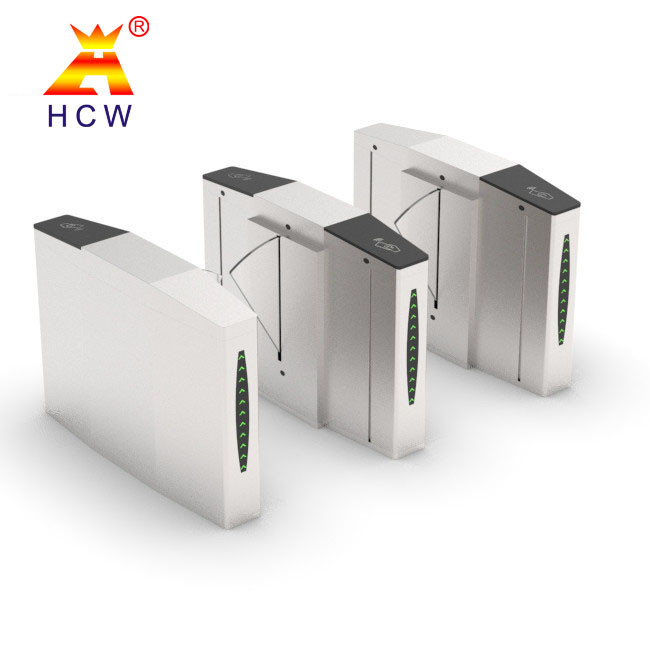

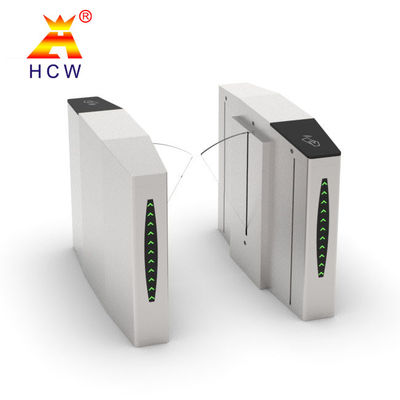

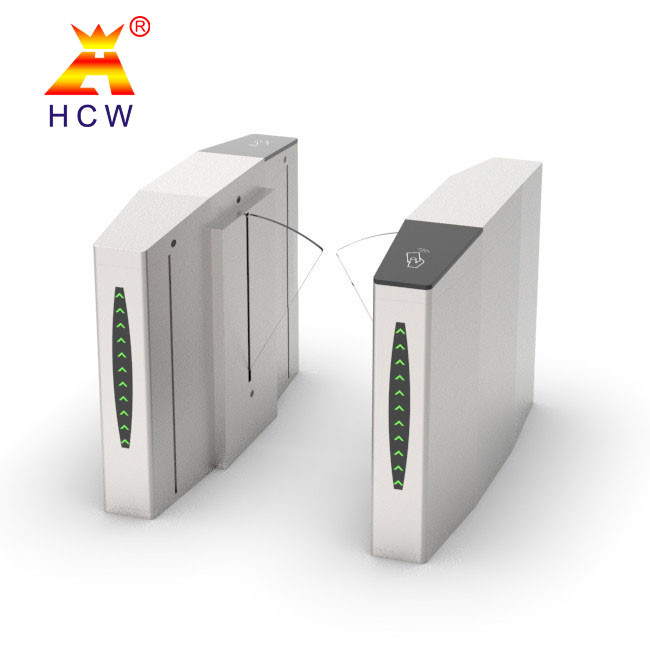

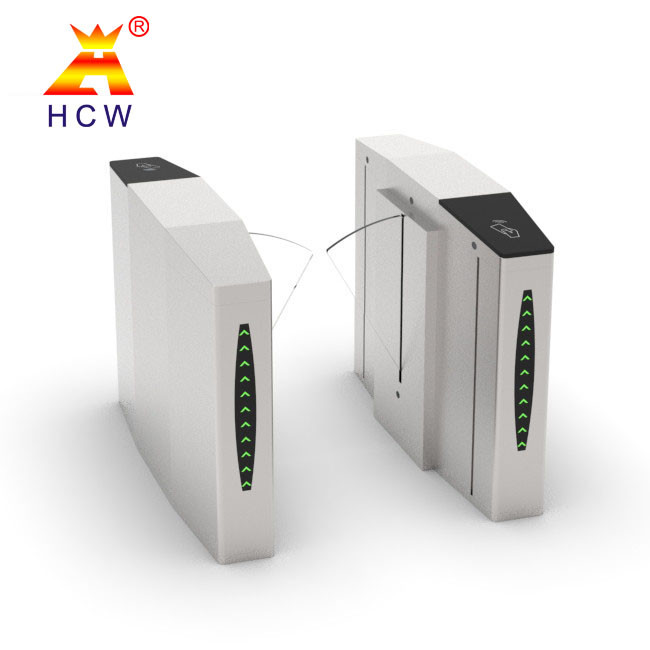

High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
Product introduction
A unique incomplete gear transmission system is adopted to make the gate lock and unlock at the zero position more accurate and reliable.There are a variety of working modes to choose from, you can read the card in both directions, or you can read the card while reading the card in the other direction, and the driver's working mode can be set through the supporting software
When the power is cut off,the door wing automatically retracts into the environment,and it is in an unobstructed state at any time,and personnel can pass freely to prevent panic.
Flap turnstile, one type of the access management equipment, is mainly used for pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian high frequency access mangment equipment,organically integrating machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination .
Parameter
| Product model | CW507 |
| Chassis size | 1400*300*990mm |
| Motor | DC 40W |
| Rated power | 70W |
| Channel width | 600mm |
| Infrared | 4 pairs |
| Door wing material | 15mm plexiglass wing door |
| Operation speed | 30~40 people/minute |
| Trouble-free running times | 5 million times |
Advantages
1.Unauthorized personnel cannot pass through, and an audible and visual buzzer will sound when breaking in.
2.It has an automatic reset function. After opening the door, if there is no passage within the specified time, the system will automatically cancel the user's permission for this passage, and the passage time can be set.
3.When the power is off, the swing arm automatically opens the chassis and the passage is unobstructed, allowing people to pass freely to prevent panic.
4.Normally open and normally closed modes can be flexibly selected, allowing two-way traffic. The door wing opening and closing speed can also be set according to the flow of people to improve equipment work efficiency.
