Face Recognition Swing Barrier Turnstile Entry Systems 30-45 Person / Min

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW418
Minimum Order Quantity 2
Price USD550~750 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Housing Size 200*185*1000mm Normal Life Span 5-8 Million Times
Transit Speed 30-45 Person/min Flap Opening/closing Time 0.7 S
Operating Temperature -25 ~ +70℃ Housing Thickness 2.0 Mm
Power Supply AC100-240V Passing Direction Single Directional / Bi-directional
High Light

Face Recognition Swing Barrier Turnstile


30 Person / Min Swing Barrier Turnstile


45 Person / Min turnstile entry systems

Leave a Message
Product Description

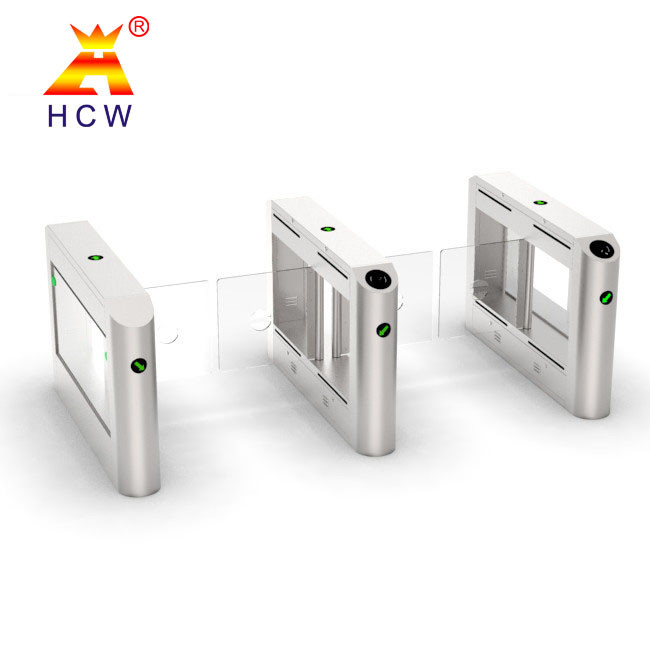

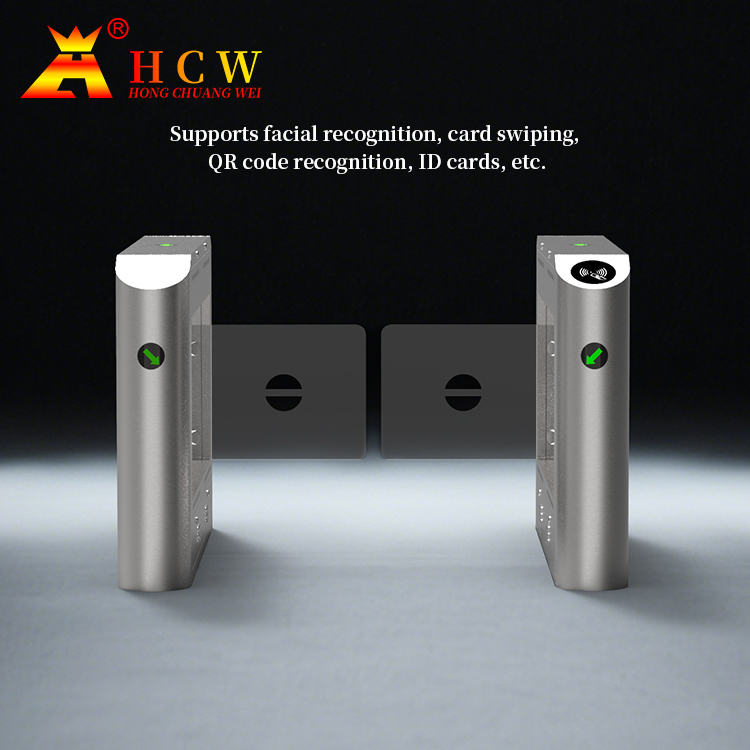

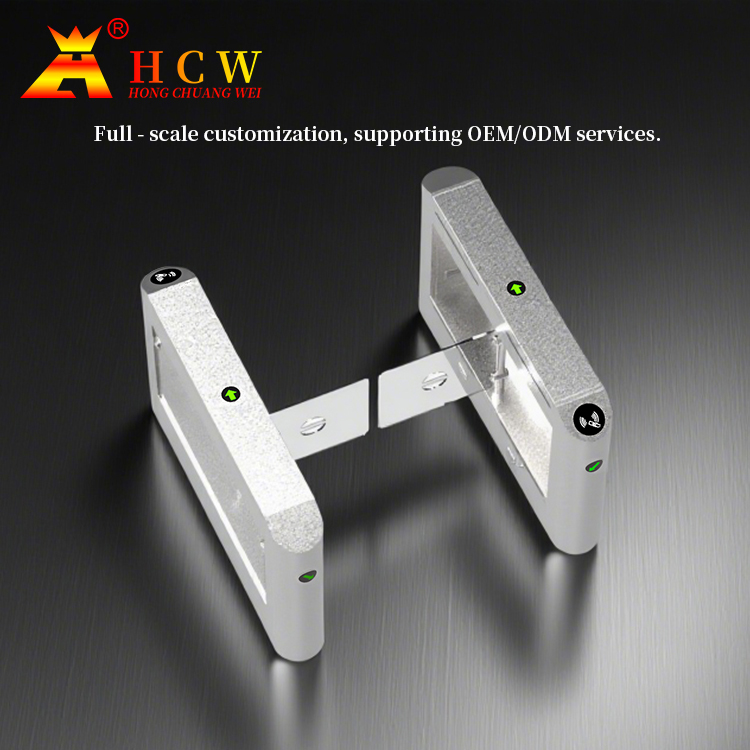

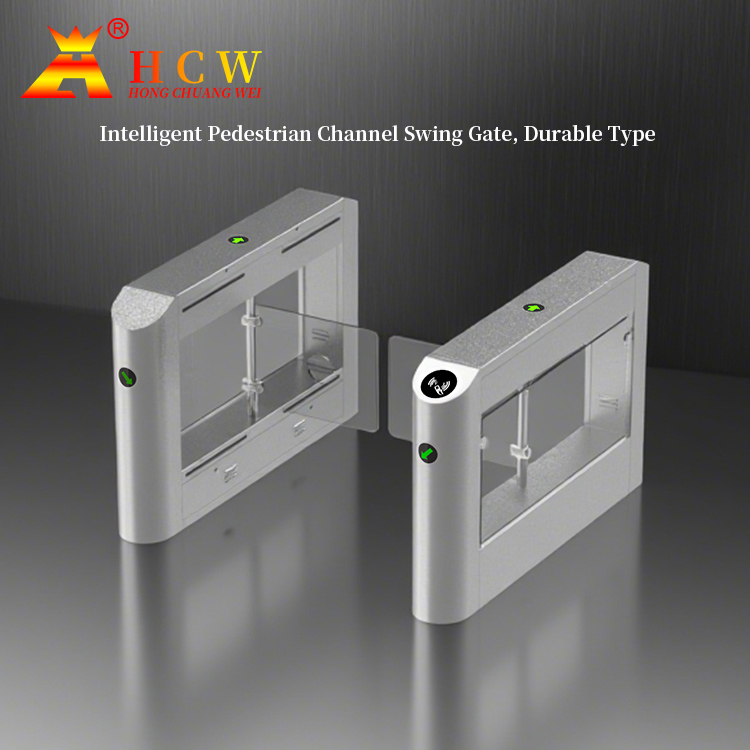

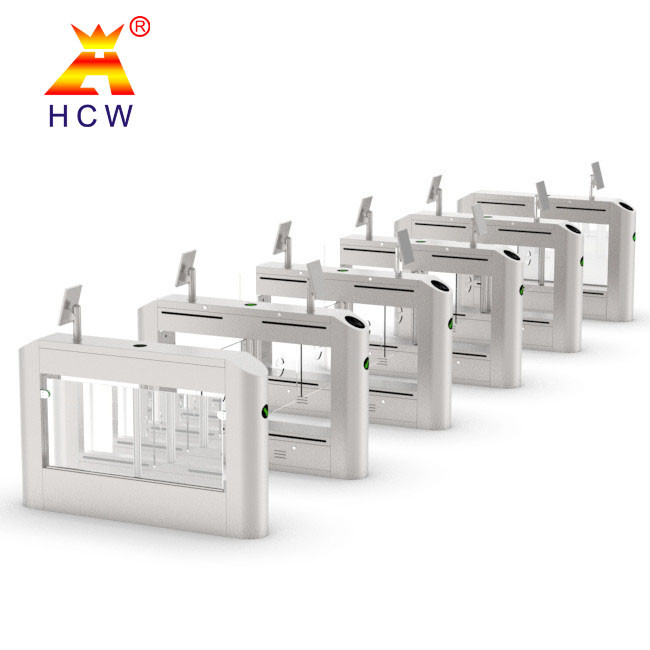

Security Swing Door Face Recognition Access System Swing Gate Barrier


Swing tursntile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies. By configuring a variety of different reading and writing equipment, adopting reliable safety protection devices, real-time alarm system and direction indicating interface, the intelligent control and management of the channel can be realized together in coordination.


Glass swing Turnstiles have clear bidirectional motorized barrier panels and a stylish architectural design that enhances any access control installation.
High security with optional sensor quantity, and dual swinging glass barriers available in multiple heights
Small footprint as the sleekest pedestal in the Glassgate line, with glass barrier in four heights.
Offers maximum lane widths for wheelchair access with advanced “sidegating” technology.


Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay

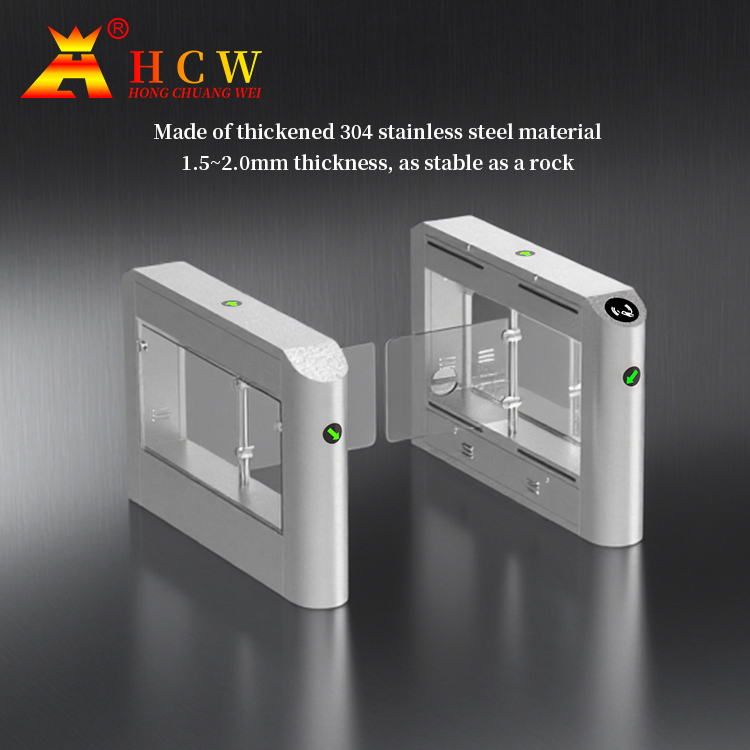

Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA
