Automatic Swing Barrier Turnstile Pedestrian Gate 1.5mm Thickness Stainless Steel

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW404
Minimum Order Quantity 2
Price USD300~500 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Life Time 5 Millions Operating Weight 45kg
Communication Port RS485/RS232 Communication Dimension 1500*100*1000
Thickness 1.5mm Usage Subway Station Mall
Power Supply AC100-240V Passing Direction Single Directional / Bi-directional
High Light

1.5mm Pedestrian Turnstile Gate

,

Manual Swing Pedestrian Turnstile Gate

,

1.5mm optical swing turnstile

Leave a Message
Product Description

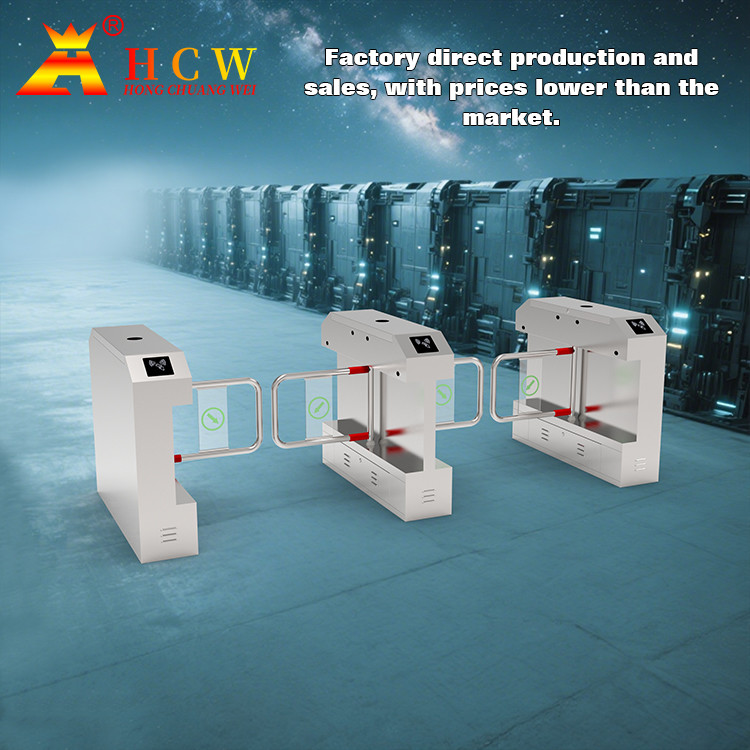

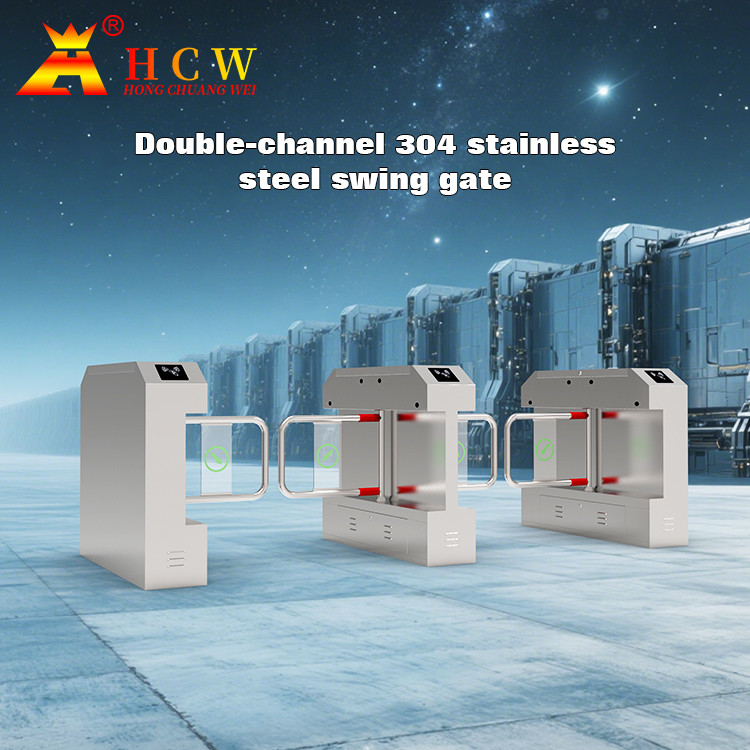

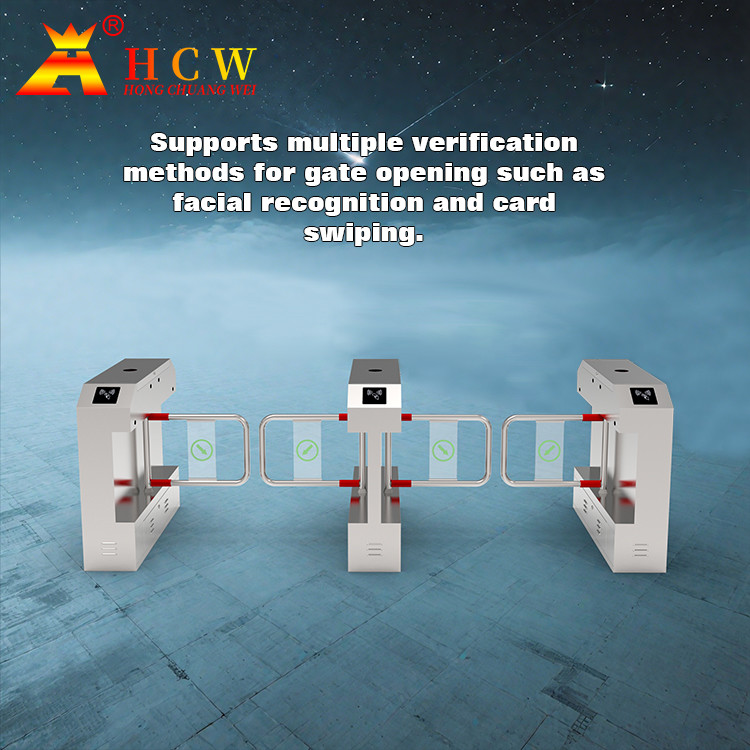

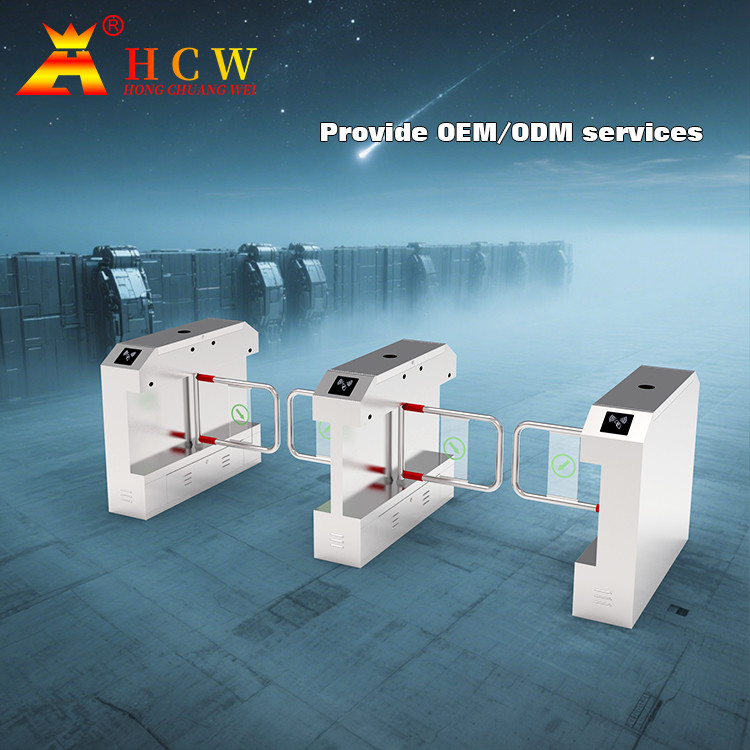

Automatic Swing Barrier Turnstile Pedestrian Gate 1.5mm Thickness Stainless Steel



Swing tursntile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies. By configuring a variety of different reading and writing equipment, adopting reliable safety protection devices, real-time alarm system and direction indicating interface, the intelligent control and management of the channel can be realized together in coordination.



1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.



Channel width 600mm-1100mm
Swing arm length outside the chassis ≤51cm
Opening speed 0.5 seconds
Number of people passing 40 people/minute
Working environment -40°C~80°C
Relative humidity ≤90%, no condensation
Gate opening signal relay
Cabinet material 304 stainless steel
Box thickness 1.5mm
Drive current >10mA
