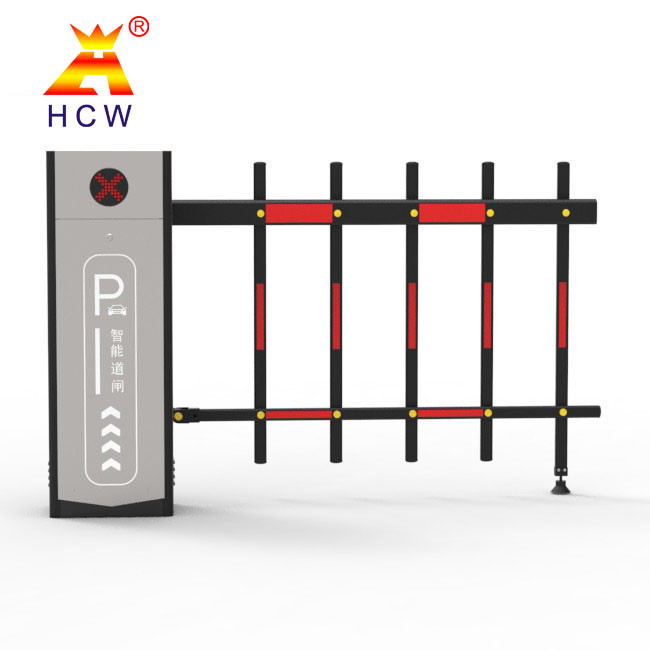

160W Fence arm electric vehicle barrier gate 60kg with LED Light

Place of Origin Shenzhn,China
Brand Name Hongchuangwei
Certification CE
Model Number KM03
Minimum Order Quantity 10 piece
Price USD 350-400 per piece
Packaging Details wood case
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Galvanized Plate Weight 60kg
Mian Board TCP/IP Size 460*315*1200 Mm
Motor Brushless DC Motor Power 160W
Take-off Time 6s-9s
High Light

60kg Vehicle Barrier Gate


160W Vehicle Barrier Gate


160W electric barrier gate

Leave a Message
Product Description

High quality LED light fence boom barrier gate for community gate



The medium-sized airborne gate four-lane barrier (CW-KM03) is a new type of barrier barrier launched by Hongchuangwei.It adopts digital control technology to monitor the entire process of barrier barrier operation and realize intelligent and simple barrier barrier operation management.The wireless remote control can be used for lifting, lowering and stopping or manual button operation.The barrier movement adopts a specially designed one-piece movement.




1.- The traffic barrier is widely used for the facilities of parking, traffic or toll system.

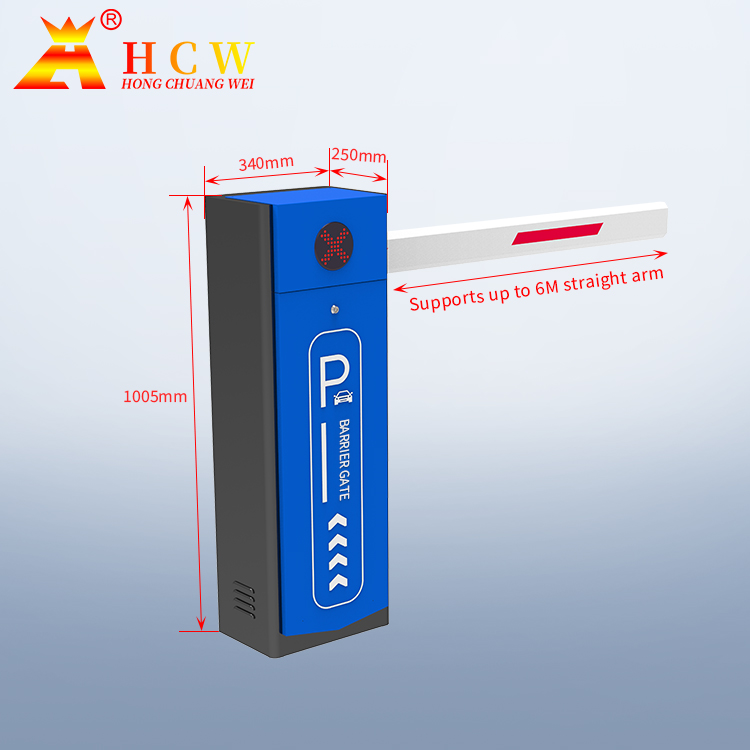

2.- Arms can be chosen from 3 meters to 6 meters.

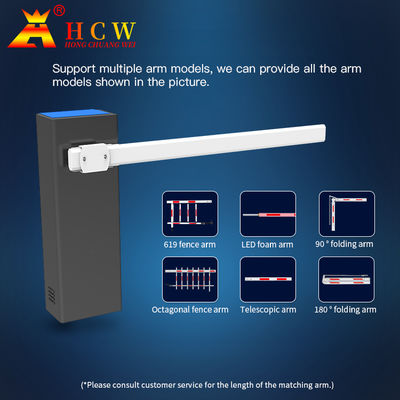

3.- This type of barrier could match with direct boom( pole), fold boom Or fence boom..

4.- Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.

5.- All the process is soft without any noise and shaking.

6.- This barrier gate has many input terminals for photocell,Airwave switch,loop detector,back-up battery(for DC Motor),toll gate system and output terminals for lamp.

7.- Housing color: yellow,red ,blue,orange,white (optional)

8.- Boom arm direction can be chosen leftward to rightward.

9.- Auto warming up,suitable for cold environment.

10- Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.


Chassis 1
Movement (installed in the case) 1 set
Main control system (installed in the case) 1 set
Hand-made remote control 2 pcs
keys 4
Manual button 1
Wiring diagram 1
Product identification card 1
Manual 1
