RFID Automatic Car Park Barrier System IP55 Electric Barrier Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238
Minimum Order Quantity 10 piece
Price USD 180-230 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Cabinet Thickness 2mm
Voltage 220V/50Hz (110V Is Optional) Water Proof IP55
Barrier Arm Length Max 6 Meters, Default 3 Meters Working Temperature -35℃~+75℃
Protection Class Of Parking Barrier Gate IP54
High Light

RFID Automatic Car Park Barrier System

,

IP55 Automatic Car Park Barrier System

,

RFID electric barrier gate

Leave a Message
Product Description

Automatic Gate Arm rfid Parking Boom Barrier for Remote Control





We are a modern security comprehensive national high-tech enterprise integrating R&D,production,sales and service.We are the most professional one-stop supply chain supplier and service provider of parking lot equipment and pedestrian access equipment in China.The company has Passed IS09001 quality management system certification.We have established advanced automated spraying production lines, automated robotic processing production lines,sheet metal processing production lines,machine processing production lines,and equipment assembly production lines.

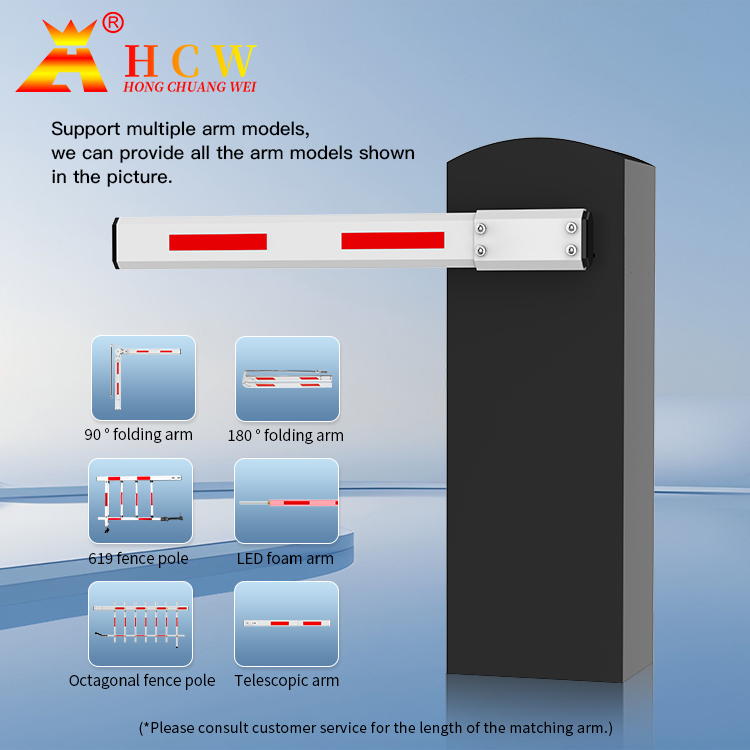

1. Beam length: <=6m

2. Opening (Closing) time:3-5s

3. Center height: 0.83m

4. Machine core working temperature: -40 degrees to +75 degrees

5. Electric working temperature: -40 degrees to +75 degrees

6.Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7.Rated power: 120W

8.Relative humidity: <=90%

9.Remote control distance: <=30m

10.Net weight: (arm not included)75KGS



Take-off and landing time 1.5S 3S 6S
Working temperature -25℃~+75℃
Working humidity ≤90%, no condensation
Power supply AC 220V/50HZ
Fuse specification φ5×20 5A
Power output DC 12V ≤0.2A
Fall limit output dry contact signal, normally open
Ceiling output dry contact signal, normally open
Receiver working voltage DC 5V
Encoder working voltage DC 5V
Operating voltage of limit switch DC 5V
