DC140W road gate barrier High Speed Rising Arm Barrier IP54

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238
Minimum Order Quantity 10 piece
Price USD 180-230 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

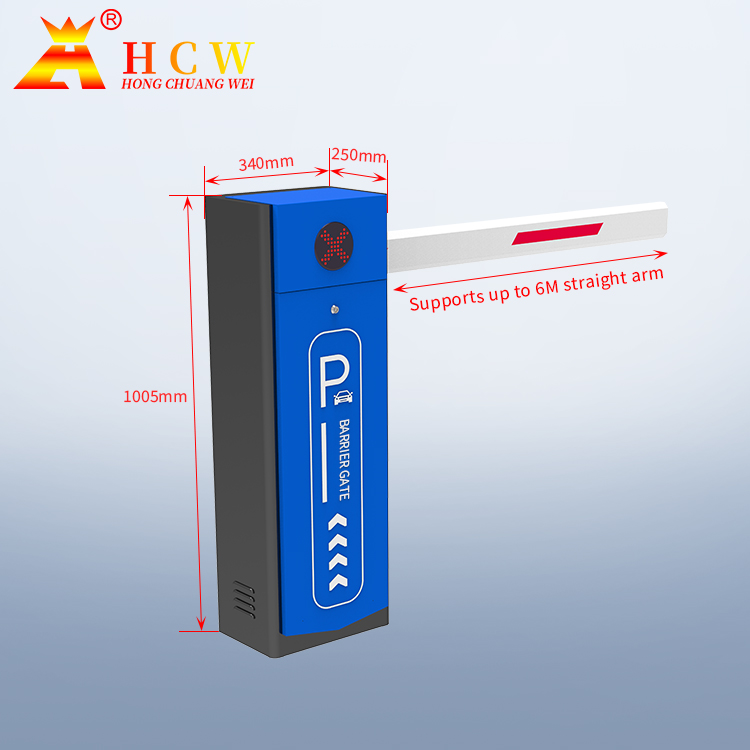

Material Carbon Steel Size 340*300*1000(mm)
Voltage 220V±10%, 110V±10% Motor Rate DC140W
Barrier Arm Length Max 6 Meters, Default 3 Meters Working Temperature -35℃~+75℃
Protection IP54Class Of Parking Barrier Gate IP54
High Light

IP54 road gate barrier

,

DC140W road gate barrier

,

DC140W rising arm barrier

Leave a Message
Product Description

Boom Barrier Gate System High Speed Barrier Gate For Car Parking Management





Automatic Barrier Gate for Parking Lots provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle especially at apartment,for parking lots with high traffic flow such as toll gate,shopping center,exhibition center,hospitals, airports etc.

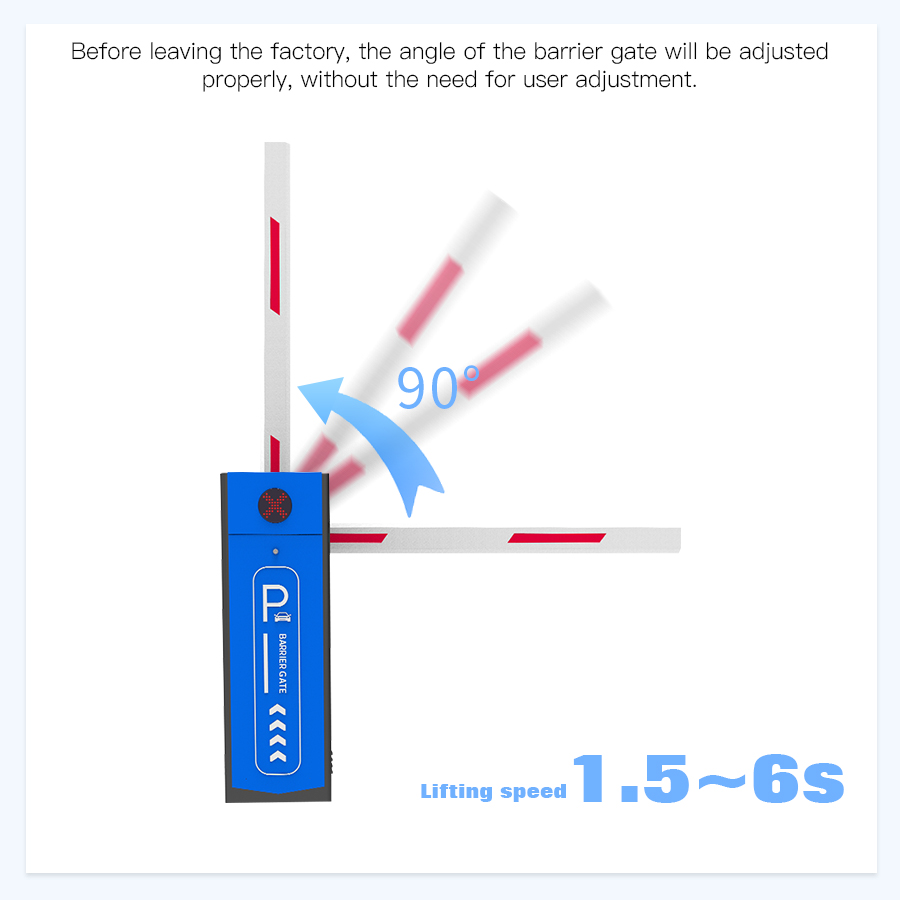

1. The speed can be ajusted from 1.2S-6S
2. Buffering speed.The pole will slow down to before positioning.It makes the rod run more stable and vibration amplitude smaller.Long life;
3. Rebounce.When the pole falls into the obstacle,it will automatically rebound.No additional pressure sensors or ultrasound are needed.
4. Horizontal position adjustment.This one can adjust the horizontal angle and the vertical angle in the main board to calibrate the position
    which is totally different with others
5. It can be lifted or dropped manually when power failure.



Take-off and landing time 1.5S 3S 6S
Working temperature -25℃~+75℃
Working humidity ≤90%, no condensation
Power supply AC 220V/50HZ
Fuse specification φ5×20 5A
Power output DC 12V ≤0.2A
Fall limit output dry contact signal, normally open
Ceiling output dry contact signal, normally open
Receiver working voltage DC 5V
Encoder working voltage DC 5V
Operating voltage of limit switch DC 5V
