5 million life time DC brushless motor arm speed adjustable pole barrier gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238-1
Minimum Order Quantity 10 piece
Price USD 200-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 200 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name DC Barrier Gate Motor Brushless
Working Voltage 24V Arm Speed 1.5-6s
Boom Length 2-6m Arm Direction Left,right

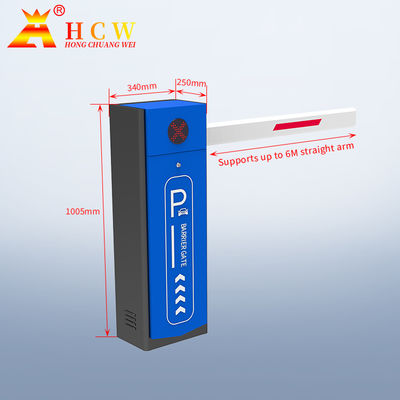

IP Grade IP54 Size Of Housing 340*250*1005mm
High Light

DC24V Pole Barrier Gate


IP54 Pole Barrier Gate


DC24V magnetic boom barrier

Leave a Message
Product Description

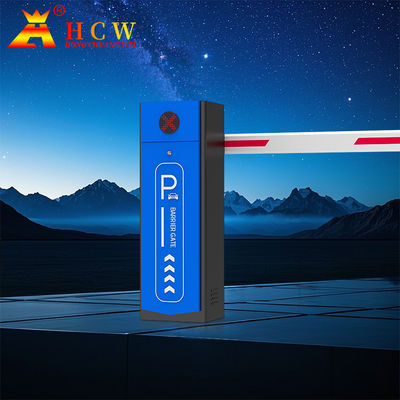

5 million life time DC brushless motor arm speed adjustable pole barrier gate



Product Introduction

The fifth-generation DC brushless movement barrier gate (CW238-1) is a new type barrier gate launched by Hongpai. It adopts digital control technology to monitor the entire process of the barrier gate operation, and realizes the intelligent and simple barrier gate operation management. The wireless remote control can be used for lifting, lowering and stopping or manual button operation. The barrier movement adopts a specially designed one-piece movement. The frame, reducer, and transmission mechanism are integrated, which minimizes the vibration of the machine body, greatly improves the operation accuracy of the barrier, and guarantees the safe and reliable operation of the barrier.

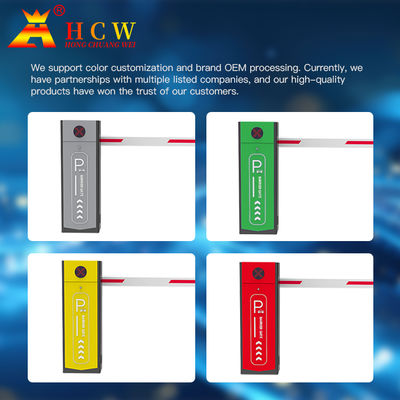

At the same time, it can adapt to the extension spring to respond to the rod length adjustment,which has the characteristics of high safety, intelligence,modernization,and humanization. he surface of the chassis has an exquisite appearance and color matching.The electrostatic dust high-temperature baking paint (180 degrees ~ 250 degrees) is anti-corrosive, anti-fading,anti-falling, easy to maintain,and the surface texture is delicate,beautiful and generous,and it will last forever.The barrier can be equipped with multiple anti-smashing systems,ground sensing,pressure waves,infrared and other anti-smashing functions.



Product model


Input voltage


Working humidity


Operating temperature

-40℃ to +80℃

Fixed direction Interchangeable left and right

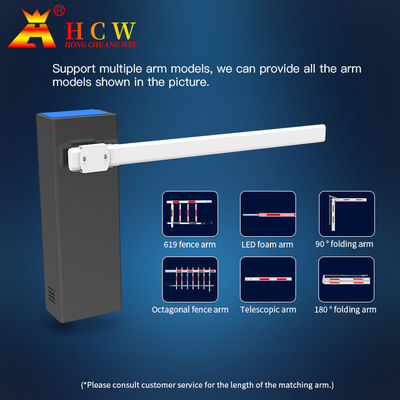

Length of pole ≤ 6m straight pole, ≤ 6m curved pole, ≤ 5.0m two fences, ≤ 4.0m three fences



Motor Power 150W
Rise and fall time 1.5 seconds movement (1.5 seconds ~ 3 seconds adjustable) Movement 3 seconds (4 seconds ~ 6 seconds adjustable)
Anti-smashing car function Rebound to open the gate in case of resistance
Input control signal Input control signal





1.What are the electrical requirements for your barrier gate?

We are using 110-240V automatic switching power supply. So it is used worldwide

2.What type of base is required for installation?

Barrier gate require concrete or a strong base to install. The complete installation information includes the basic specifications of each revolving door model.

3.Can you provide a detailed floor plan of the gate model?

We are happy to send detailed drawings of all the revolving doors we carry by email or fax. Just contact us to provide the brand and model you are interested in, and we will send you the detailed drawings.

4.What is the warranty of your product?

All our products provide at least one year of warranty and long-lasting maintenance and repair support.

5.What is your packaging method?

First, we will pack our goods with protective film or pearl cotton. Then we will put it in a neutral carton. Third, we pack it in standard export wooden boxes to protect the goods perfectly.

6.What are your delivery terms?


7.What if I need customized items?

We can make samples or technical drawings for you. We can provide OEM and ODM services.

8.What is your sample policy?

If we have stock, we can provide samples, but the customer must pay the sample fee and courier fee.

9.Do you test all the goods before shipping?

Yes, we conduct 100% testing before delivery. We will take a test video and send it to you for confirmation.
