Automatic Security Intelligent Barrier Gate AC220V 350X282X1000mm

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238
Minimum Order Quantity 10 piece
Price USD 180-230 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Running Speed Starting Rod 2-6S Adjustable Boom Direction Exchangeable

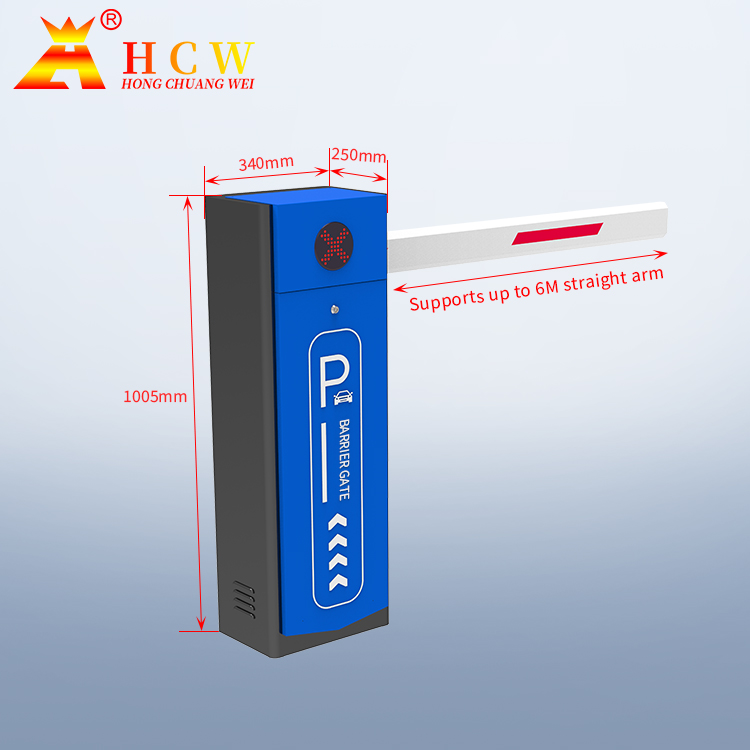

Boom Dimension 45*80mm Dimension 350X282X1000mm
Pole Length ≤ 6 Meters Straight Rod Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10% Remote Control Distance >=30m
High Light

1000mm Automatic intelligent barrier gate

,

AC220V intelligent barrier gate

,

AC220V security barrier gate

Leave a Message
Product Description

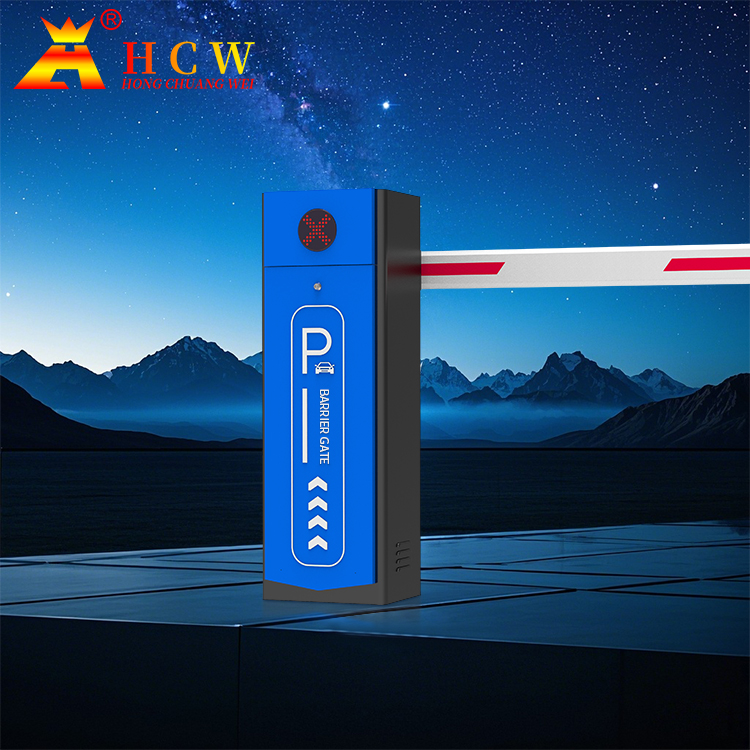

Original factory made automatic parking vehicle barrier gate





Barrier gates have the advanced design,such as humanization clutch device,balance device(e.g),which makes our barrier gate work more

safely and conveniently.This barrier gate is suitable for indoor as well as outdoor parking area,Parking lots,toll gate,goods yard,railway crossing, commercial premises,apartment block access shopping malls,hospitals,stadiums,business centers,etc.



Product performance
1. Special rotating structure,no gear,no belt rotation,no maintenance,stable use,long life
2. The specially designed balance structure enables the brake lever to start slowly,run quickly,and stop slowly.
3. The jitter caused by the operation of the brake lever is eliminated.
4. The brake lever runs permanently at 90 degrees,and the 360-degree operation accident occurs after troubleshooting.
5. Specially designed low-speed aluminum housing motor,gearbox one-piece design,low noise,fast heat dissipation.
6. The drive mechanism is designed with an intelligent overheating protection system to control the temperature rise of the motor under frequent use.Make the motor not easy to burn out.



Take-off and landing time 1.5S 3S 6S
Working temperature -25℃~+75℃
Working humidity ≤90%, no condensation
Power supply AC 220V/50HZ
Fuse specification φ5×20 5A
Power output DC 12V ≤0.2A
Fall limit output dry contact signal, normally open
Ceiling output dry contact signal, normally open
Receiver working voltage DC 5V
Encoder working voltage DC 5V
Operating voltage of limit switch DC 5V
