Automatic Pole Barrier Gate Car Parking Lot Swing Gate AC220V/110V

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238
Minimum Order Quantity 10 piece
Price USD 180-230 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Running Speed Starting Rod 2-6S Adjustable Boom Direction Exchangeable

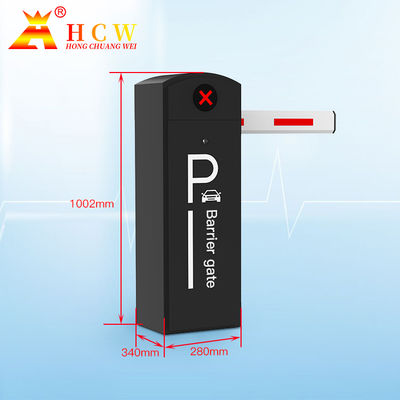

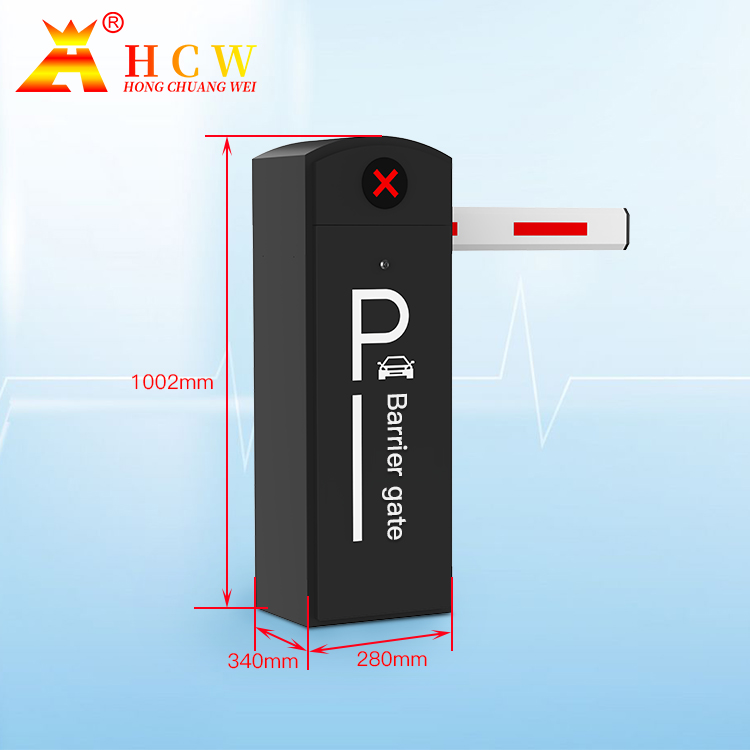

Box Thickness Foot Thickness 1.5mm Dimension 350X282X1000mm
Pole Length ≤ 6 Meters Straight Rod Working Temperature -40 Degrees To +75 Degrees
Rated Voltage AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz Remote Control Distance >=30m
High Light

Automatic Pole Barrier Gate

,

AC220V Pole Barrier Gate

,

AC110V parking lot swing gate

Leave a Message
Product Description

AC220V/110V Automatic Car Parking Boom Barrier Gate For Parking Lot





Auto-closing

Support the infrared photocell for anti-bumping function (optional)

Support external and internal vehicle loop detector (optional)

Traffic light interface (AC220V, can support lamp with 40W)

Wire control (switch signal)/Remote control (418MHZ)

Rs485 Communication module (optional)

Open,close control interface for parking system

Provide limit state signal to parking system



Product performance
1. Special rotating structure,no gear, no belt rotation,no maintenance,stable use,long life
2. The specially designed balance structure enables the brake lever to start slowly,run quickly,and stop slowly.
3. The jitter caused by the operation of the brake lever is eliminated.
4. The brake lever runs permanently at 90 degrees, and the 360-degree operation accident occurs after troubleshooting.
5. Specially designed low-speed aluminum housing motor, gearbox one-piece design, low noise, fast heat dissipation.
6. The drive mechanism is designed with an intelligent overheating protection system to control the temperature rise of the motor under frequent        use.Make the motor not easy to burn out.



Take-off and landing time 1.5S 3S 6S
Working temperature -25℃~+75℃
Working humidity ≤90%, no condensation
Power supply AC 220V/50HZ
Fuse specification φ5×20 5A
Power output DC 12V ≤0.2A
Fall limit output dry contact signal, normally open
Ceiling output dry contact signal, normally open
Receiver working voltage DC 5V
Encoder working voltage DC 5V
Operating voltage of limit switch DC 5V
